Plot Open Of Day

• 02/21/2023 at 5:28 PM #210051
  gadetrading

  Hello,
  I have borrowed some code from another post (https://www.prorealcode.com/topic/high-low-close-yesterday-premarket/)
  I use only the part to plot yesterdays high, low and close and have added text to describe the levels.

  My question is, can someone add the code to plot the of the open of the current day? I want the segment to look exactly like the others, with the segment ending at the current bar.

  Help is very appreciated.

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE PrecCL = close ONCE HH = high ONCE LL = low ONCE CL = close If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN PrevHH = HH PrevLL = LL PrevCL = CL//close[1] LL = low HH = high CL = close BarID = BarIndex ENDIF IF (OpenTime >= 093000) AND (OpenTime <= 161500) THEN HH = max(HH,high) LL = min(LL,low) CL = close ENDIF DrawText("HoY",barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY",barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) DrawText("CoY",barindex-2,PrevCL+1.5*pipsize,SansSerif,Bold) coloured(255,0,0,75) // DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75) style(dottedline) //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75) style(dottedline) //Blue DrawSegment(BarID,PrevCL,BarIndex,PrevCL) coloured(255,0,0,75) style(dottedline) //Red // //DrawSegment(pmBarID,pmHH,BarIndex,pmHH) coloured(0,178,238,255) style(dottedline,3) //Cyan //DrawSegment(pmBarID,pmLL,BarIndex,pmLL) coloured(0,178,238,255) style(dottedline,3) //Cyan RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE PrecCL = close ONCE HH     = high ONCE LL     = low ONCE CL     = close If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN PrevHH = HH PrevLL = LL PrevCL = CL//close[1] LL     = low HH     = high CL     = close BarID  = BarIndex ENDIF IF (OpenTime >= 093000) AND (OpenTime <= 161500) THEN HH = max(HH,high) LL = min(LL,low) CL = close ENDIF DrawText("HoY",barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY",barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) DrawText("CoY",barindex-2,PrevCL+1.5*pipsize,SansSerif,Bold) coloured(255,0,0,75) // DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75)   style(dottedline)       //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75)   style(dottedline)       //Blue DrawSegment(BarID,PrevCL,BarIndex,PrevCL) coloured(255,0,0,75)   style(dottedline)       //Red // //DrawSegment(pmBarID,pmHH,BarIndex,pmHH)   coloured(0,178,238,255) style(dottedline,3) //Cyan //DrawSegment(pmBarID,pmLL,BarIndex,pmLL)   coloured(0,178,238,255) style(dottedline,3) //Cyan RETURN



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/21/2023 at 5:42 PM #210067
  gadetrading

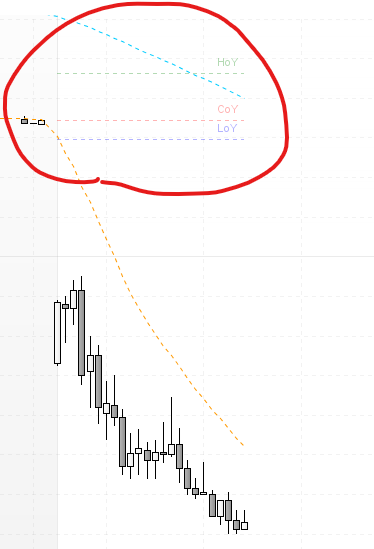

  As a last request, this is only if possible and straightforward to do: plotting the high, low and open of the last week like the segments in the screenshot.
  Thank you.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/21/2023 at 5:54 PM #210073
  gadetrading

  gadetrading wrote:

  As a last request, this is only if possible and straightforward to do: plotting the high, low and open of the last week like the segments in the screenshot.

  Thank you.

  Sorry, I meant to say high and low of last week and open of the current week.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/21/2023 at 6:02 PM #210080
  robertogozzi

  This is the one with the addition of today’s OPEN:

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE PrecCL = close ONCE HH = high ONCE LL = low ONCE CL = close If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN PrevHH = HH PrevLL = LL PrevCL = CL//close[1] LL = low HH = high CL = close OP = open BarID = BarIndex ENDIF IF (OpenTime >= 093000) AND (OpenTime <= 161500) THEN HH = max(HH,high) LL = min(LL,low) CL = close ENDIF DrawText("Open",barindex-2,OP+1.5*pipsize, SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) DrawText("CoY", barindex-2,PrevCL+1.5*pipsize,SansSerif,Bold) coloured(255,0,0,75) // DrawSegment(BarID,OP, BarIndex,OP) coloured("Fuchsia") style(dottedline) //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75) style(dottedline) //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75) style(dottedline) //Blue DrawSegment(BarID,PrevCL,BarIndex,PrevCL) coloured(255,0,0,75) style(dottedline) //Red // //DrawSegment(pmBarID,pmHH,BarIndex,pmHH) coloured(0,178,238,255) style(dottedline,3) //Cyan //DrawSegment(pmBarID,pmLL,BarIndex,pmLL) coloured(0,178,238,255) style(dottedline,3) //Cyan RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE PrecCL = close ONCE HH     = high ONCE LL     = low ONCE CL     = close If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN PrevHH = HH PrevLL = LL PrevCL = CL//close[1] LL     = low HH     = high CL     = close OP     = open BarID  = BarIndex ENDIF IF (OpenTime >= 093000) AND (OpenTime <= 161500) THEN HH = max(HH,high) LL = min(LL,low) CL = close ENDIF DrawText("Open",barindex-2,OP+1.5*pipsize,    SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) DrawText("CoY", barindex-2,PrevCL+1.5*pipsize,SansSerif,Bold) coloured(255,0,0,75) // DrawSegment(BarID,OP,    BarIndex,OP)     coloured("Fuchsia")    style(dottedline)       //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75)   style(dottedline)       //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75)   style(dottedline)       //Blue DrawSegment(BarID,PrevCL,BarIndex,PrevCL) coloured(255,0,0,75)   style(dottedline)       //Red // //DrawSegment(pmBarID,pmHH,BarIndex,pmHH)   coloured(0,178,238,255) style(dottedline,3) //Cyan //DrawSegment(pmBarID,pmLL,BarIndex,pmLL)   coloured(0,178,238,255) style(dottedline,3) //Cyan RETURN



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17143

  Been thanked: 4032 times
  02/21/2023 at 6:06 PM #210083
  robertogozzi

  This is the one with the weekly data, just add both on your chart:

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE HH = high ONCE LL = low If OpenDayOfWeek < OpenDayOfweek[1] THEN PrevHH = HH PrevLL = LL LL = low HH = high OP = open BarID = BarIndex ENDIF HH = max(HH,high) LL = min(LL,low) CL = close DrawText("Open",barindex-2,OP+1.5*pipsize, SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) // DrawSegment(BarID,OP, BarIndex,OP) coloured("Fuchsia") style(dottedline) //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75) style(dottedline) //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75) style(dottedline) //Blue RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE HH     = high ONCE LL     = low If OpenDayOfWeek < OpenDayOfweek[1] THEN PrevHH = HH PrevLL = LL LL     = low HH     = high OP     = open BarID  = BarIndex ENDIF HH = max(HH,high) LL = min(LL,low) CL = close DrawText("Open",barindex-2,OP+1.5*pipsize,    SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) // DrawSegment(BarID,OP,    BarIndex,OP)     coloured("Fuchsia")    style(dottedline)       //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75)   style(dottedline)       //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75)   style(dottedline)       //Blue RETURN



  1 user thanked author for this post.

  gadetrading



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17143

  Been thanked: 4032 times
  02/21/2023 at 7:35 PM #210092
  gadetrading

  Thank you very much @robertogozzi
  Is it possible to make the weekly line segments drawn at the current day only? Just like the other lines.

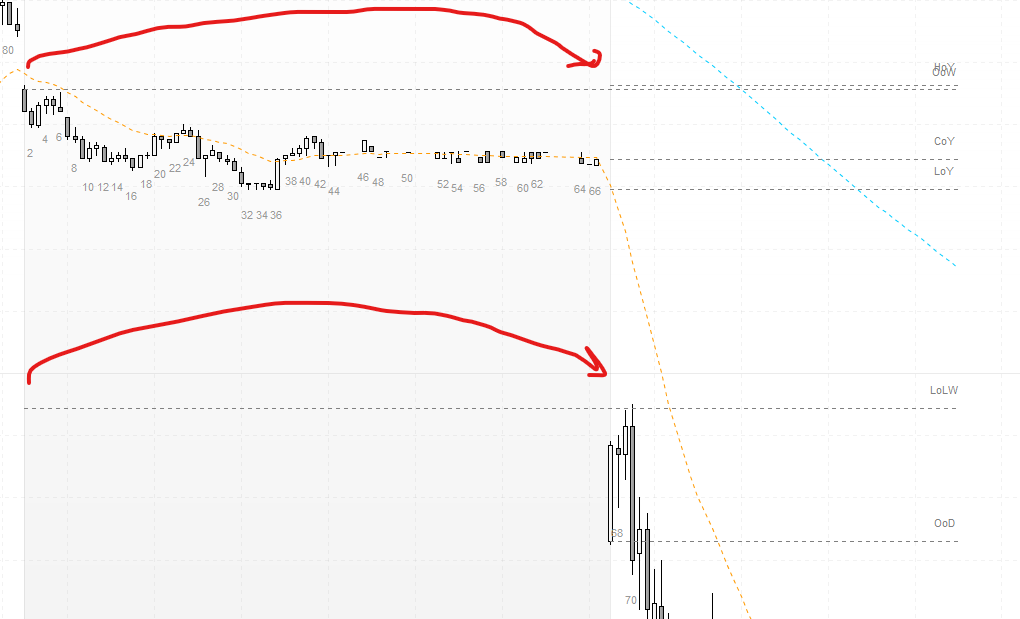

  See screenshot



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/23/2023 at 3:31 PM #210285
  robertogozzi

  There you go:

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE HH = high ONCE LL = low If OpenDayOfWeek < OpenDayOfweek[1] THEN PrevHH = HH PrevLL = LL LL = low HH = high OP = open BarID = BarIndex ELSE If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN BarID = BarIndex ENDIF ENDIF HH = max(HH,high) LL = min(LL,low) CL = close DrawText("Open",barindex-2,OP+1.5*pipsize, SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) // DrawSegment(BarID,OP, BarIndex,OP) coloured("Fuchsia") style(dottedline) //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75) style(dottedline) //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75) style(dottedline) //Blue RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

  DEFPARAM DrawOnLastBarOnly = true ONCE PrevHH = high ONCE PrevLL = low ONCE HH     = high ONCE LL     = low If OpenDayOfWeek < OpenDayOfweek[1] THEN    PrevHH = HH    PrevLL = LL    LL     = low    HH     = high    OP     = open    BarID  = BarIndex ELSE    If OpenTime = 000000 OR (OpenTime >= 000000 AND OpenTime < OpenTime[1])THEN       BarID  = BarIndex    ENDIF ENDIF HH = max(HH,high) LL = min(LL,low) CL = close DrawText("Open",barindex-2,OP+1.5*pipsize,    SansSerif,Bold) coloured("Fuchsia") DrawText("HoY", barindex-2,PrevHH+1.5*pipsize,SansSerif,Bold) coloured(0,128,0,75) DrawText("LoY", barindex-2,PrevLL+1.5*pipsize,SansSerif,Bold) coloured(0,0,255,75) // DrawSegment(BarID,OP,    BarIndex,OP)     coloured("Fuchsia")    style(dottedline)       //Fuchsia DrawSegment(BarID,PrevHH,BarIndex,PrevHH) coloured(0,128,0,75)   style(dottedline)       //Green DrawSegment(BarID,PrevLL,BarIndex,PrevLL) coloured(0,0,255,75)   style(dottedline)       //Blue RETURN



  1 user thanked author for this post.

  gadetrading



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17143

  Been thanked: 4032 times
