Plotting the previous day high/low on intraday chart

• 02/06/2023 at 8:35 AM #209192
  Tom.J

  Hello!

  With the great help from this forum I have the indicator below on my charts. Thanks!

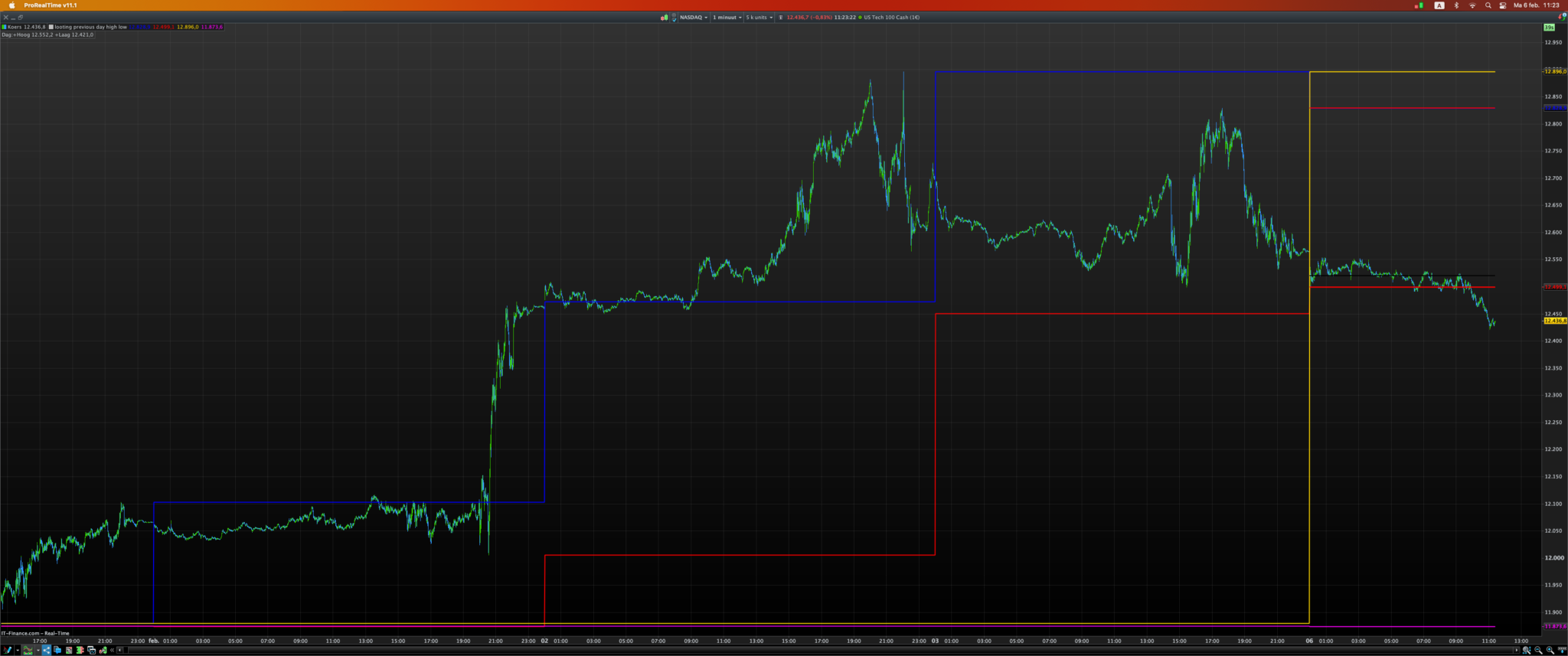

  But I realise I need some modification which I am struggling with. What I want is that the line of the previous high and low should be drawn (one single horisantal line not connected with the other days) on each day, not just the current day. Keeping in mind that the day in the intraday chart should be defined as midnight to midnight according to the set timezone.



  Anyone could help me with this?

  Thank you!



  DEFPARAM DrawOnLastBarOnly = True ONCE NYtime = 000000 ONCE CurO = open ONCE CurH = high ONCE PrevH = high ONCE CurL = low ONCE PrevL = low ONCE CurHw = high ONCE CurLw = low ONCE PrevHw = high ONCE PrevLw = low ONCE OdW = 0 IF OpenDayOfWeek < OpenDayOfWeek[1] THEN OdW = 1 ENDIF IF (OpenTime = NYtime) OR ((OpenTime > NYtime) AND (OpenTime[1] < NyTime)) THEN IF OdW = 1 THEN PrevHw= CurHw PrevLw= CurLw CurHw = high CurLw = low OdW = 0 ENDIF CurO = open PrevH = CurH PrevL = CurL CurH = high CurL = low Start = BarIndex ENDIF CurH = max(high,CurH) CurL = min(low,CurL) CurHw = max(high,CurHw) CurLw = min(low,CurLw) DrawSegment(Start,CurO,BarIndex,CurO) coloured("Black") style(Line,2) DrawSegment(start,PrevH,BarIndex,PrevH) coloured("red") style(Line,2) DrawSegment(start,PrevL,Barindex,PrevL) coloured("red") style(Line,2) RETURN PrevH coloured("Blue") style(Line,2) AS "Previous DAY high",PrevL coloured("Red") Style(Line,2) AS "Previous DAY low",PrevHw coloured("Gold") style(Line,2) AS "Previous WEEK high",PrevLw coloured("Fuchsia") Style(Line,2) AS "Previous WEEK low"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  DEFPARAM DrawOnLastBarOnly = True ONCE NYtime = 000000 ONCE CurO = open ONCE CurH = high ONCE PrevH = high ONCE CurL = low ONCE PrevL = low ONCE CurHw = high ONCE CurLw = low ONCE PrevHw = high ONCE PrevLw = low ONCE OdW = 0 IF OpenDayOfWeek < OpenDayOfWeek[1] THEN OdW = 1 ENDIF IF (OpenTime = NYtime) OR ((OpenTime > NYtime) AND (OpenTime[1] < NyTime)) THEN IF OdW = 1 THEN PrevHw= CurHw PrevLw= CurLw CurHw = high CurLw = low OdW = 0 ENDIF CurO = open PrevH = CurH PrevL = CurL CurH = high CurL = low Start = BarIndex ENDIF CurH = max(high,CurH) CurL = min(low,CurL) CurHw = max(high,CurHw) CurLw = min(low,CurLw) DrawSegment(Start,CurO,BarIndex,CurO) coloured("Black") style(Line,2) DrawSegment(start,PrevH,BarIndex,PrevH) coloured("red") style(Line,2) DrawSegment(start,PrevL,Barindex,PrevL) coloured("red") style(Line,2) RETURN PrevH coloured("Blue") style(Line,2) AS "Previous DAY high",PrevL coloured("Red") Style(Line,2) AS "Previous DAY low",PrevHw coloured("Gold") style(Line,2) AS "Previous WEEK high",PrevLw coloured("Fuchsia") Style(Line,2) AS "Previous WEEK low"









  Tom.J

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
  02/06/2023 at 11:28 AM #209218
  JS

  Hi Tom,

  When I use your indicator, the “previous high” and “previous low” are already drawn every day… (or do I not understand your question?)

  1 user thanked author for this post.

  Tom.J



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  02/06/2023 at 11:56 AM #209223
  JS

  By the way, a very good and effective indicator…



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  02/06/2023 at 12:11 PM #209225
  Tom.J

  Yes, sorry for the confusion. It does that, my mistake with setting it up.

  But is it possible to get rid of the connecting lines between the different days? I only want the horisontal lines.



  Tom.J

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
  02/06/2023 at 12:21 PM #209226
  JS

  Hi Tom,

  In its current form, that is not possible…

  Otherwise, you have to calculate the whole indicator differently using arrays…



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  02/06/2023 at 4:51 PM #209249
  pableitor

  Hi, I  used this trick with some indicator sometime ago and it worked:

  if opentime >=235900 and opentime <= 000100 then //if we work in the 1min TF alpha = 0 else alpha = 255 endif ..... return prevh coloured (0,0,255,alpha) //repeat with the rest of the lines

  1 2 3 4 5 6 7 8 9

  if opentime >=235900 and opentime <= 000100 then  //if we work in the 1min TF alpha = 0 else alpha = 255 endif   .....   return prevh coloured (0,0,255,alpha) //repeat with the rest of the lines

  As you see the trick is just zero the alpha (intensity of the color )  between the last and first candles of the day (235900 and 000100 in the 1 min TF) to hide the ugly vertical lines.





  1 user thanked author for this post.

  JS



  pableitor

  Participant

  Topics: 20

  Replies: 127

  Been thanked: 47 times
  02/06/2023 at 8:01 PM #209258
  pableitor

  below snippet is simple and works on all TF’s  😉

  alpha= 255 if opentime =000000 then alpha = 0 endif ..... return prevh coloured ("blue",alpha) //repeat with the rest of the lines

  1 2 3 4 5 6 7 8

  alpha= 255 if opentime =000000 then   alpha = 0 endif ..... return prevh coloured ("blue",alpha) //repeat with the rest of the lines





  pableitor

  Participant

  Topics: 20

  Replies: 127

  Been thanked: 47 times
