Horizontal Line On Previous Candle High & Low

• 04/05/2024 at 3:21 PM #231109
  Andre36

  Hi all! May I ask someone to kindly code me an indicator that shows a horizontal line from the previous daily candle high and low. I’ve seen various codes for highs and lows of daily timeframes but I’m after a horizontal line from the previous daily candle itself (not the timeframe) to the current day

  I’ve been looking through the forum to find what I thought must be a request or feature by someone but…nope!

  Can someone help with this for me please?

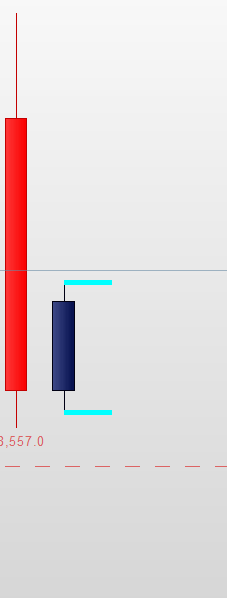

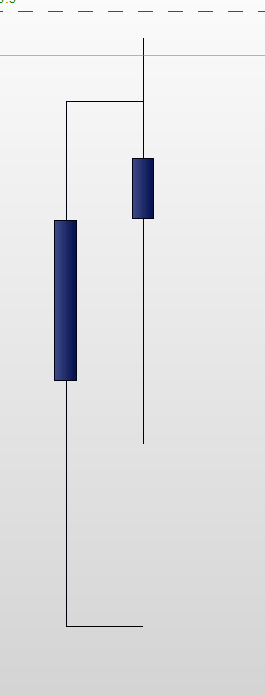

  I’ve attached a screenshot of what I’m trying to describe.





  Andre36

  Participant

  Topics: 7

  Replies: 30

  Been thanked: 11 times
  04/05/2024 at 3:58 PM #231115
  robertogozzi

  There you go:

  DEFPARAM DrawOnLastBarOnly = true Timeframe(Daily,UpdateOnClose) lowD = low highD = high // timeframe(default) ONCE StartBAR = BarIndex IF (lowD <> lowD[1]) OR (highD <> highD[1]) THEN StartBAR = BarIndex ENDIF DrawSegment(StartBAR,highD,BarIndex + 1,highD) coloured("Cyan") style(line,4) DrawSegment(StartBAR,lowD, BarIndex + 1,lowD) coloured("Cyan") style(line,4) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13

  DEFPARAM DrawOnLastBarOnly = true Timeframe(Daily,UpdateOnClose) lowD  = low highD = high // timeframe(default) ONCE StartBAR = BarIndex IF (lowD <> lowD[1]) OR (highD <> highD[1]) THEN    StartBAR = BarIndex ENDIF DrawSegment(StartBAR,highD,BarIndex + 1,highD) coloured("Cyan") style(line,4) DrawSegment(StartBAR,lowD, BarIndex + 1,lowD)  coloured("Cyan") style(line,4) RETURN



  1 user thanked author for this post.

  Andre36



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17378

  Been thanked: 4177 times
  04/05/2024 at 4:25 PM #231122
  Andre36

  robertogozzi wrote:

  There you go:

  Press CTRL+C to Copy, CTRL+V to Paste

  DEFPARAM DrawOnLastBarOnly = true<br /> Timeframe(Daily,UpdateOnClose)<br /> lowD = low<br /> highD = high<br /> //<br /> timeframe(default)<br /> ONCE StartBAR = BarIndex<br /> IF (lowD <> lowD[1]) OR (highD <> highD[1]) THEN<br /> StartBAR = BarIndex<br /> ENDIF<br /> DrawSegment(StartBAR,highD,BarIndex + 1,highD) coloured(“Cyan”) style(line,4)<br /> DrawSegment(StartBAR,lowD, BarIndex + 1,lowD) coloured(“Cyan”) style(line,4)<br /> RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13

  DEFPARAM DrawOnLastBarOnly = true Timeframe(Daily,UpdateOnClose) lowD = low highD = high // timeframe(default) ONCE StartBAR = BarIndex IF (lowD <> lowD[1]) OR (highD <> highD[1]) THEN StartBAR= BarIndex ENDIF DrawSegment(StartBAR,highD,BarIndex + 1,highD) coloured(“Cyan”) style(line,4) DrawSegment(StartBAR,lowD, BarIndex + 1,lowD) coloured(“Cyan”) style(line,4) RETURN

  Bless you, thanks Roberto, I’ve applied it but its showing the current high and low, not the previous candle. Can you adjust it for me please?



  Andre36

  Participant

  Topics: 7

  Replies: 30

  Been thanked: 11 times
  04/05/2024 at 9:04 PM #231132
  robertogozzi

  Replace lines 3-4 by:

  lowD = low[1] highD = high[1]

  1 2	lowD  = low[1] highD = high[1]



  1 user thanked author for this post.

  Andre36



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17378

  Been thanked: 4177 times
  04/05/2024 at 10:55 PM #231136
  Andre36

  You are appreciated! Thank you!

  robertogozzi wrote:

  Replace lines 3-4 by:

  lowD = low[1]<br /> highD = high[1]

  1 2	lowD = low[1] highD = high[1]

  I guess you can tell I’m not good with coding. This is much appreciated. Enjoy your weekend. Thank you!



  Andre36

  Participant

  Topics: 7

  Replies: 30

  Been thanked: 11 times
  04/06/2024 at 1:56 PM #231158
  Andre36

  My lines weren’t prepositioned at low and close so Just to let any one else interested in this code know, I replaced the 1’s with 0’s. The original code is just as useful for lower timeframes and reading price but you can essentially do the same thing with the final code. Thanks so much once again.
