Problems using drawonlastbaronly parameter

• 09/14/2023 at 12:46 PM #221018
  micky_red

  Hello, this code draws two things. On the one hand, a vertical line at 8 in the morning. And on the other hand, a line with the maximum value of the price the previous day, said line has a text that has to be displayed on the right side of the graph.
  The problem I have is that the text I put on the line, which says “Maximum PD”, so that it appears at the end of the line (to the far right), I must activate “defparam drawonlastbaronly=true”, and when I do That’s it, the vertical bar disappears.
  I have tried disabling “defparam drawonlastbaronly=true” but then the text does not appear correctly.

  How can I get both things to appear correctly? Can you help me?

  Note: For me it is important that the text always appears on the right side, since by testing, I managed to put it on the left, but that solution does not work for me.

  Thank you.

  My code:

  // defparam drawonlastbaronly=true if time = 080100 then drawvline(barindex) coloured(0,153,255,255) endif if IntradayBarIndex=0 then // Maximum price of the previous day initialbar = BarIndex mpd=DHigh(1) ENDIF locationtext = mpd +6 DRAWTEXT ("Maximum PD", BarIndex ,locationtext) COLOURED(192,192,192) DrawSegment(initialbar,mpd,BarIndex,mpd) COLOURED(192,192,192) style(Line,2) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  // defparam drawonlastbaronly=true   if time = 080100 then drawvline(barindex) coloured(0,153,255,255) endif   if IntradayBarIndex=0 then // Maximum price of the previous day initialbar = BarIndex mpd=DHigh(1) ENDIF   locationtext = mpd +6 DRAWTEXT ("Maximum PD", BarIndex ,locationtext)  COLOURED(192,192,192) DrawSegment(initialbar,mpd,BarIndex,mpd) COLOURED(192,192,192) style(Line,2)   RETURN



  micky_red

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 1 time
  09/14/2023 at 1:06 PM #221022
  Nicolas

  Yes because 080100 bar is in the past, and not the current BARINDEX anymore, and that’s what you want draw on last barindex only.

  So the workaround is to store the number of the 08:01:00 barindex and plot it in the past:

  defparam drawonlastbaronly=true if time = 080100 then mybar=barindex endif if IntradayBarIndex=0 then // Maximum price of the previous day initialbar = BarIndex mpd=DHigh(1) ENDIF locationtext = mpd +6 DRAWTEXT ("Maximum PD", BarIndex ,locationtext) COLOURED(192,192,192) DrawSegment(initialbar,mpd,BarIndex,mpd) COLOURED(192,192,192) style(Line,2) drawvline(mybar) coloured(0,153,255,255) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  defparam drawonlastbaronly=true   if time = 080100 then mybar=barindex endif   if IntradayBarIndex=0 then // Maximum price of the previous day initialbar = BarIndex mpd=DHigh(1) ENDIF   locationtext = mpd +6 DRAWTEXT ("Maximum PD", BarIndex ,locationtext)  COLOURED(192,192,192) DrawSegment(initialbar,mpd,BarIndex,mpd) COLOURED(192,192,192) style(Line,2)   drawvline(mybar) coloured(0,153,255,255)   RETURN



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  09/15/2023 at 6:53 AM #221065
  micky_red

  Thanks for the response, but it doesn’t solve the problem.

  With the code you suggested, I only see the elements drawn in the last session and that is not what I want. What I want is for the different elements to be seen correctly for each session, that is, for them to be drawn every day.

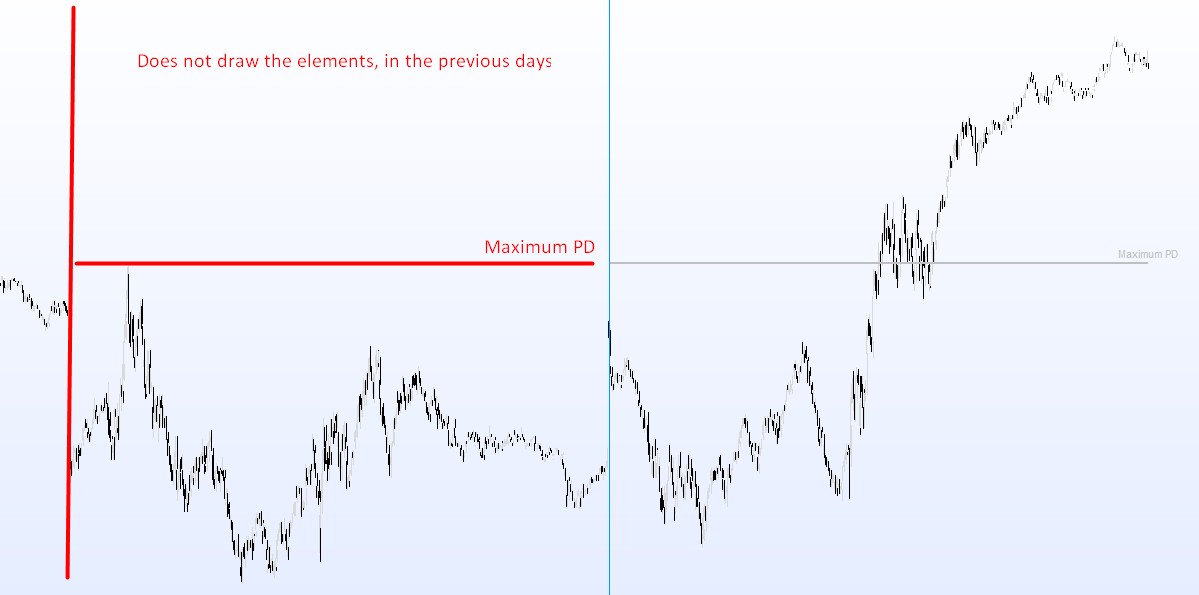

  I take a couple of screenshots, one with the parameter activated and another deactivated.

  How could we fix it, so that all elements look correct every day?

  Thanks for your help.



  micky_red

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 1 time
  09/15/2023 at 10:42 AM #221085
  Nicolas

  micky_red wrote:

  With the code you suggested, I only see the elements drawn in the last session and that is not what I want. What I want is for the different elements to be seen correctly for each session, that is, for them to be drawn every day.

  I have fixed the code you provided, to be shown correctly on the current day. You did not asked it to be plot over all history 🙂

  But anyway, if you don’t want objects to be drawn continuously on each single bar, then you have to plot them only one time and from the current bar only. So in order to do that, we have to store all coordinates of all objects of history, and that’s easy with an array:

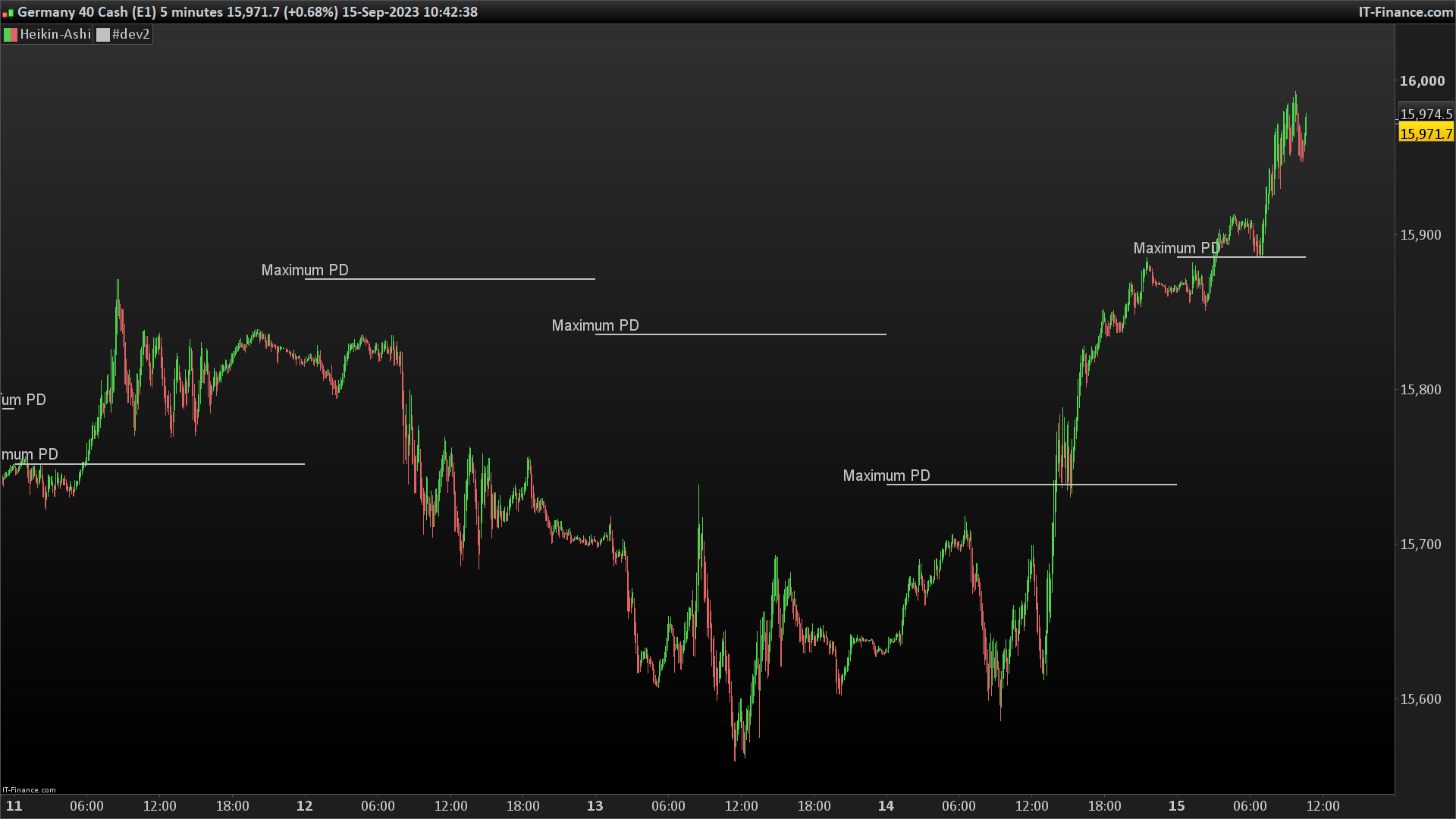

  The below version should make you happy, I hope so! 😉

  defparam drawonlastbaronly=true //we will draw only from the current bar, but in the past if IntradayBarIndex=0 then aa=aa+1 // Maximum price of the previous day $initialbar[aa] = BarIndex $mpd[aa]=DHigh(1) ENDIF if time = 080100 then $mybar[aa]=barindex endif if islastbarupdate then for i = aa downto 1 do locationtext = $mpd[i] +6*pointsize DRAWTEXT ("Maximum PD", $initialbar[i] ,locationtext) COLOURED(192,192,192) if i = aa then DrawSegment($initialbar[i],$mpd[i],barindex,$mpd[i]) COLOURED(192,192,192) style(Line,2) else DrawSegment($initialbar[i],$mpd[i],$initialbar[i+1],$mpd[i]) COLOURED(192,192,192) style(Line,2) endif drawvline($mybar[i]) coloured(0,153,255,255) next endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

  defparam drawonlastbaronly=true //we will draw only from the current bar, but in the past   if IntradayBarIndex=0 then aa=aa+1 // Maximum price of the previous day $initialbar[aa] = BarIndex $mpd[aa]=DHigh(1) ENDIF   if time = 080100 then $mybar[aa]=barindex endif   if islastbarupdate then for i = aa downto 1 do locationtext = $mpd[i] +6*pointsize DRAWTEXT ("Maximum PD", $initialbar[i] ,locationtext)  COLOURED(192,192,192) if i = aa then DrawSegment($initialbar[i],$mpd[i],barindex,$mpd[i]) COLOURED(192,192,192) style(Line,2) else DrawSegment($initialbar[i],$mpd[i],$initialbar[i+1],$mpd[i]) COLOURED(192,192,192) style(Line,2) endif   drawvline($mybar[i]) coloured(0,153,255,255) next endif   RETURN





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
