Request Help for Code Summation

• 06/20/2023 at 4:32 PM #216508
  Aragorna

  Hi everyone,

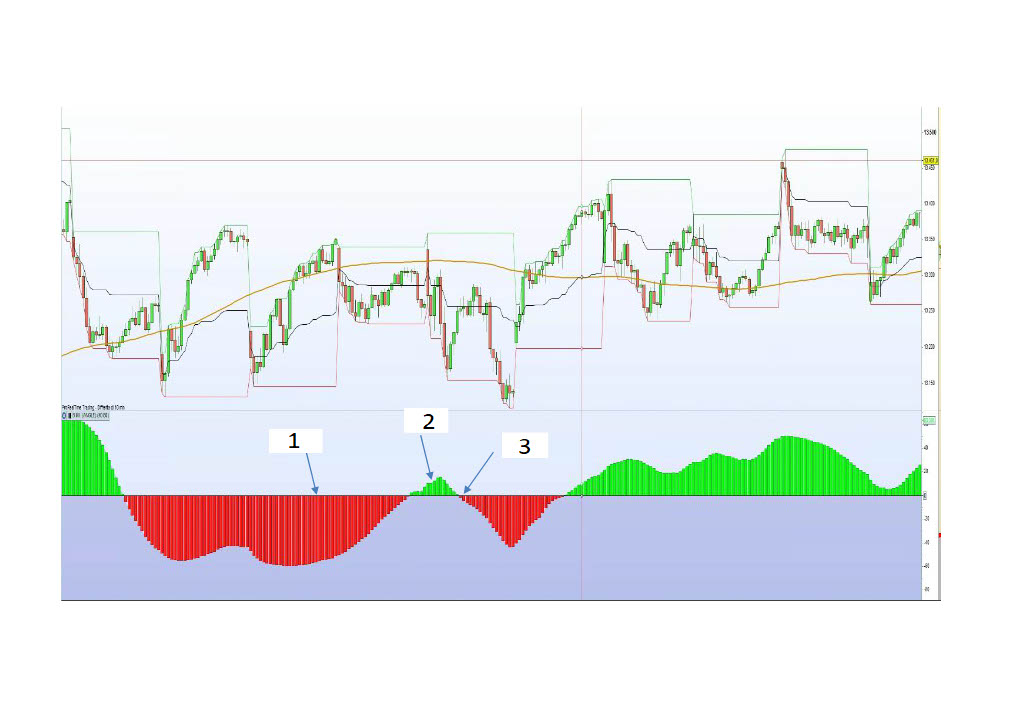

  I need help to understand how to code a condition, maybe two. As you can see in attachment, there is an oscillator. I’d like to define the condition of this generic indicator as follow:

  1) oscillator has to be in red condition , so indicator<0 more than for example 50 bars.

  2) then second condition oscillator has to be green no more than 10 bars

  3)oscillator has to cross Zero line from green to red, that is the trigger Short in this case.

  How could I code it?

  thank’s in advance to everyone that can help me.

  Alessio



  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
  06/21/2023 at 12:24 AM #216517
  Aragorna

  in particular the indicator is B.M.I. angle.

  https://www.prorealcode.com/prorealtime-indicators/b-m-i-angle-of-ma/

  how can I create those conditions?  Hope Roberto can help me

  // — settings
  //Periode = 10 //Période de la MM
  //nbChandelier= 20 // Nombre de chandeliers sur lesquels on évalue la pente
  // — end of settings

  MM = Exponentialaverage[Periode](close)
  ADJASUROPPO = (MM-MM[nbchandelier]*pipsize) / nbChandelier
  ANGLE = (ATAN(ADJASUROPPO))
  if angle>0 then
  r=0
  g=255
  else
  r=255
  g=0
  endif

  RETURN angle coloured(r,g,0) style(histogram) as “Angle”, 0 as “level 0”





  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
  06/21/2023 at 5:29 AM #216518
  JC_Bywan

  Hi,

  // — settings Periode = 10 //Période de la MM nbChandelier= 20 // Nombre de chandeliers sur lesquels on évalue la pente // — end of settings MM = Exponentialaverage[Periode](close) ADJASUROPPO = (MM-MM[nbchandelier]*pipsize) / nbChandelier ANGLE = (ATAN(ADJASUROPPO)) if angle>0 then r=0 g=255 else r=255 g=0 endif c1= angle<0 c2= angle>0 c3= summation[50](c1)=50 c4= angle crosses over 0 and c3[1] c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1]) c6= angle crosses under 0 and c5[1] if c6 then DRAWARROWDOWN(barindex, 2*highest[10](angle)) coloured("red") endif RETURN angle coloured(r,g,0) style(histogram) as "Angle", 0 as "level 0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

  // — settings Periode = 10 //Période de la MM nbChandelier= 20 // Nombre de chandeliers sur lesquels on évalue la pente // — end of settings   MM = Exponentialaverage[Periode](close) ADJASUROPPO = (MM-MM[nbchandelier]*pipsize) / nbChandelier ANGLE = (ATAN(ADJASUROPPO)) if angle>0 then r=0 g=255 else r=255 g=0 endif   c1= angle<0 c2= angle>0 c3= summation[50](c1)=50 c4= angle crosses over 0 and c3[1] c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1]) c6= angle crosses under 0 and c5[1]   if c6 then DRAWARROWDOWN(barindex, 2*highest[10](angle)) coloured("red") endif   RETURN angle coloured(r,g,0) style(histogram) as "Angle", 0 as "level 0"







  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2652

  Been thanked: 919 times
  06/21/2023 at 10:21 AM #216534
  Aragorna

  Hi JC,

  thank you for your answer. I have a question: C3 means that condition is true if Bar are exactly 50 ?if I need more than 50 bars, Should I write C3=summation[50](c1)>50 ?

  what does C3[1] mean?  previous condition of C3 ?but which one? I don0t understand the code

  thank you in advance for your answer

  Alessio



  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
  06/21/2023 at 10:46 AM #216535
  JC_Bywan

  Hi,

  C3 means it’s true if C1 was true 50 times out of 50 in the latest 50 candles, meaning the one it’s read on and its 49 previous ones. So if this is true regardless of how many more red bars there was before these 50, then the “more than 50” case is covered.

  C3[1] means value of C3 for previous candle before the one it’s read on (writing c3[2] would have been value of C3 2 candles ago, etc…).



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2652

  Been thanked: 919 times
  06/21/2023 at 1:42 PM #216542
  Aragorna

  Thank you very much for your explanation. Is it too much if I ask you also the long side of the same code?

  1) oscillator has to be in green condition , so indicator>0 more than for example 50 bars.

  2) then second condition oscillator has to be red no more than 10 bars

  3)oscillator has to cross Zero line from red to green, trigger Long.



  thank you very much in advance

  alessio



  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
  06/21/2023 at 1:55 PM #216543
  JC_Bywan

  Here is added long side too:

  // — settings Periode = 10 //Période de la MM nbChandelier= 20 // Nombre de chandeliers sur lesquels on évalue la pente // — end of settings MM = Exponentialaverage[Periode](close) ADJASUROPPO = (MM-MM[nbchandelier]*pipsize) / nbChandelier ANGLE = (ATAN(ADJASUROPPO)) if angle>0 then r=0 g=255 else r=255 g=0 endif c1= angle<0 c2= angle>0 c3= summation[50](c1)=50 c4= angle crosses over 0 and c3[1] c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1]) c6= angle crosses under 0 and c5[1] if c6 then DRAWARROWDOWN(barindex, 2*highest[10](angle)) coloured("red") endif c7= summation[50](c2)=50 c8= angle crosses under 0 and c7[1] c9= c1 and summation[10](c8)>=1 and (c8[1] or c9[1]) c10= angle crosses over 0 and c9[1] if c10 then DRAWARROWUP(barindex, 2*lowest[10](angle)) coloured("green") endif RETURN angle coloured(r,g,0) style(histogram) as "Angle", 0 as "level 0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  // — settings Periode = 10 //Période de la MM nbChandelier= 20 // Nombre de chandeliers sur lesquels on évalue la pente // — end of settings   MM = Exponentialaverage[Periode](close) ADJASUROPPO = (MM-MM[nbchandelier]*pipsize) / nbChandelier ANGLE = (ATAN(ADJASUROPPO)) if angle>0 then r=0 g=255 else r=255 g=0 endif   c1= angle<0 c2= angle>0   c3= summation[50](c1)=50 c4= angle crosses over 0 and c3[1] c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1]) c6= angle crosses under 0 and c5[1]   if c6 then DRAWARROWDOWN(barindex, 2*highest[10](angle)) coloured("red") endif   c7= summation[50](c2)=50 c8= angle crosses under 0 and c7[1] c9= c1 and summation[10](c8)>=1 and (c8[1] or c9[1]) c10= angle crosses over 0 and c9[1]   if c10 then DRAWARROWUP(barindex, 2*lowest[10](angle)) coloured("green") endif   RETURN angle coloured(r,g,0) style(histogram) as "Angle", 0 as "level 0"







  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2652

  Been thanked: 919 times
  06/22/2023 at 2:11 AM #216592
  Aragorna

  thank you. for some reasons condition N°2, related to C5 and C9 do not work, I don’t know why.



  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
  06/22/2023 at 6:31 AM #216597
  PeterSt

  c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1])

  1	c5= c2 and summation[10](c4)>=1 and (c4[1] or c5[1])

  I would not know how this works out by guarantee or better : what is intended, without braces. E.g. :

  c5= (c2 and summation[10](c4)>=1 and (c4[1]) or c5[1])

  1	c5= (c2 and summation[10](c4)>=1 and (c4[1]) or c5[1])





  PeterSt

  Participant

  Topics: 73

  Replies: 2509

  Been thanked: 813 times
  06/23/2023 at 5:09 AM #216639
  JC_Bywan

  c2= angle>0

  what do you mean “c2 does not work”? Please describe in details what you consider as not working, or we are left guessing multiple hypothesis from “just a potential typo in copy/paste, but which one…”, to “trying to find cases with c2 true when it should be wrong”, via “c2 works but conditions with use of c2 don’t give intended results”, etc…



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2652

  Been thanked: 919 times
  06/23/2023 at 5:59 AM #216640
  JC_Bywan

  The “…and (c4[1] or c5[1])” was there to either initialize the series of c5 with a c4 at previous candle (c4[1]), or subsequently for a new c5 to be preceded itself by a c5 at previous candle (c5[1]). The purpose was to rule out the few cases where a c4 occurs but is quickly followed by a c1 and then by a c2 again, all within 10 bars. So a series of c5 only occurs directly after c4, no unbroken chain of events.



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2652

  Been thanked: 919 times
  06/23/2023 at 4:17 PM #216670
  Aragorna

  Hi JC, adding the braces it works. thank’s for the code! very appreciated

  Alessio



  Aragorna

  Participant

  Topics: 36

  Replies: 130

  Been thanked: 12 times
