Running daily Volume in a intraday Chart

• 08/07/2018 at 8:15 PM #77737
  Ringo

  Hello,

  I would like to have the running daily volume of the recent day visualized in an intraday chart like the 2min timeframe.

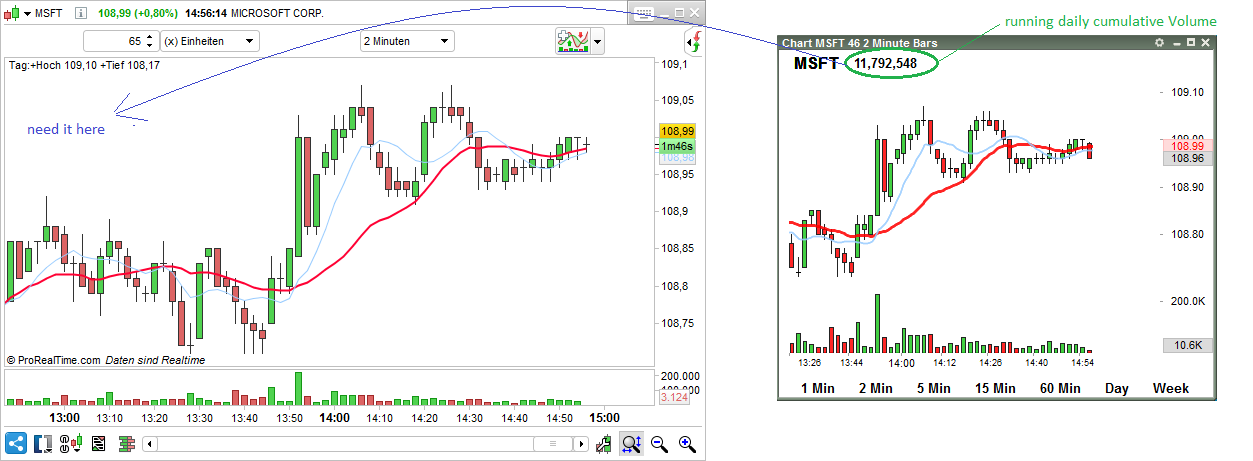

  For example I attached two charts:

  1. msft PRT 2min chart where I need the running daily volume
  2. the msft 2min chart of Lightspeed platform, where the example of the running daily volume is showed.

  Possible to create something similar like that in PRT?

  Thanks for help

  Best regards

  André





  Ringo

  Participant

  Topics: 7

  Replies: 18

  Been thanked: 1 time
  08/07/2018 at 9:24 PM #77739
  GraHal

  Where does the 11,792,548 volume come from for the Lightspeed Platform ?

  I ask because even if somehow you / somebody could provide a means to get a daily volume figure displayed on PRT Charts then it would only be the volume generated by IG Clients.

  Would be a different source if you use the PRT direct Platform (correct name escapes me) operating / dealing direct to / from exchanges.



  GraHal

  Participant

  Topics: 212

  Replies: 8790

  Been thanked: 2189 times
  08/08/2018 at 9:37 AM #77752
  Nicolas

  The code below will do it for you:

  defparam drawonlastbaronly=true if intradaybarindex=0 then vol=0 endif vol=vol+volume drawtext("running daily volume= #vol#",barindex,0,Dialog,Bold,22) return

  1 2 3 4 5 6 7 8 9 10 11

  defparam drawonlastbaronly=true   if intradaybarindex=0 then vol=0 endif   vol=vol+volume   drawtext("running daily volume= #vol#",barindex,0,Dialog,Bold,22)   return

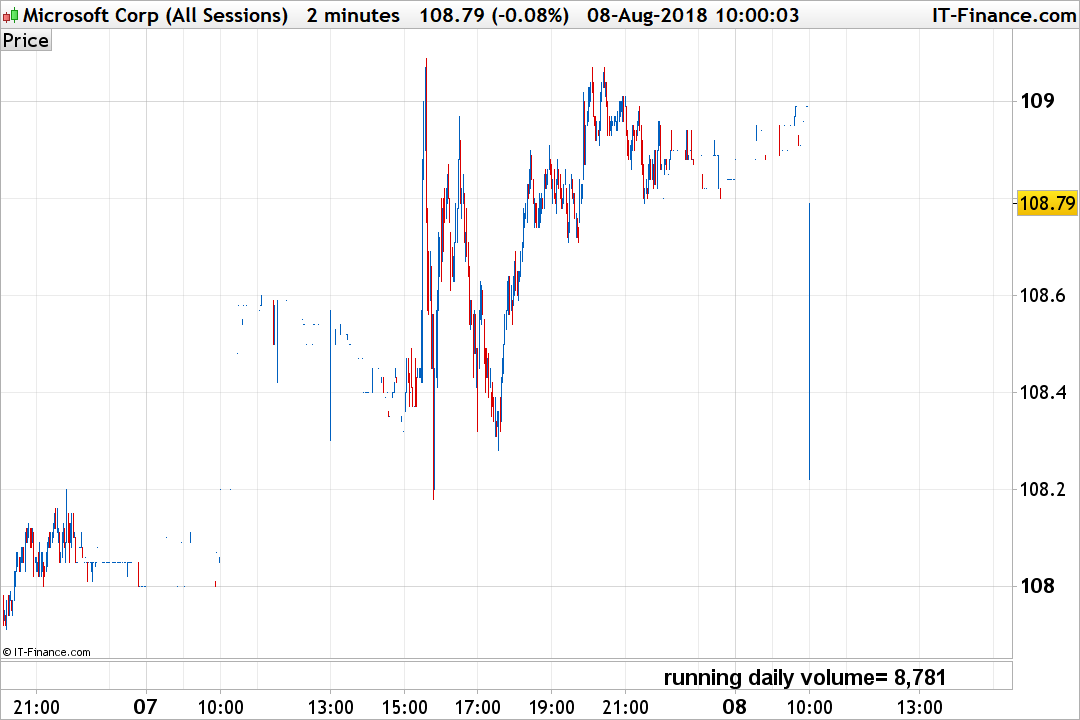

  Because we can’t anchor the text at a fixed position on the chart, I made the text to appear at 0 price value, so you should add the indicator below the chart and not applying on price, like in the attached picture.

  3 users thanked author for this post.

  Bel, Nobody, Ringo



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  08/08/2018 at 2:23 PM #77773
  Ringo

  Hello Nicolas,

  exactly what I need. Thanks a lot.

  André



  Ringo

  Participant

  Topics: 7

  Replies: 18

  Been thanked: 1 time
  08/08/2018 at 2:26 PM #77775
  Ringo

  Thanks GraHal, Volume as shown came from the LS Platform.

  But for the indicator I use the Volume which I receive via PRT and PRT US Stocks Datafeed. No IG Client.



  Ringo

  Participant

  Topics: 7

  Replies: 18

  Been thanked: 1 time
  08/09/2018 at 7:08 AM #77817
  Nobody

  Is it possible to just collate the volume between certain times of day such as 9am to 4pm  ?   I  changed it from a text to a barchart easy enough but the time factor not so easy for me at this stage  . Any help appreciated





  Nobody

  Participant

  Topics: 9

  Replies: 192

  Been thanked: 59 times
  08/09/2018 at 7:25 AM #77818
  GraHal

  Does this work?

  if Time < 090000 and Time > 160000 then vol=0 endif vol=vol+volume

  1 2 3 4 5

  if Time < 090000 and Time > 160000 then vol=0 endif vol=vol+volume



  2 users thanked author for this post.

  robertogozzi, Nobody



  GraHal

  Participant

  Topics: 212

  Replies: 8790

  Been thanked: 2189 times
  08/09/2018 at 7:54 AM #77819
  Nobody

  GraHal wrote:

  Does this work?

  No but it looks like the right track



  Nobody

  Participant

  Topics: 9

  Replies: 192

  Been thanked: 59 times
  08/09/2018 at 8:26 AM #77825
  robertogozzi

  GraHal wrote:

  if Time < 090000 and Time > 160000 then

  TIME cannot be < 090000 AND > 160000 at the same TIME! 🙂

  Replacing AND with OR should do.

  2 users thanked author for this post.

  GraHal, Nobody



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17151

  Been thanked: 4040 times
  08/09/2018 at 8:46 AM #77828
  swapping

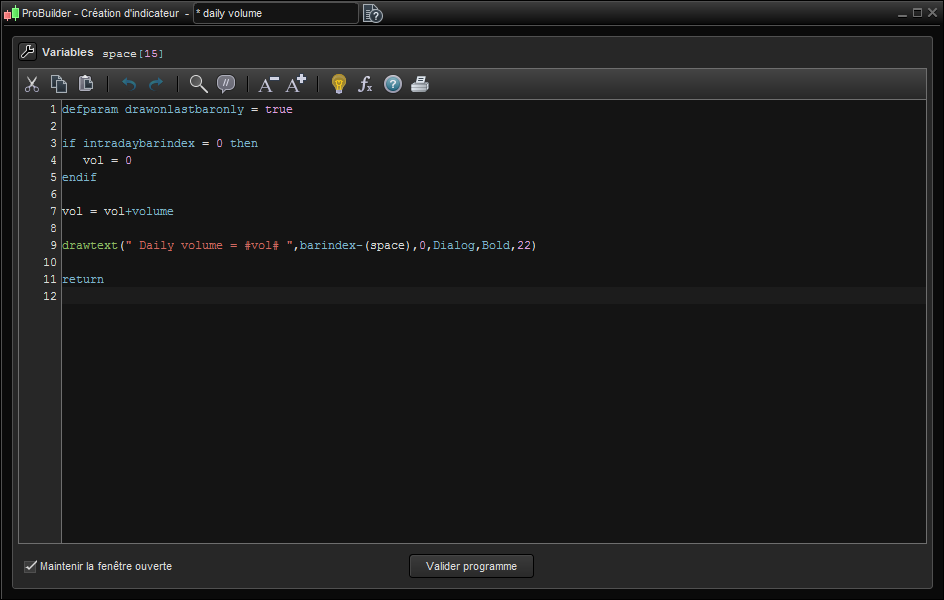

  In complement at code to Nicolas, add variable (space) for adjust visibility

  • I’m sorry for me english



  swapping

  Participant

  Topics: 10

  Replies: 97

  Been thanked: 38 times
  08/09/2018 at 9:20 AM #77831
  Nobody

  Appreciate all the help given . Very handy tool for me  . This the code im using

  // cummulative volume for ASX aus200 Timezone if Time < 095000 or Time > 163000 then vol=0 endif vol=vol+volume return vol coloured(285,165,32)style(histogram)

  1 2 3 4 5 6 7 8

  // cummulative volume for ASX aus200 Timezone if Time < 095000 or Time > 163000 then vol=0 endif vol=vol+volume   return vol coloured(285,165,32)style(histogram)





  Nobody

  Participant

  Topics: 9

  Replies: 192

  Been thanked: 59 times
  08/09/2018 at 9:34 AM #77833
  GraHal

  Above added as row 55 here Snippet Link Library

  1 user thanked author for this post.

  robertogozzi



  GraHal

  Participant

  Topics: 212

  Replies: 8790

  Been thanked: 2189 times
  08/09/2018 at 4:21 PM #77880
  Ringo

  Hello,

  I have another additional question, regarding the indicator Nicolas has given me for the daily volume counter:

  Works fine so far, but I noticed the following. When the chart is in an intraday timeframe like 2min or 1hour, the volume in the indicator is counting with a lag/delay. Not so when I switch to the daily timeframe.

  What could be the reason for that? Please check the attached screenshot.

  Thanks

  André



  Ringo

  Participant

  Topics: 7

  Replies: 18

  Been thanked: 1 time
  08/09/2018 at 4:55 PM #77886
  Nobody

  Ringo wrote:

  Hello,

  I have another additional question, regarding the indicator Nicolas has given me for the daily volume counter:

  Works fine so far, but I noticed the following. When the chart is in an intraday timeframe like 2min or 1hour, the volume in the indicator is counting with a lag/delay. Not so when I switch to the daily timeframe.

  What could be the reason for that? Please check the attached screenshot.

  Thanks

  André

  The daily volume updates constantly but the intra volume counter only adds the volume for current 2 m bar once bar is completed

  1 user thanked author for this post.

  Ringo



  Nobody

  Participant

  Topics: 9

  Replies: 192

  Been thanked: 59 times
