Screener Symbols

• 04/08/2020 at 12:15 PM #125208
  deletedaccount14122020

  Hello,

  When the conditions of a Screener are met is it possible to add some code which would show a symbol on the chart confirming the event.

  Any sort of symbol would be good. This is similar to the arrows which show on the chart when an Alert is triggered.

  Any advice would be appreciated



  deletedaccount14122020

  Participant

  Topics: 24

  Replies: 36

  Been thanked: 2 times
  04/08/2020 at 1:05 PM #125220
  robertogozzi

  No, it’s not possible.

  Screeners can only highlight new instruments in a list and beep.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17133

  Been thanked: 4030 times
  04/08/2020 at 1:27 PM #125225
  deletedaccount14122020

  OK, many thanks for clarifying that.







  deletedaccount14122020

  Participant

  Topics: 24

  Replies: 36

  Been thanked: 2 times
  04/08/2020 at 4:40 PM #125278
  GraHal

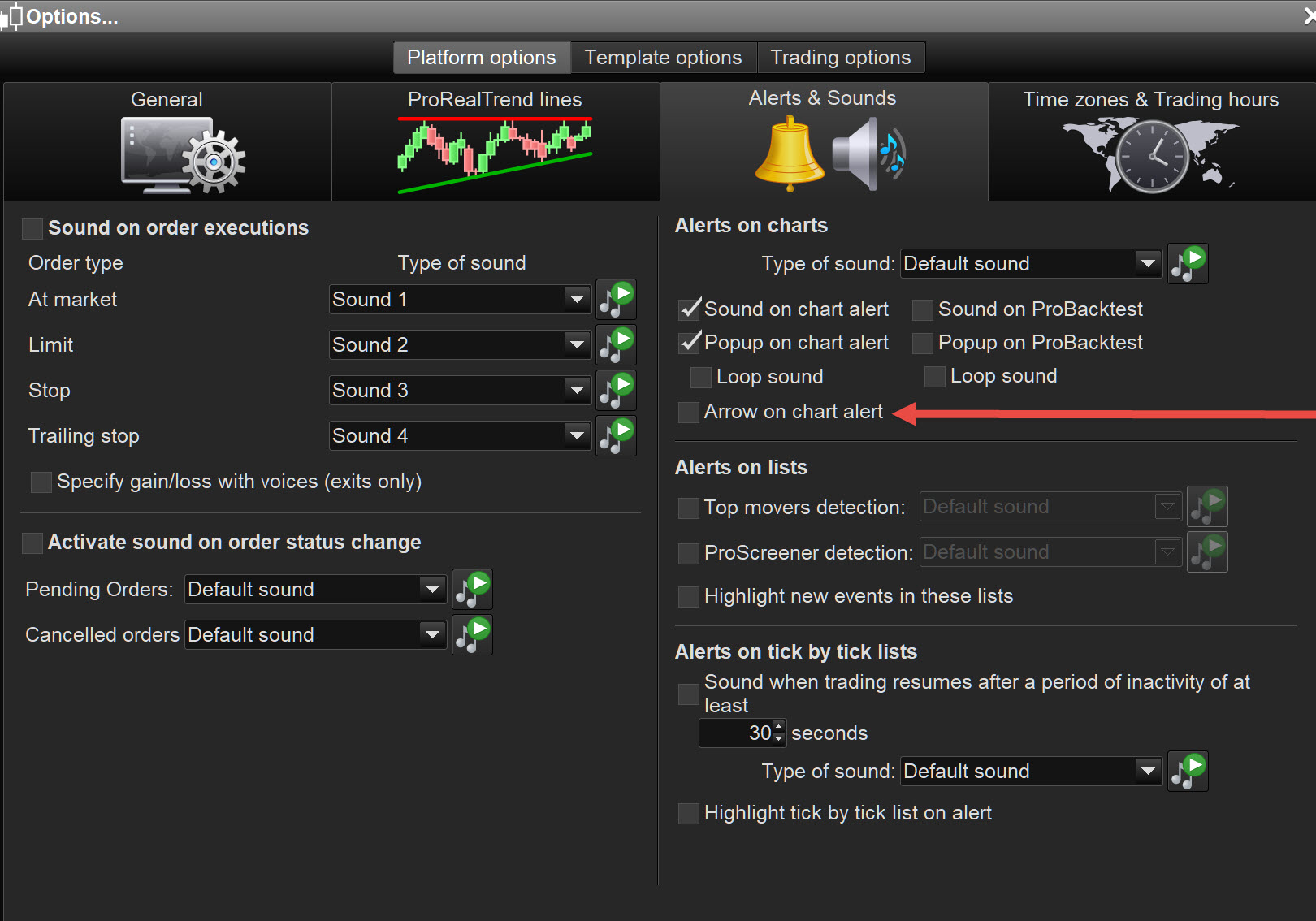

  You could set up the same conditions on a Chart / Indicators and then use the symbol you can set up when an Alert is triggered (see red arrowhead on attached).

  1 user thanked author for this post.

  robertogozzi



  GraHal

  Participant

  Topics: 212

  Replies: 8784

  Been thanked: 2184 times
  04/08/2020 at 5:57 PM #125302
  deletedaccount14122020

  Many thanks for the Chart/Indicator suggestion which never occurred to me.

  I’ll give this a go and submit my feedback



  deletedaccount14122020

  Participant

  Topics: 24

  Replies: 36

  Been thanked: 2 times
  04/08/2020 at 6:21 PM #125307
  deletedaccount14122020

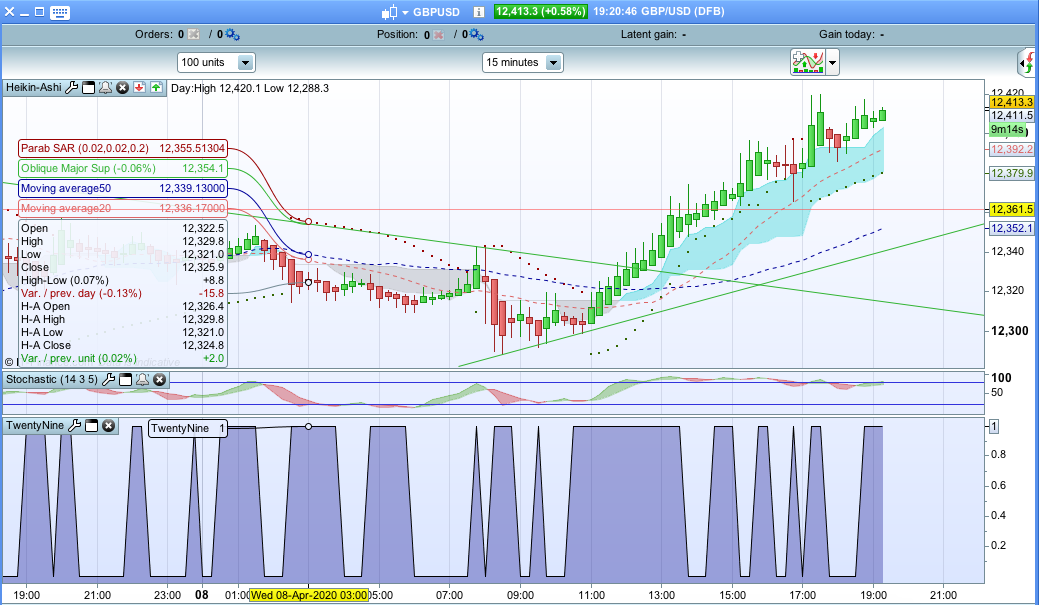

  I’ve set up the Screener as an Indicator which works correctly showing 1 = TRUE and 0 = FALSE but I’m not sure how I can set this up to show as a symbol on the main chart.

  Any advice appreciated

  //TRADE ENTRY INDICATOR //HEIKEN ASHI CALCULATION xClose = (Open+High+Low+Close)/4 //Heikin Ashi Close price if(barindex>2) then xOpen = (xOpen[1] + xClose[1])/2 //Heikin Ashi Open price endif indicator1 = SAR[0.02,0.02,0.2] //Parabolic SAR sto = Stochastic[14,3](close) //Stochastic %K signal = average[5](sto) //Stochastic %D c3 = indicator1 < close //Parabolic SAR below Close c4 = indicator1 > close //Parabolic SAR above Close c5 = sto > signal //%K above %D c6 = sto < signal //%K below %D c7 = xClose>xOpen //Green Haiken Ashi candle c8 = xClose<xOpen //Red Haiken Ashi candle TradeEntry = (c3 AND c5 AND c7) OR (c4 AND c6 AND c8) Return TradeEntry

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

  //TRADE ENTRY INDICATOR   //HEIKEN ASHI CALCULATION xClose = (Open+High+Low+Close)/4 //Heikin Ashi Close price   if(barindex>2) then xOpen = (xOpen[1] + xClose[1])/2 //Heikin Ashi Open price endif   indicator1 = SAR[0.02,0.02,0.2] //Parabolic SAR   sto = Stochastic[14,3](close) //Stochastic %K signal = average[5](sto) //Stochastic %D   c3 = indicator1 < close //Parabolic SAR below Close c4 = indicator1 > close //Parabolic SAR above Close   c5 = sto > signal //%K above %D c6 = sto < signal //%K below %D   c7 = xClose>xOpen //Green Haiken Ashi candle c8 = xClose<xOpen //Red Haiken Ashi candle   TradeEntry = (c3 AND c5 AND c7) OR (c4 AND c6 AND c8) Return TradeEntry





  deletedaccount14122020

  Participant

  Topics: 24

  Replies: 36

  Been thanked: 2 times
  04/08/2020 at 7:13 PM #125317
  robertogozzi

  For clarity of messages on ProRealCode’s forums, please use the “insert code PRT” button to separate the text of the code part! Thank you! 🙂

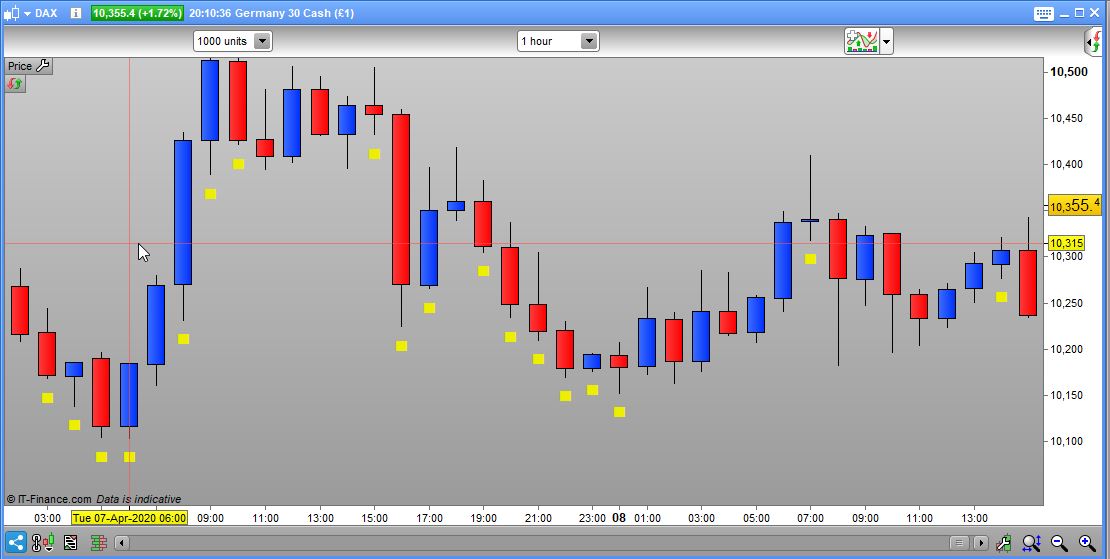

  Try this, if it’s what you want:

  //TRADE ENTRY INDICATOR //HEIKEN ASHI CALCULATION xClose = (Open+High+Low+Close)/4 //Heikin Ashi Close price if(barindex>2) then xOpen = (xOpen[1] + xClose[1])/2 //Heikin Ashi Open price endif indicator1 = SAR[0.02,0.02,0.2] //Parabolic SAR sto = Stochastic[14,3](close) //Stochastic %K signal = average[5](sto) //Stochastic %D c3 = indicator1 < close //Parabolic SAR below Close c4 = indicator1 > close //Parabolic SAR above Close c5 = sto > signal //%K above %D c6 = sto < signal //%K below %D c7 = xClose>xOpen //Green Haiken Ashi candle c8 = xClose<xOpen //Red Haiken Ashi candle TradeEntry = (c3 AND c5 AND c7) OR (c4 AND c6 AND c8) IF TradeEntry THEN DRAWTEXT("█",barindex,low - 20*pipsize) coloured(238,238,0,255) ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

  //TRADE ENTRY INDICATOR   //HEIKEN ASHI CALCULATION xClose = (Open+High+Low+Close)/4 //Heikin Ashi Close price   if(barindex>2) then    xOpen = (xOpen[1] + xClose[1])/2 //Heikin Ashi Open price endif   indicator1 = SAR[0.02,0.02,0.2] //Parabolic SAR   sto = Stochastic[14,3](close) //Stochastic %K signal = average[5](sto) //Stochastic %D   c3 = indicator1 < close //Parabolic SAR below Close c4 = indicator1 > close //Parabolic SAR above Close   c5 = sto > signal //%K above %D c6 = sto < signal //%K below %D   c7 = xClose>xOpen //Green Haiken Ashi candle c8 = xClose<xOpen //Red Haiken Ashi candle TradeEntry = (c3 AND c5 AND c7) OR (c4 AND c6 AND c8) IF TradeEntry THEN    DRAWTEXT("█",barindex,low - 20*pipsize) coloured(238,238,0,255) ENDIF Return





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17133

  Been thanked: 4030 times
  04/08/2020 at 7:36 PM #125323
  deletedaccount14122020

  Many thanks. Now I understand the code I can format it to my requirements



  deletedaccount14122020

  Participant

  Topics: 24

  Replies: 36

  Been thanked: 2 times
