Show the highest/lowest price of the chart

• 09/07/2023 at 7:57 PM #220519
  benkunz

  Hi,

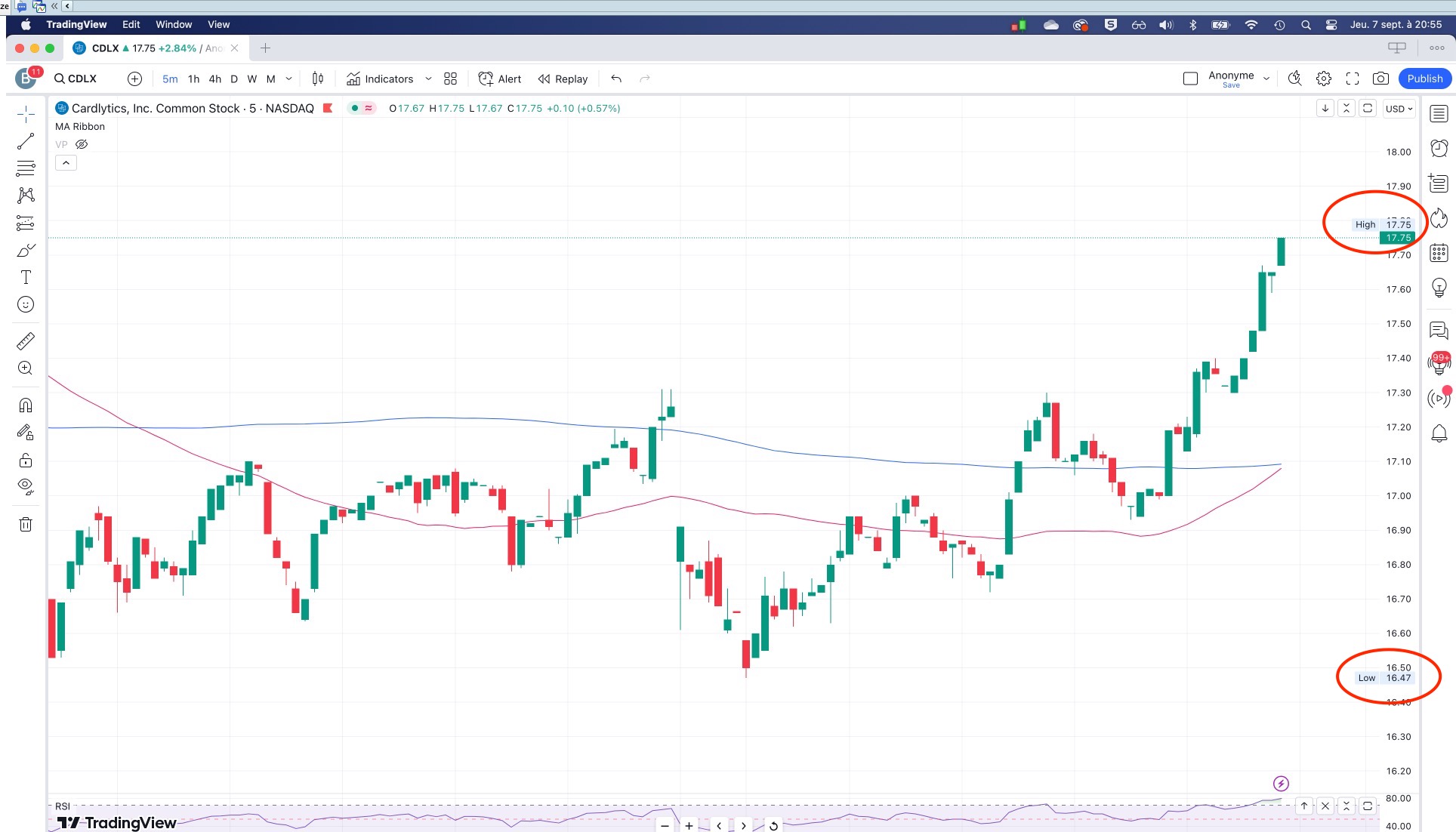

  is there a way to show in PRT the highest and lowest price of the chart ? I’m attaching a screenshot from tradingview that shows want I want.

  thanks



  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
  09/07/2023 at 8:03 PM #220521
  fifi743

  of the day ?



  fifi743

  Participant

  Topics: 10

  Replies: 905

  Been thanked: 420 times
  09/07/2023 at 8:11 PM #220522
  benkunz

  nope. Of everything that is displayed on the screen. So if I move / zoom the chart, the highest/lowest might change. have a look to the screenshot, I think it is pretty self explanatory



  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
  09/08/2023 at 8:05 AM #220537
  robertogozzi

  No, any code CANNOT read what’s on your charts. It only knows OHLC, Date and Time.

  No input is available.







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17133

  Been thanked: 4030 times
  09/08/2023 at 8:41 AM #220543
  JS

  Hi,

  You can use the “BarIndex” to determine the high and the Low…

  High Low

  DefParam DrawOnLastBarOnly=True xHigh=Highest[BarIndex+1](High) xLow=Lowest[BarIndex+1](Low) DrawText("High=#xHigh#",BarIndex,xHigh,SansSerif,Bold,16)Coloured("Green") DrawText("Low=#xLow#",BarIndex,xLow,SansSerif,Bold,16)Coloured("Red") Return

  1 2 3 4 5 6 7 8

  DefParam DrawOnLastBarOnly=True   xHigh=Highest[BarIndex+1](High) xLow=Lowest[BarIndex+1](Low)   DrawText("High=#xHigh#",BarIndex,xHigh,SansSerif,Bold,16)Coloured("Green") DrawText("Low=#xLow#",BarIndex,xLow,SansSerif,Bold,16)Coloured("Red") Return

  1 user thanked author for this post.

  Zigo



  JS

  Participant

  Topics: 26

  Replies: 1715

  Been thanked: 777 times
  09/08/2023 at 8:54 AM #220546
  benkunz

  Hi JS, that looks good. just one thing, where should I paste your code ?



  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
  09/08/2023 at 9:02 AM #220548
  JS

  Hi,

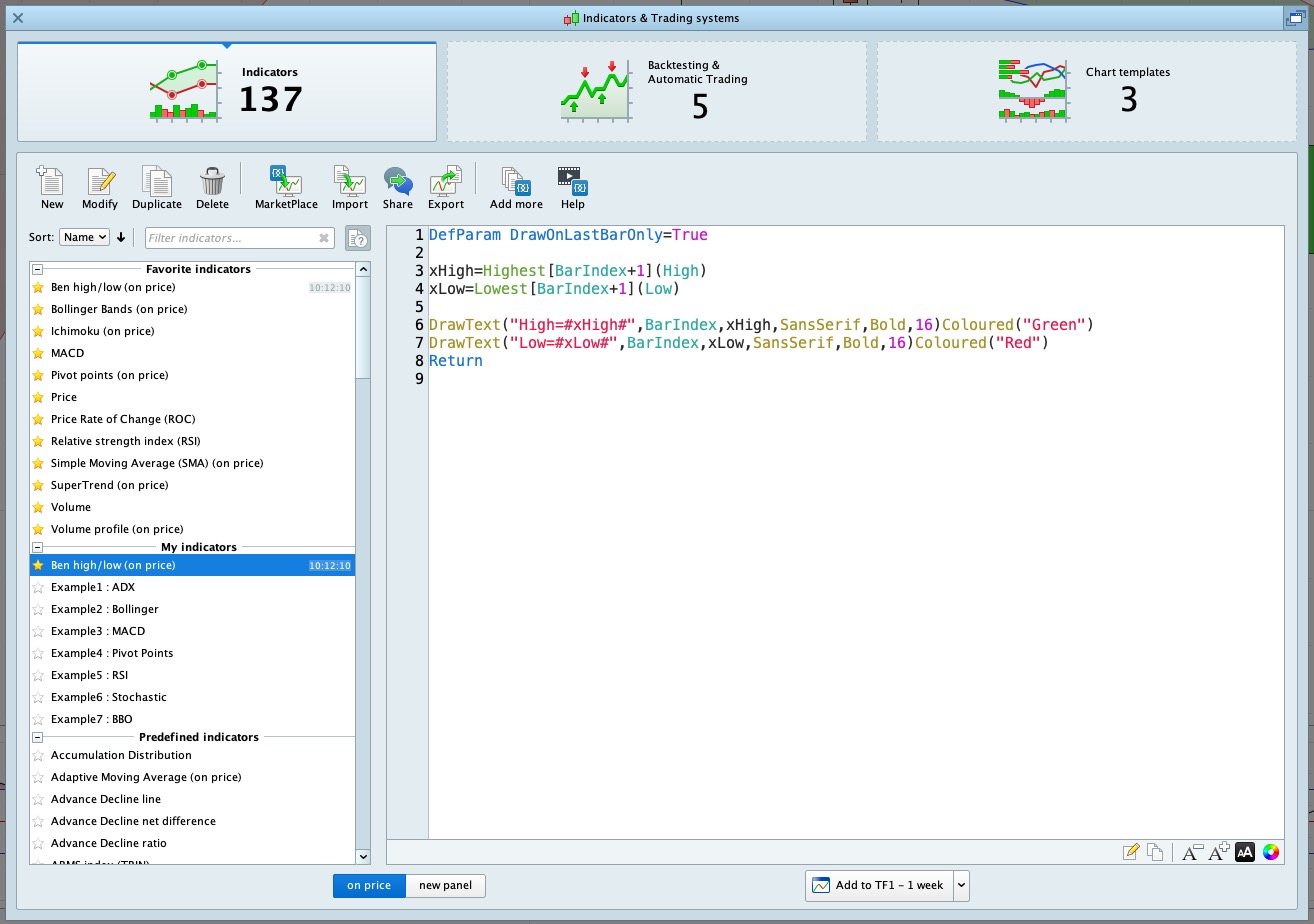

  Copy the code and save as an indicator in PRT, then add the indicator to the price… (top left of the graph)



  JS

  Participant

  Topics: 26

  Replies: 1715

  Been thanked: 777 times
  09/08/2023 at 9:20 AM #220549
  benkunz

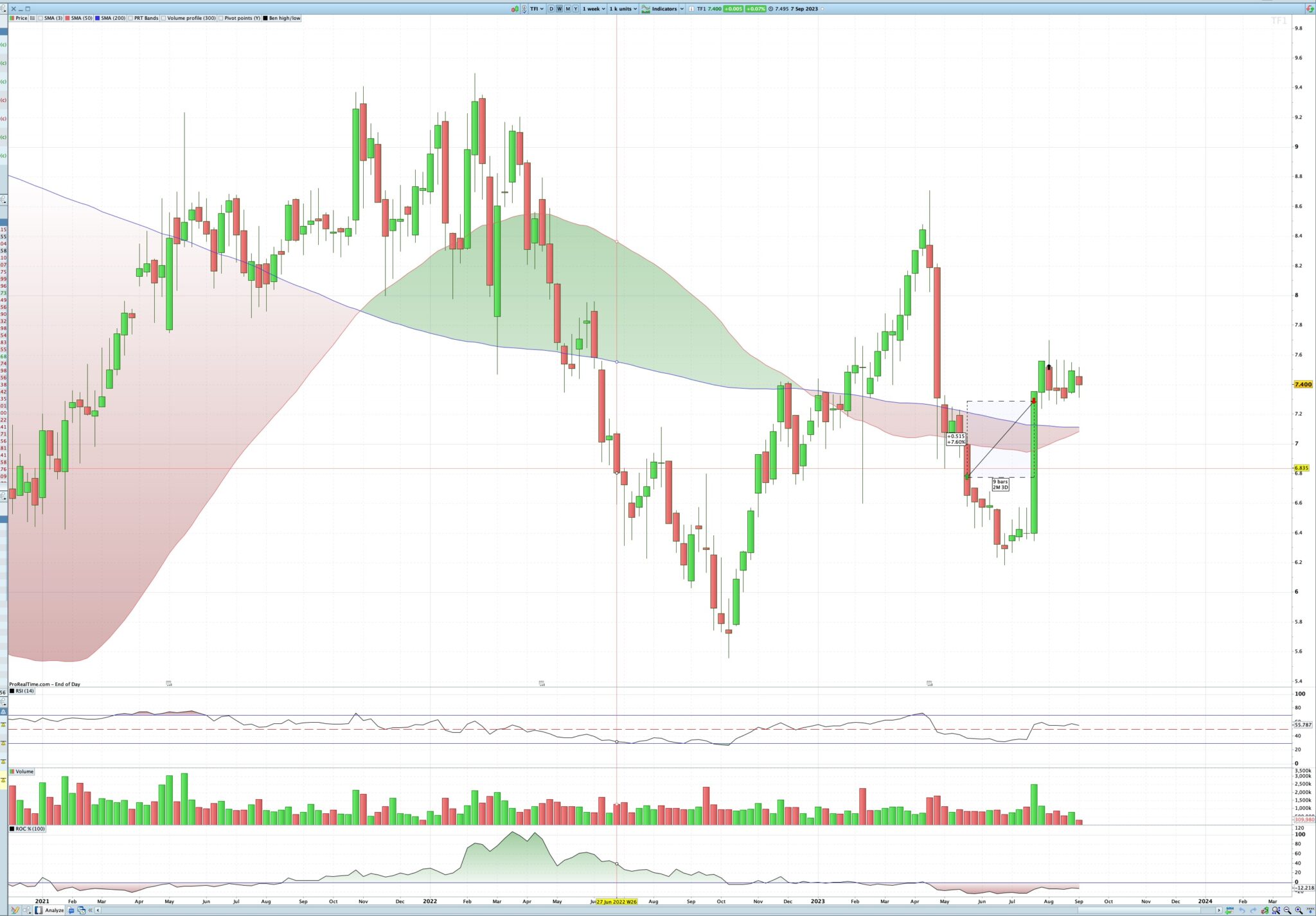

  looks like I forgot something somewhere, but what ? 🙂





  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
  09/08/2023 at 9:34 AM #220554
  JS

  Hi,

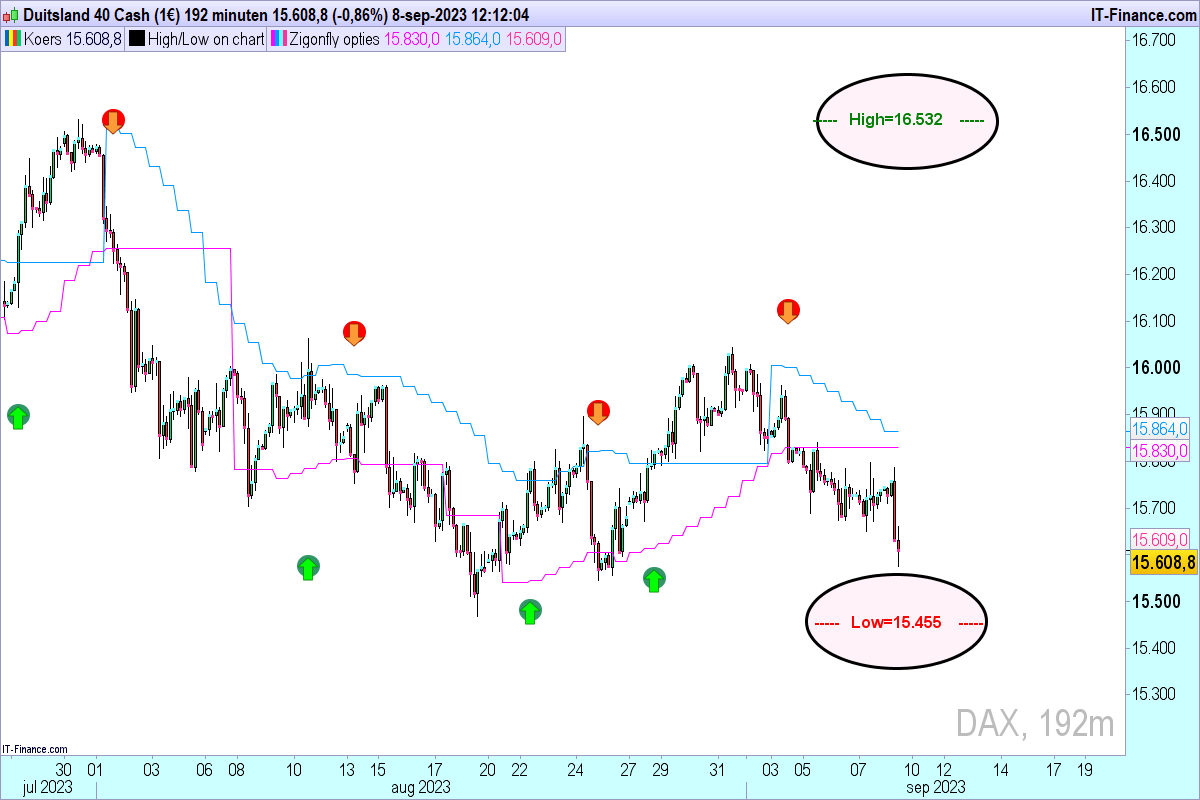

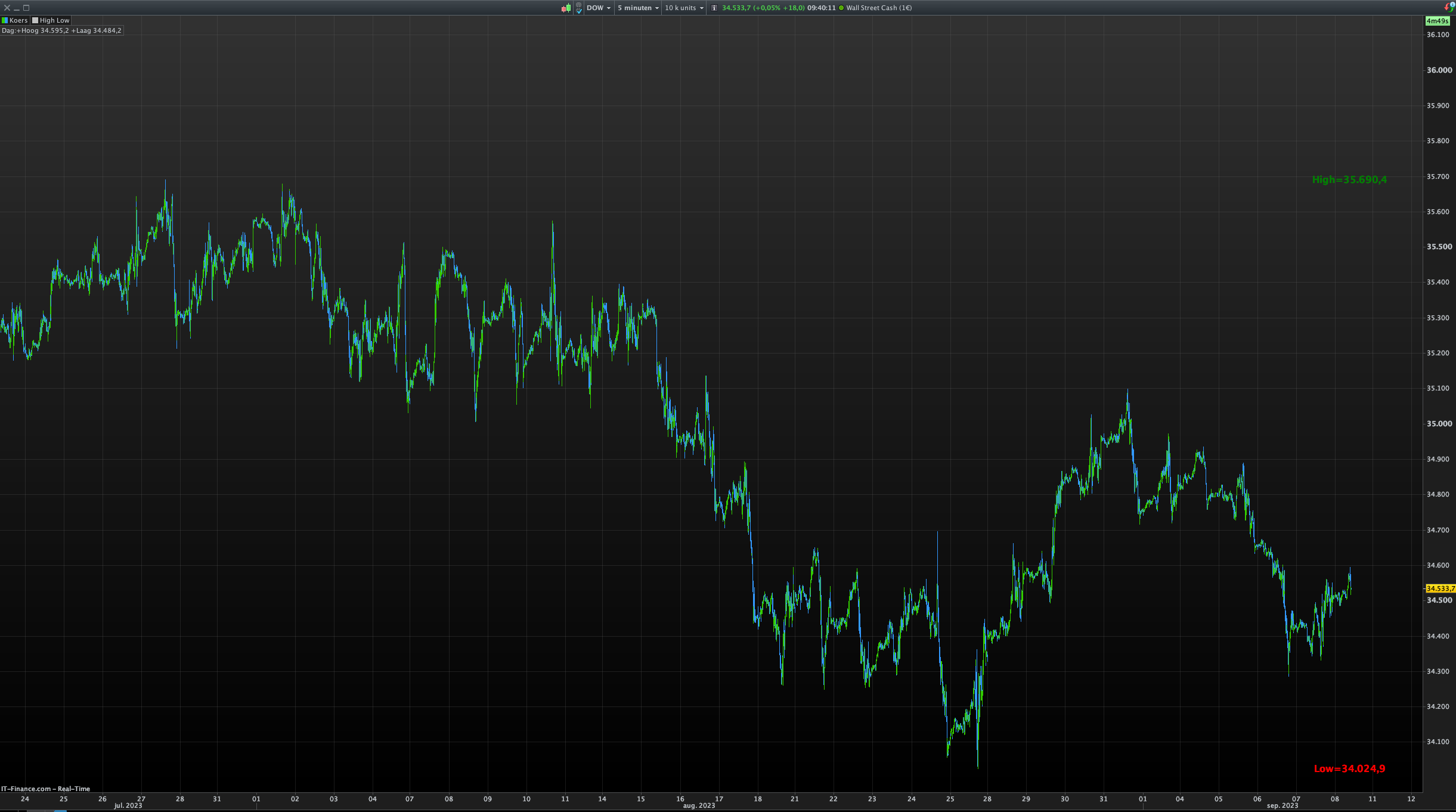

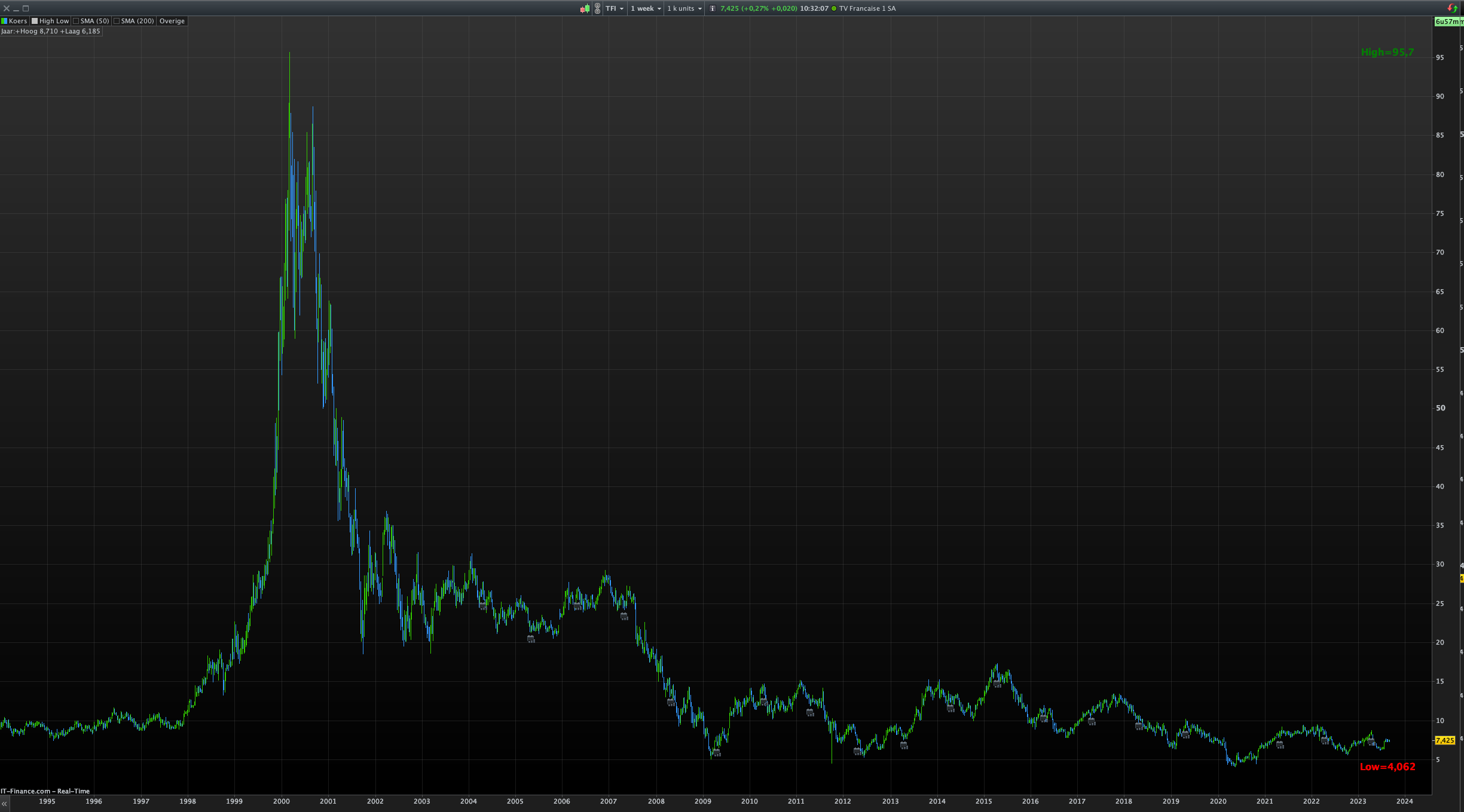

  Because you use 1k units with a timeframe of a week (28 years of history), the “High” and “Low” are far out of the picture (but they are there)… Try it with fewer number of units so that the values come into view…



  JS

  Participant

  Topics: 26

  Replies: 1715

  Been thanked: 777 times
  09/08/2023 at 9:36 AM #220556
  PeterSt

  JS wrote:

  You can use the “BarIndex” to determine the high and the Low…

  That would not be of the chart; it would be of the internal data the chart is fed with. benkunz asks for the viewport of the chart.
  As far as I know this is not possible (although I would be able to make some surrogate hence “almost right” thing).

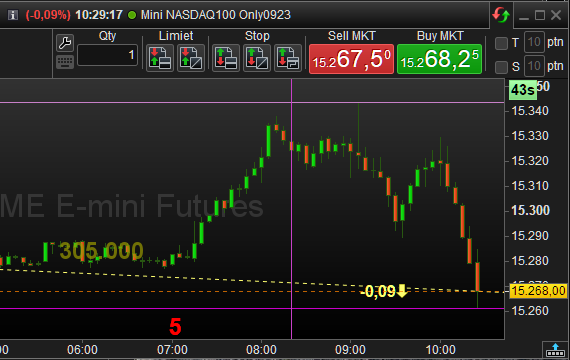

  benkunz, maybe consider why you would want this. A high-low is the most normal thing to want. But not from a random chart-width (for number of bars). Please look below, at the purple lines. Have a special look at the vertical purple line. This is where the high-low calculation starts in my case. For this chart 25 bars (25 x 5 minutes in this case) ago.
  What you want would be far more sophisticated. It would require the knowledge of the first bar on the chart and the last bar on the chart (while you scroll towards history and back). I don’t think that is possible.





  PeterSt

  Participant

  Topics: 73

  Replies: 2504

  Been thanked: 806 times
  09/08/2023 at 10:03 AM #220560
  JS

  Hi @benkunz

  Then you better wait for the “almost right” solution from PeterSt…



  JS

  Participant

  Topics: 26

  Replies: 1715

  Been thanked: 777 times
  09/08/2023 at 11:13 AM #220568
  Zigo

  Its a very usefull tool in option strategies.

  1 user thanked author for this post.

  JS



  Zigo

  Participant

  Topics: 24

  Replies: 343

  Been thanked: 63 times
  09/08/2023 at 1:18 PM #220578
  benkunz

  what other option do I have to make the labels always visible ? here, I zoom in/out or scroll back in time, then the labels disappear



  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
  09/08/2023 at 1:26 PM #220579
  PeterSt

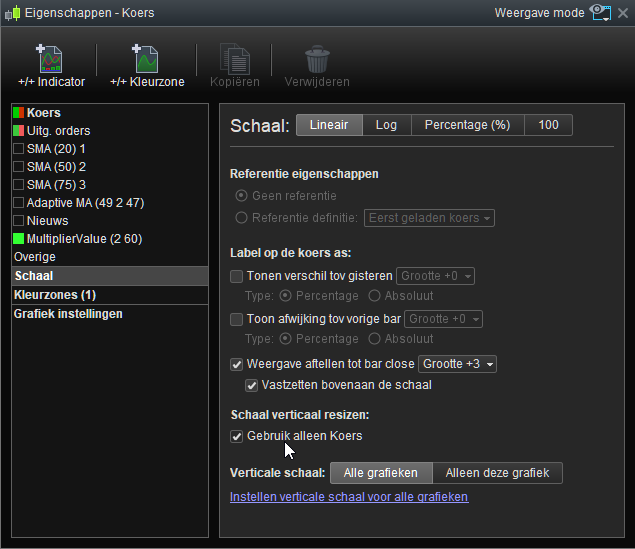

  Rightclick in the right-hand margin, then “configure this area” (bottom option) and then untick what you see at the mouse pointer.



  PeterSt

  Participant

  Topics: 73

  Replies: 2504

  Been thanked: 806 times
  09/08/2023 at 1:48 PM #220581
  benkunz

  How does the BarIndex variable work ?

  from what I read, it is supposed to count the number of candles on the chart. But when I zoom in the reduce the number of candles on my screen, the BarIndex still shows the same value. I added this to the indicator to follow the value of BarIndex :

  DrawText(BarIndex,BarIndex,xLow+100,SansSerif,Bold,16)Coloured(“Red”)



  benkunz

  Participant

  Topics: 23

  Replies: 69

  Been thanked: 2 times
