  Hello PRT community,

  I would very much appreciate some assistance with coding in PRT for a simple breakout screener. I have tried many ways to do this without success.

  I would like to code the following for a Daily System:

  For a long position:

  1. The Supertrend(5,15) to be above the high of the previous 7 days and
  2. The Supertrend (5,15) to be the same for the previous seven days; and
  3. The supertrend (5,15) of the current day is below the low of the current day; and
  4. The close of the current day is greater that the Supertrend(5,15) of the previous 7 days; and
  5. The close of the current day is greater than the open of the current day.

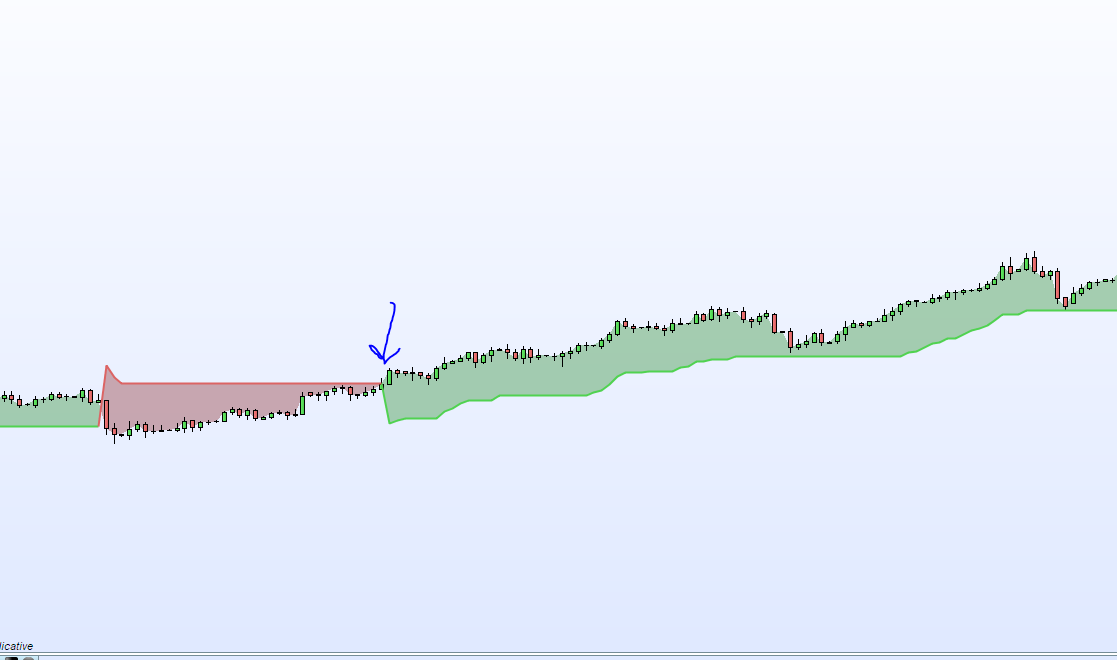

  The long position looks to identify the candle identified by the arrow in the chart below:

  The Short position is essentially the opposite of the Long position:

  1. The Supertrend(5,15) to be below the low of the previous 7 days and
  2. The Supertrend (5,15) to be the same for the previous seven days; and
  3. The supertrend (5,15) of the current day is above the high of the current day; and
  4. The close of the current day is less that the Supertrend(5,15) of the previous 7 days; and
  5. The close of the current day is less than the open of the current day.

  Thank you for your time and assistance.



  APM2023

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  04/18/2020 at 11:48 AM #126719
  Nicolas

  Here is the code for that breakout screener from consolidation. Signals are identified separately in the ProScreener sorting criteria column: 1 = bullish breakout ; -1 = bearish breakout

  st = Supertrend[5,15] b1 = summation[7](st>high)[1]=7 b2 = summation[7](st=st[1])[1]=7 b3 = st<low b4 = close>highest[7](st)[1] b5 = close>open buyc = b1 and b2 and b3 and b4 and b5 s1 = summation[7](st<low)[1]=7 s2 = summation[7](st=st[1])[1]=7 s3 = st>high s4 = close<lowest[7](st)[1] s5 = close<open sellc = -(s1 and s2 and s3 and s4 and s5) screener[buyc or sellc<0](buyc+sellc)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  st = Supertrend[5,15]   b1 = summation[7](st>high)[1]=7 b2 = summation[7](st=st[1])[1]=7 b3 = st<low b4 = close>highest[7](st)[1] b5 = close>open   buyc = b1 and b2 and b3 and b4 and b5   s1 = summation[7](st<low)[1]=7 s2 = summation[7](st=st[1])[1]=7 s3 = st>high s4 = close<lowest[7](st)[1] s5 = close<open   sellc = -(s1 and s2 and s3 and s4 and s5)   screener[buyc or sellc<0](buyc+sellc)







  Nicolas

  Keymaster

  Topics: 81

  Replies: 20864

  Been thanked: 4777 times
  04/21/2020 at 7:20 AM #127170
  APM2023

  Nicolas,

  Thank you very much for your assistance. With all the attempts in the world I do not believe I would have been able to work out the coding.
