Slope issues with divergence indicator

• 10/06/2022 at 2:21 AM #201969
  tabarrington

  Hello,

  I am having a few issues trying to code an indicator. It will be a divergence indicator when its done but at the moment I am just trying to have the indicator plot a slope so I can find the value of this slope at any given point in time. All I am focusing on in the code below at the moment is when prices have made a lower high and RSI has made a higher high.

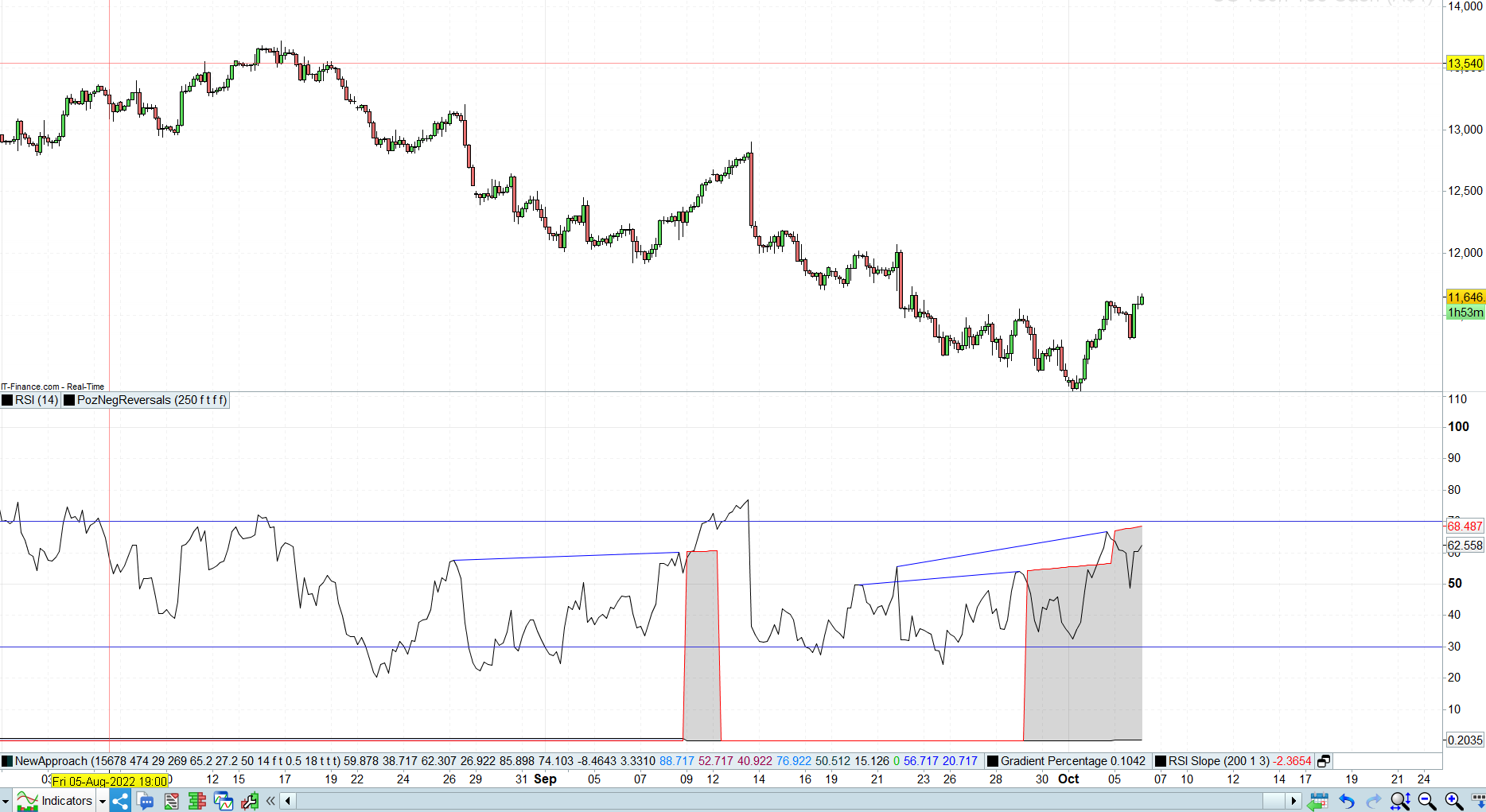

  As youll see in the screenshots Im not having an issue drawing a segment when these conditions are true but I am having trouble plotting my slope line, I can only get it to plot this line AFTER the event has occurred as you can see in the red lines which have been shaded grey. The blue lines are my drawsegment lines which are working well.

  The reason I want my slope lines is so I can make sure no other RSI has crossed over these line during the time they are active….

  Im sure my coding clunky and inefficient to look at for anyone to look at but with my very limited experience its the best I’ve managed to do.

  Any advice would be greatly appreciated so I can learn how to do this better.

  Thanks in advance!

  DEFPARAM CalculateOnLastBars = 1000 //DEFPARAM DrawOnLastBarOnly = true myrsi = rsi[14](close) PivotBAR = 2 LookBack = 4 BarLookBack = PivotBAR + 1 //IF myrsi[PivotBAR] < lowest[LookBack](myrsi)[BarLookBack] THEN //IF myrsi[PivotBAR] = lowest[BarLookBack](myrsi) THEN //PrevSupp3 = PrevSupp2 //PrevSuppRSI3 = PrevSuppRSI2 //PrevSupp2 = PrevSupp1 //PrevSuppRSI2 = PrevSuppRSI1 //PrevSupp1 = PrevSupp //PrevSuppRSI1 = PrevSuppRSI //PrevSupp = MySupport //PrevSuppRSI = SupportRSI //MySupport = BarIndex - PivotBAR //SupportRSI = myrsi[PivotBAR] //ENDIF //ENDIF IF myrsi[PivotBAR] > highest[LookBack](myrsi)[BarLookBack] and myrsi[PivotBar]>48 THEN IF myrsi[PivotBAR] = highest[BarLookBack](myrsi) THEN Index4 = Index3 RSI4 = RSI3 Pricepoint4 =Pricepoint3 Index3 = Index2 RSI3 = RSI2 Pricepoint3 =Pricepoint2 Index2 = Index1 RSI2 = RSI1 Pricepoint2 =Pricepoint1 Index1 = Index0 RSI1 = RSI0 Pricepoint1 = Pricepoint0 Index0 = BarIndex - PivotBAR RSI0 = myrsi[PivotBAR] Pricepoint0 = high[PivotBAR] //Slope = (PrevResRSI-RSI0)/(Index0-PrevRes) //y = PrevResRSI-((barindex-PrevRes)*Slope) ENDIF endif If Pricepoint0<Pricepoint1 and RSI0>RSI1 and ya then DRAWSEGMENT(Index1,RSI1,Index0,RSI0) COLOURED(0,0,255) //Diagonal frm 1-0 Slope = (RSI0-RSI1)/(Index0-Index1) y = RSI1+((barindex-Index1)*Slope) else y=0 endif if Pricepoint0<Pricepoint2 and RSI0>RSI2 and yb then DRAWSEGMENT(Index2,RSI2,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 2-0 Slope2 = (RSI0-RSI2)/(Index0-Index2) y2 = RSI2+((barindex-Index2)*Slope2) else y2=0 endif if Pricepoint0<Pricepoint3 and RSI0>RSI3 and yc then DRAWSEGMENT(Index3,RSI3,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 3-0 Slope3 = (RSI0-RSI3)/(Index0-Index3) y3 = RSI3+((barindex-Index3)*Slope3) else y3 = 0 endif if Pricepoint0<Pricepoint4 and RSI0>RSI4 and yd then DRAWSEGMENT(Index4,RSI4,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 4-0 Slope4 = (RSI0-RSI4)/(Index0-Index4) y4 = RSI4+((barindex-Index4)*Slope4) else y4=0 endif RETURN Slope2 as "slope", y2 as "y" style(line,1)COLOURED(255,0,0)//y as "ya", y2 as "yb", y3 as "yc", y4 as "yd"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86

  DEFPARAM CalculateOnLastBars = 1000 //DEFPARAM DrawOnLastBarOnly   = true myrsi = rsi[14](close) PivotBAR    = 2 LookBack    = 4 BarLookBack = PivotBAR + 1 //IF myrsi[PivotBAR] < lowest[LookBack](myrsi)[BarLookBack] THEN //IF myrsi[PivotBAR] = lowest[BarLookBack](myrsi) THEN //PrevSupp3       = PrevSupp2 //PrevSuppRSI3  = PrevSuppRSI2 //PrevSupp2       = PrevSupp1 //PrevSuppRSI2  = PrevSuppRSI1 //PrevSupp1       = PrevSupp //PrevSuppRSI1  = PrevSuppRSI //PrevSupp        = MySupport //PrevSuppRSI   = SupportRSI //MySupport       = BarIndex - PivotBAR //SupportRSI    = myrsi[PivotBAR] //ENDIF //ENDIF IF myrsi[PivotBAR] > highest[LookBack](myrsi)[BarLookBack] and myrsi[PivotBar]>48 THEN IF myrsi[PivotBAR]  = highest[BarLookBack](myrsi) THEN Index4              = Index3 RSI4                  = RSI3 Pricepoint4           =Pricepoint3     Index3              = Index2 RSI3                  = RSI2 Pricepoint3           =Pricepoint2     Index2              = Index1 RSI2                  = RSI1 Pricepoint2           =Pricepoint1   Index1               = Index0 RSI1                  = RSI0 Pricepoint1           = Pricepoint0   Index0          = BarIndex - PivotBAR RSI0                  = myrsi[PivotBAR] Pricepoint0           = high[PivotBAR]       //Slope = (PrevResRSI-RSI0)/(Index0-PrevRes) //y = PrevResRSI-((barindex-PrevRes)*Slope)   ENDIF endif     If Pricepoint0<Pricepoint1 and RSI0>RSI1 and ya then DRAWSEGMENT(Index1,RSI1,Index0,RSI0) COLOURED(0,0,255) //Diagonal frm 1-0 Slope = (RSI0-RSI1)/(Index0-Index1) y = RSI1+((barindex-Index1)*Slope) else y=0 endif   if Pricepoint0<Pricepoint2 and RSI0>RSI2 and yb then DRAWSEGMENT(Index2,RSI2,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 2-0 Slope2 = (RSI0-RSI2)/(Index0-Index2) y2 = RSI2+((barindex-Index2)*Slope2) else y2=0 endif   if Pricepoint0<Pricepoint3 and RSI0>RSI3 and yc then DRAWSEGMENT(Index3,RSI3,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 3-0 Slope3 = (RSI0-RSI3)/(Index0-Index3) y3 = RSI3+((barindex-Index3)*Slope3) else y3 = 0 endif   if Pricepoint0<Pricepoint4 and RSI0>RSI4 and yd then DRAWSEGMENT(Index4,RSI4,Index0,RSI0) COLOURED(0,0,255)//Diagonal from 4-0 Slope4 = (RSI0-RSI4)/(Index0-Index4) y4 = RSI4+((barindex-Index4)*Slope4) else y4=0 endif   RETURN Slope2 as "slope", y2 as "y" style(line,1)COLOURED(255,0,0)//y as "ya", y2 as "yb", y3 as "yc", y4 as "yd"
