Steve Nison method indicator

• 09/18/2021 at 1:36 PM #177841
  Suzu Yuk

  I would like to exchange ideas on how to program Steve Nison’s candlestick pattern.

  // YS-CandlesPatternV1.0 //(choose 0=No Trend check, 1=MACD, 2=SAR, 3=Directional Movement, 4=Moving Averages crossing [default], 5=Stochastic) TDS=4 //text color // white = 255,255,255 ; black = 0,0,0 r = 0 g = 0 b = 0 atr = averagetruerange[10](close)*0.5 body=close-open abody=abs(body) if range>0 then ratio=abody/range else ratio=0 endif middle=(open+close)/2 if body>0 then bodytop=close bodybottom=open else bodytop=open bodybottom=close endif shadowtop=high-bodytop shadowbottom=bodybottom-low longcandle= (ratio>0.6) DojiSize = 0.05 data=(abs(open - close) <= (high - low) * DojiSize) if data then DRAWTEXT("Dji", barindex, high+atr*dis1, Dialog, Standard, 12) COLOURED(R,G,B, fade1) endif if close[1]<close and close<open[1] and close[1]<open and open<open[1] then Hara=3 else Nohara=4 endif //Trend Detection if TDS=0 then TrendUp=1 TrendDown=1 else if TDS=1 then TrendUp=(MACDline[12,26,9](close)>0 AND MACD[12,26,9](close)>0) TrendDown=(MACDline[12,26,9](close)<0 AND MACD[12,26,9](close)<0) else if TDS=2 then TrendUp=(SAR[0.02,0.02,0.2]<low) TrendDown=(SAR[0.02,0.02,0.2]>high) else if TDS=3 then TrendUp=(ADX[14]>23 AND DI[14](close)>0) TrendDown=(ADX[14]>23 AND DI[14](close)<0) else if TDS=4 then TrendUp=(ExponentialAverage[2](close)>ExponentialAverage[4](close)) TrendDown=(ExponentialAverage[2](close)<ExponentialAverage[4](close)) else if TDS=5 then TrendUp=(Stochastic[14,3](close)>Average[5](Stochastic[14,3](close))) TrendDown=(Stochastic[14,3](close)<Average[5](Stochastic[14,3](close))) endif endif endif endif endif endif size1=10 y=20 size3=30 fade1=10 fade2=100 fade3=200 dis1=1 dis15=1.5 dis2=2 dis3=5 dis4=10 ////Bearish Signal Falling3Method2 p142 if (open[5]>close[5] AND close[5]<open[4] and open[4]<open[3] and open[3]<open[2] and open[2]<open[1] and close[1]<open AND open>close) or (open[4]>close[4] AND close[4]<open[3] and open[3]>open[2] and open[2]>open[1] and close[1]<open AND open>close) or (open[3]>close[3] AND close[3]<open[2] and open[2]>open[1] and close[1]<open AND open>close)then DRAWTEXT("Falling3Method1",barindex,high[1]+atr*dis1, Dialog, Standard, 10) COLOURED(255,0,0,fade2) DRAWARROWdown(barindex,high[1]) COLOURED(255,0,0,fade3) endif Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94

  // YS-CandlesPatternV1.0 //(choose 0=No Trend check, 1=MACD, 2=SAR, 3=Directional Movement, 4=Moving Averages crossing [default], 5=Stochastic) TDS=4 //text color // white = 255,255,255 ; black = 0,0,0 r = 0 g = 0 b = 0 atr = averagetruerange[10](close)*0.5 body=close-open abody=abs(body)   if range>0 then ratio=abody/range else ratio=0 endif   middle=(open+close)/2   if body>0 then bodytop=close bodybottom=open else bodytop=open bodybottom=close endif   shadowtop=high-bodytop   shadowbottom=bodybottom-low   longcandle= (ratio>0.6)   DojiSize = 0.05 data=(abs(open - close) <= (high - low) * DojiSize) if data then DRAWTEXT("Dji", barindex, high+atr*dis1, Dialog, Standard, 12) COLOURED(R,G,B, fade1) endif if close[1]<close and close<open[1] and close[1]<open and open<open[1] then Hara=3 else Nohara=4 endif   //Trend Detection if TDS=0 then TrendUp=1 TrendDown=1 else if TDS=1 then TrendUp=(MACDline[12,26,9](close)>0 AND MACD[12,26,9](close)>0) TrendDown=(MACDline[12,26,9](close)<0 AND MACD[12,26,9](close)<0) else if TDS=2 then TrendUp=(SAR[0.02,0.02,0.2]<low) TrendDown=(SAR[0.02,0.02,0.2]>high) else if TDS=3 then TrendUp=(ADX[14]>23 AND DI[14](close)>0) TrendDown=(ADX[14]>23 AND DI[14](close)<0) else if TDS=4 then TrendUp=(ExponentialAverage[2](close)>ExponentialAverage[4](close)) TrendDown=(ExponentialAverage[2](close)<ExponentialAverage[4](close)) else if TDS=5 then TrendUp=(Stochastic[14,3](close)>Average[5](Stochastic[14,3](close))) TrendDown=(Stochastic[14,3](close)<Average[5](Stochastic[14,3](close))) endif endif endif endif endif endif size1=10 y=20 size3=30 fade1=10 fade2=100 fade3=200 dis1=1 dis15=1.5 dis2=2 dis3=5 dis4=10   ////Bearish Signal Falling3Method2  p142 if (open[5]>close[5] AND close[5]<open[4] and open[4]<open[3] and open[3]<open[2] and open[2]<open[1] and close[1]<open AND open>close) or (open[4]>close[4] AND close[4]<open[3] and open[3]>open[2] and open[2]>open[1] and close[1]<open AND open>close) or (open[3]>close[3] AND close[3]<open[2] and open[2]>open[1] and close[1]<open AND open>close)then DRAWTEXT("Falling3Method1",barindex,high[1]+atr*dis1, Dialog, Standard, 10) COLOURED(255,0,0,fade2) DRAWARROWdown(barindex,high[1]) COLOURED(255,0,0,fade3) endif   Return

  The those three middle white candles (open[3]<close[3] AND close[3]>open[2] and open[2]<open[1] and close[1]>open AND open<close) can possibly continue not only 3 but also 7, 8, 9… middle candles. Then, the code will be too long to express it.

  Alternatively, I have re-coded it using the while loop as the below.

  //Bearish Signal Falling3Method2 p126////////////////////////////////////////////////////////////////////// i=1 while (open[i+4]>close[i+3] AND close[i+3]<open[i+2] and open[i+2]>open[i+1] and close[i+1]<open AND open>close) and i < 30 DO i=i+1 DRAWTEXT("Falling3Method2", barindex,low[1]-atr*dis2, Dialog, Standard, 10) COLOURED(0,155,10,fade2) DRAWARROWUP(barindex,low[1]-atr*dis1) COLOURED(0,155,10,fade2) Wend

  1 2 3 4 5 6 7

  //Bearish Signal Falling3Method2 p126////////////////////////////////////////////////////////////////////// i=1 while (open[i+4]>close[i+3] AND close[i+3]<open[i+2] and open[i+2]>open[i+1] and close[i+1]<open AND open>close) and i < 30 DO i=i+1 DRAWTEXT("Falling3Method2", barindex,low[1]-atr*dis2, Dialog, Standard, 10) COLOURED(0,155,10,fade2) DRAWARROWUP(barindex,low[1]-atr*dis1) COLOURED(0,155,10,fade2) Wend

  But it has been unsuccessful. I would appreciate it very much if there is any advice to make it shorter code. Thank you.









  Suzu Yuk

  Participant

  Topics: 4

  Replies: 16

  Been thanked: 2 times
  09/18/2021 at 4:17 PM #177851
  robertogozzi

  This is the “Rising Three”. I added a minimum BODY size for the first and last candles. If you don’t want to apply it then uncomment line 5:

  Bullish = close > open Bearish = close < open Body = abs(close - open) MinSize = average[100](Body) //MinSize = 0 BarID = 0 //detect the BULLISH candle prior to the current one FOR i = 1 TO BarIndex //if found, then all other canndles in between the two bullish ones can be checked IF Bullish[i] THEN BarID = i //ID of the leftmost bullish candle and... hh = high[i] //... its data ll = low[i] Size = range[i] IF Size < MinSize THEN //check if its size is large enough... BarID = 0 //... or exit Break ENDIF IF BarID >= 3 THEN //now check the 2+ candles in betweeen... FOR j = (BarID - 1) DOWNTO 1 //... which must ALL be within the range of the leftmost Bullish candle... IF not ((high[j] <= hh) AND (low[j] >= ll)) THEN BarID = 0 //... or exit break ENDIF NEXT ELSE BarID = 0 //no pattern found if there are lesss than 2 Bearish candles in between ENDIF Break ENDIF NEXT IF BarID >= 3 THEN L1 = (close > close[BarID]) L2 = (open > close[1]) IF Body < MinSize THEN //no pattern found if also the current (rightmost) Bullish bar is < to the minimum Size L1 = 0 ENDIF Cond = L1 AND L2 ELSE Cond = 0 ENDIF RETURN Cond AS "Three Rising"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

  Bullish = close > open Bearish = close < open Body    = abs(close - open) MinSize = average[100](Body) //MinSize = 0 BarID   = 0 //detect the BULLISH candle prior to the current one FOR i = 1 TO BarIndex    //if found, then all other canndles in between the two bullish ones can be checked    IF Bullish[i] THEN       BarID = i                     //ID of the leftmost bullish candle and...       hh    = high[i]               //... its data       ll    = low[i]       Size  = range[i]       IF Size < MinSize THEN        //check if its size is large enough...          BarID = 0                     //... or exit          Break       ENDIF       IF BarID >= 3 THEN           //now check the 2+ candles in betweeen...          FOR j = (BarID - 1) DOWNTO 1 //... which must ALL be within the range of the leftmost Bullish candle...             IF not ((high[j] <= hh) AND (low[j] >= ll)) THEN                BarID = 0              //... or exit                break             ENDIF          NEXT       ELSE          BarID = 0                    //no pattern found if there are lesss than 2 Bearish candles in between       ENDIF       Break    ENDIF NEXT IF BarID >= 3 THEN    L1   = (close > close[BarID])    L2   = (open > close[1])    IF Body < MinSize THEN        //no pattern found if also the current (rightmost) Bullish bar is < to the minimum Size       L1 = 0    ENDIF    Cond = L1 AND L2 ELSE    Cond = 0 ENDIF RETURN Cond AS "Three Rising"



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17151

  Been thanked: 4040 times
  09/19/2021 at 8:13 AM #177884
  Suzu Yuk

  Thank you very much for your advice. It looks great idea. I will have a look into it.

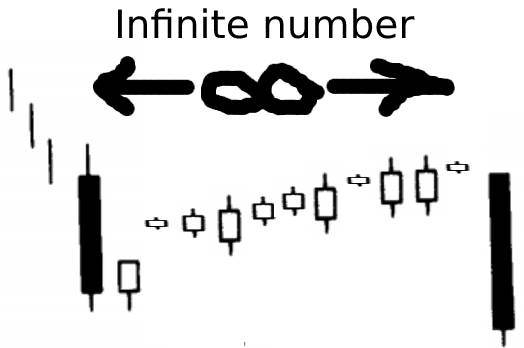

  However, for others, here is a more clear picture of what I am trying to do. The challenge is that how can we express the possibly large number of white candle bars (not only 3 bars) as code, using while or for a loop.



  Suzu Yuk

  Participant

  Topics: 4

  Replies: 16

  Been thanked: 2 times
  09/19/2021 at 8:37 AM #177887
  Suzu Yuk

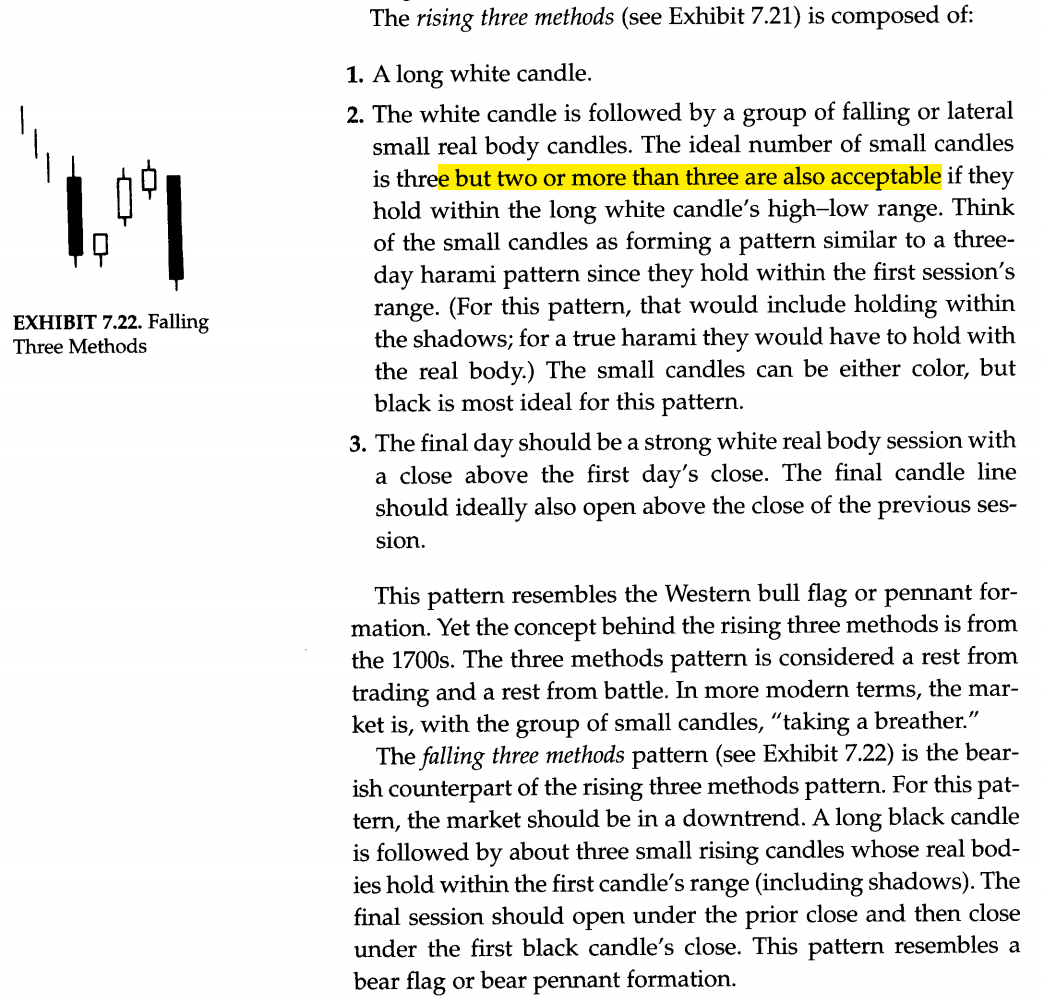

  Reference: Steve-Nison-Japanese-Candlestick-Charting-Techniques-Prentice-Hall-Press-2001_1



  Suzu Yuk

  Participant

  Topics: 4

  Replies: 16

  Been thanked: 2 times
  09/19/2021 at 12:52 PM #177907
  Suzu Yuk

  Here is a more calibrated version of the original code with Ticker DAX 10ticks chart for Bearish Signal Falling 2 Method up to Falling 7 Method. Still looking for a shorter code of this…





  Suzu Yuk

  Participant

  Topics: 4

  Replies: 16

  Been thanked: 2 times
  09/19/2021 at 2:27 PM #177915
  robertogozzi

  My code can find any number of inside candles, from 2 on…

  You code seems not to be correct, as the rule says that ALL inside candles must be within the RANGE of the leftmost candle in the pattern.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17151

  Been thanked: 4040 times
  09/22/2021 at 10:37 AM #178094
  robertogozzi

  I have coded a version detecting both the FALLING and the RISING method, any candle in between from 2 to… N.

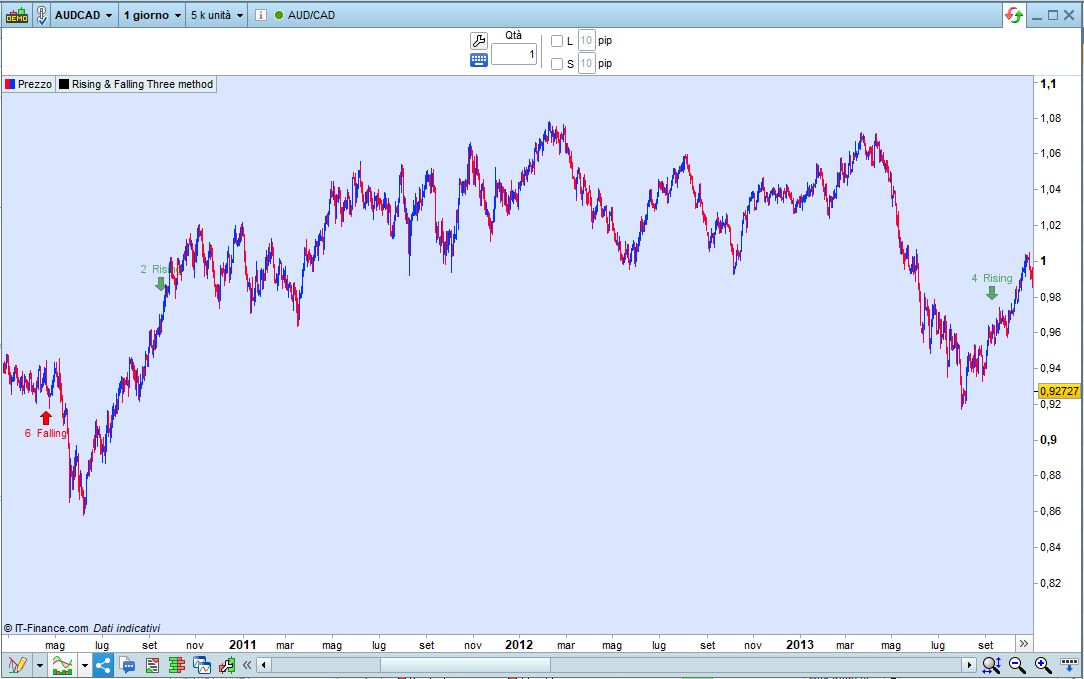

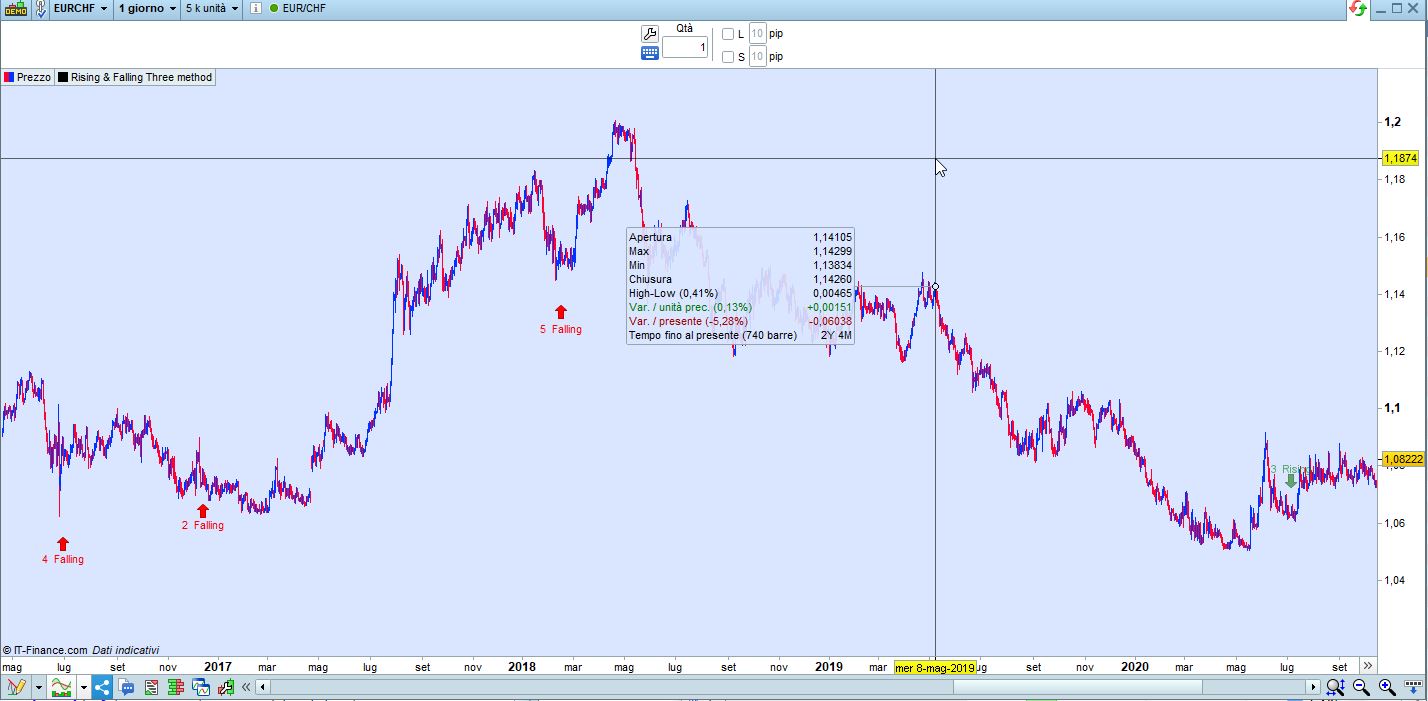

  I have attached 3 pics of the indicator as it shows on charts and the two ITF files (screener + indicator).



  1 user thanked author for this post.

  Suzu Yuk



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17151

  Been thanked: 4040 times
