Support and resistance MTF

• 02/11/2021 at 3:19 PM #161095
  Soyouzzz1

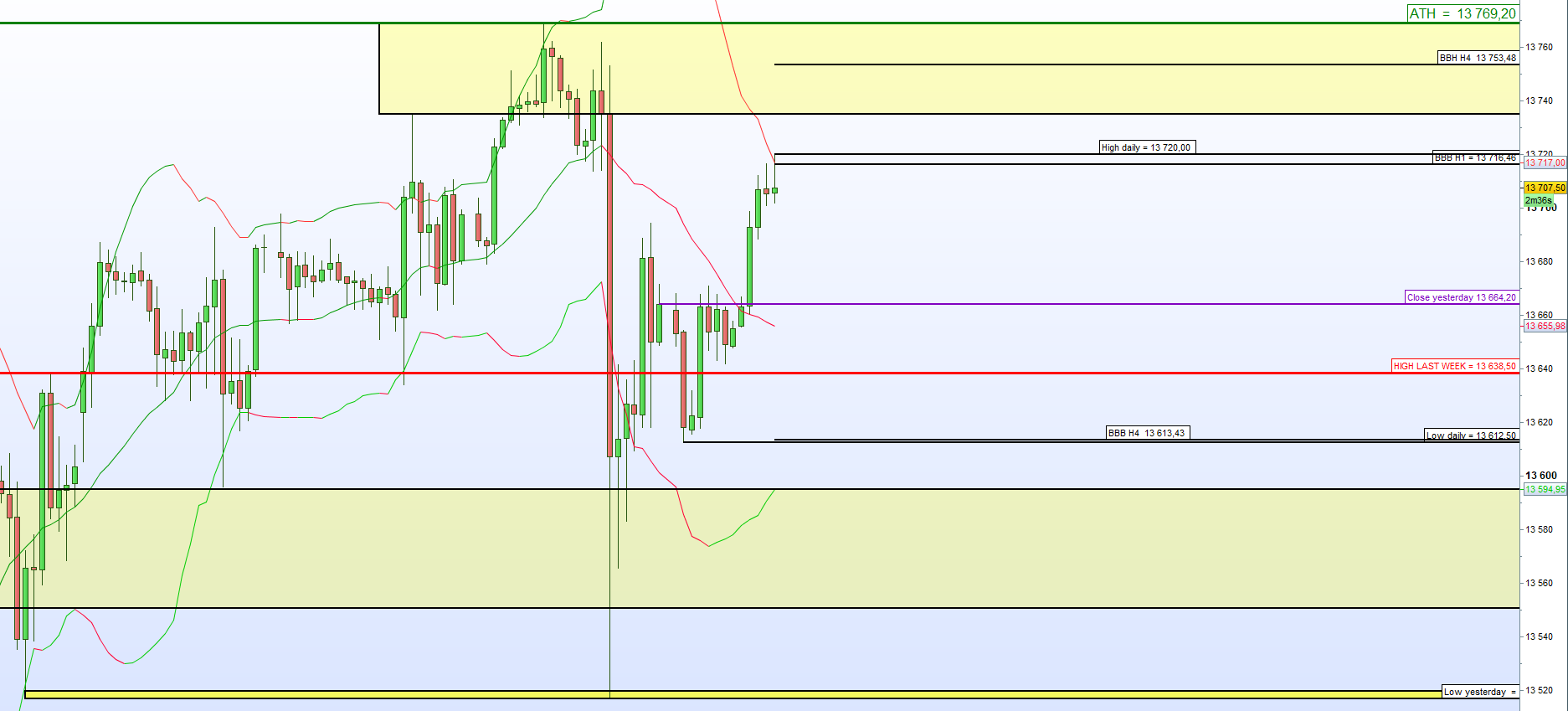

  Hello, is it possible to create an indicator to automatically display :

  – the highest and the lowest of the day
  – Highest and lowest of the previous day
  – the open of the day (3:30 pm for US futures, 08:00 am for European futures)
  – the close (10:00pm) of the previous day
  – week’s high and week’s low
  – last week’s highs and lows
  – ATH
  – the high and low Bollinger bands in 15min, H1, H4 and daily, only if they close (High Bollinger is >= High Bollinger [1] and the opposite for the low Bollinger bands
  – moving averages 20 in H1, H4 and daily only if they rise (sma20>sma20 [1] and are above their sma50, or they fall and are below their sma50



  2 important points :

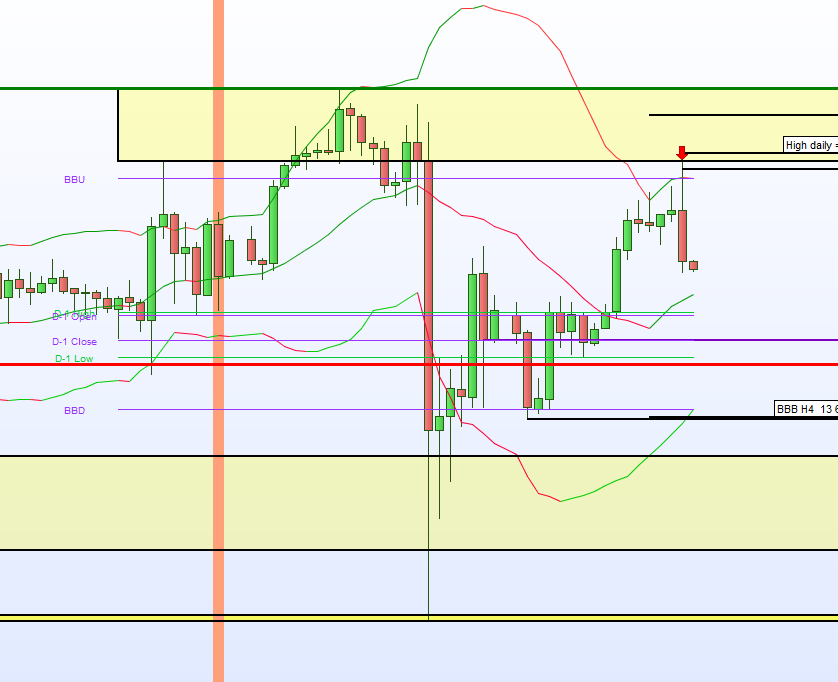

  1. The levels should not be drawn by horizontal lines but by segments that start from the point and go only to the right of the graph (as on the screenshot).

  2. Bollinger and moving average bands should appear in their TF and in the lower TF but not in the upper TF (ex: an SMA20 in H1 appears in H1, 15min, 5min… but not in H2, H4…).



  Such an indicator will help the whole community to detect the most likely bounce levels.

  Thank you for your help.





  Soyouzzz1

  Participant

  Topics: 6

  Replies: 19

  Been thanked: 1 time
  02/11/2021 at 4:14 PM #161106
  Soyouzzz1

  I started using parts of the code found on the site and on the PRT documentation but there are several problems:

  1. The code is unstable.

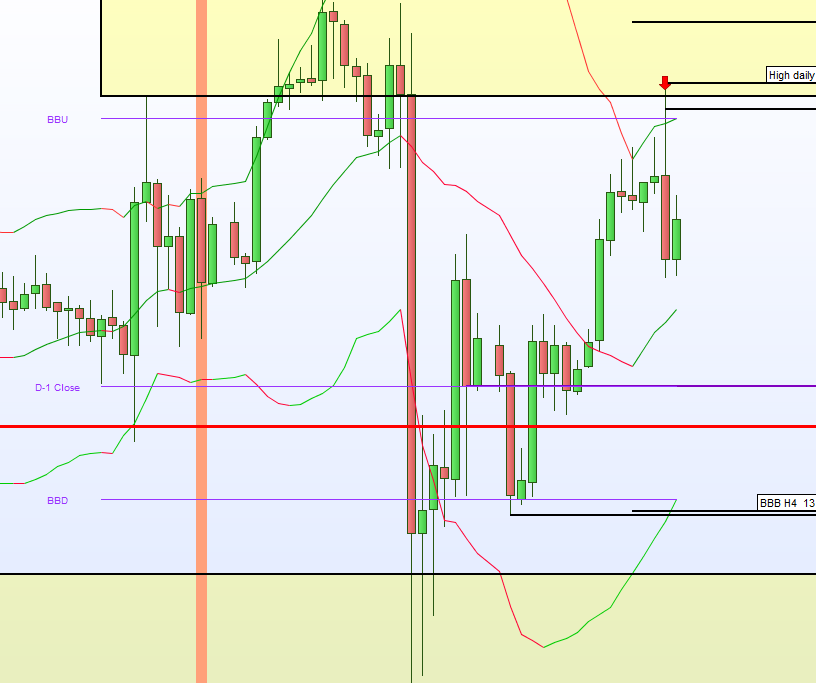

  Sometimes it displays the open/close of the previous day but these levels are erased a few seconds later.

  2. The previous day’s highs/lows are not at the right levels.

  3. When I try to put the bollinger bands on when they tighten they don’t show up anymore.

  4. I don’t know how to display the levels only on the lower TFs.


  @nicolas, @vonasi and @robertogozzi, do you know how to solve these problems ?



  // Open/High/Low/Close/Bollinger Bands defparam drawonlastbaronly = true HighVT = DHigh(1) LowVT = DLow(1) OpenVT = DOpen(1) LowVT = DLow(1) BBU = BollingerUp[20](close) BBD = BollingerDown[20](close) IF TIME =220000 AND date=yesterday THEN CloseVT = Close else IF TIME =153000 AND date=yesterday THEN OpenVT = Open Endif endif //vertical offset to draw text correctly over horizontal lines Voffset = 0*pipsize //draw Open/High/Low/Close/Bollinger Bands Text DRAWTEXT("D-1 Close",barindex-54,CloseVT+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT("D-1 High",barindex-54,HighVT+Voffset,SansSerif,Standard,10)coloured(0,204,51) DRAWTEXT("D-1 Low",barindex-54,LowVT+Voffset,SansSerif,Standard,10)coloured(0,204,51) DRAWTEXT ("D-1 Open", barindex-54,OpenVT+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT ("BBU", barindex-54,BBU+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT ("BBD", barindex-54,BBD+Voffset,SansSerif,Standard,10)coloured(153,51,255) //draw Open/High/Low/Close/Bollinger Bands lines without extensions DRAWSEGMENT(barindex-50,CloseVT,barindex,CloseVT) coloured(153,51,255) DRAWSEGMENT(barindex-50,HighVT,barindex,HighVT) coloured(0,204,51) DRAWSEGMENT(barindex-50,LowVT,barindex,LowVT) coloured(0,204,51) DRAWSEGMENT(barindex-50,OpenVT,barindex,OpenVT) coloured(153,51,255) DRAWSEGMENT(barindex-50,BBU,barindex,BBU) coloured(153,51,255) DRAWSEGMENT(barindex-50,BBD,barindex,BBD) coloured(153,51,255) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  // Open/High/Low/Close/Bollinger Bands   defparam drawonlastbaronly = true   HighVT = DHigh(1) LowVT = DLow(1) OpenVT = DOpen(1) LowVT = DLow(1) BBU = BollingerUp[20](close) BBD = BollingerDown[20](close)   IF TIME =220000 AND date=yesterday THEN CloseVT = Close else IF TIME =153000 AND date=yesterday THEN OpenVT = Open Endif endif   //vertical offset to draw text correctly over horizontal lines Voffset = 0*pipsize //draw Open/High/Low/Close/Bollinger Bands  Text DRAWTEXT("D-1 Close",barindex-54,CloseVT+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT("D-1 High",barindex-54,HighVT+Voffset,SansSerif,Standard,10)coloured(0,204,51) DRAWTEXT("D-1 Low",barindex-54,LowVT+Voffset,SansSerif,Standard,10)coloured(0,204,51) DRAWTEXT ("D-1 Open", barindex-54,OpenVT+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT ("BBU", barindex-54,BBU+Voffset,SansSerif,Standard,10)coloured(153,51,255) DRAWTEXT ("BBD", barindex-54,BBD+Voffset,SansSerif,Standard,10)coloured(153,51,255)   //draw Open/High/Low/Close/Bollinger Bands lines without extensions DRAWSEGMENT(barindex-50,CloseVT,barindex,CloseVT) coloured(153,51,255) DRAWSEGMENT(barindex-50,HighVT,barindex,HighVT) coloured(0,204,51) DRAWSEGMENT(barindex-50,LowVT,barindex,LowVT) coloured(0,204,51) DRAWSEGMENT(barindex-50,OpenVT,barindex,OpenVT) coloured(153,51,255) DRAWSEGMENT(barindex-50,BBU,barindex,BBU) coloured(153,51,255) DRAWSEGMENT(barindex-50,BBD,barindex,BBD) coloured(153,51,255)   RETURN





  Soyouzzz1

  Participant

  Topics: 6

  Replies: 19

  Been thanked: 1 time
  02/11/2021 at 4:29 PM #161110
  Nicolas

  We are aware of an issue of OHLC of Daily timeframe when using DHigh, DLow, etc.. instruction. We are waiting for the update to fix that.

  1 user thanked author for this post.

  Soyouzzz1



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  02/11/2021 at 4:34 PM #161111
  Vonasi

  While we wait for the fix this workaround code might be of use to you:

  https://www.prorealcode.com/topic/a-code-about-highs-of-last-ten-days/#post-160998

  1 user thanked author for this post.

  Soyouzzz1



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  02/15/2021 at 4:13 PM #161508
  Soyouzzz1

  Thank you for the share 😉



  Soyouzzz1

  Participant

  Topics: 6

  Replies: 19

  Been thanked: 1 time
  02/15/2021 at 4:14 PM #161509
  Soyouzzz1

  Allright, I will wait. 🙂



  Soyouzzz1

  Participant

  Topics: 6

  Replies: 19

  Been thanked: 1 time
