Text Above Candles for Swing High and Swing Low

• 09/12/2022 at 3:15 PM #200627
  Kole96

  Hello, i’m new here, can somobody help me to write a code to have the value of the Swing High and Low above or under the Candles?

  thank you





  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/12/2022 at 3:36 PM #200628
  JS

  Hi @Kole96

  How do you define a swing high and a swing low?



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 781 times
  09/12/2022 at 3:42 PM #200630
  Kole96

  Swing High H2<H1 and H<H1

  Swing Low L2>L1 and L1<L



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/12/2022 at 4:25 PM #200638
  JS

  Ok, and how do you define the value of the swing?



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 781 times
  09/12/2022 at 4:39 PM #200639
  Kole96

  Jsut want to have the value displayed of a Pivothighs and Pivotlows above or below the candle like we have it with some indicators in tradingview.

  they display a value in a box with the arrow



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/12/2022 at 5:08 PM #200642
  JS

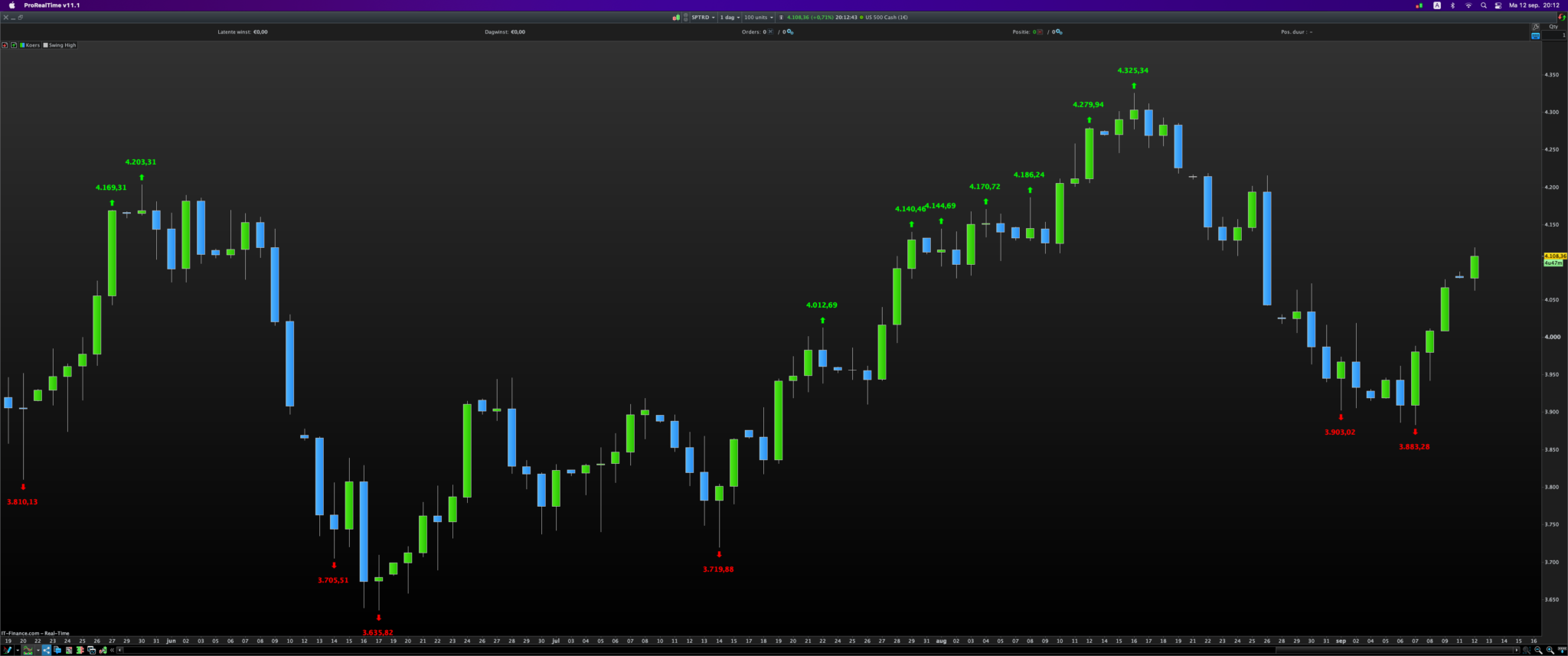

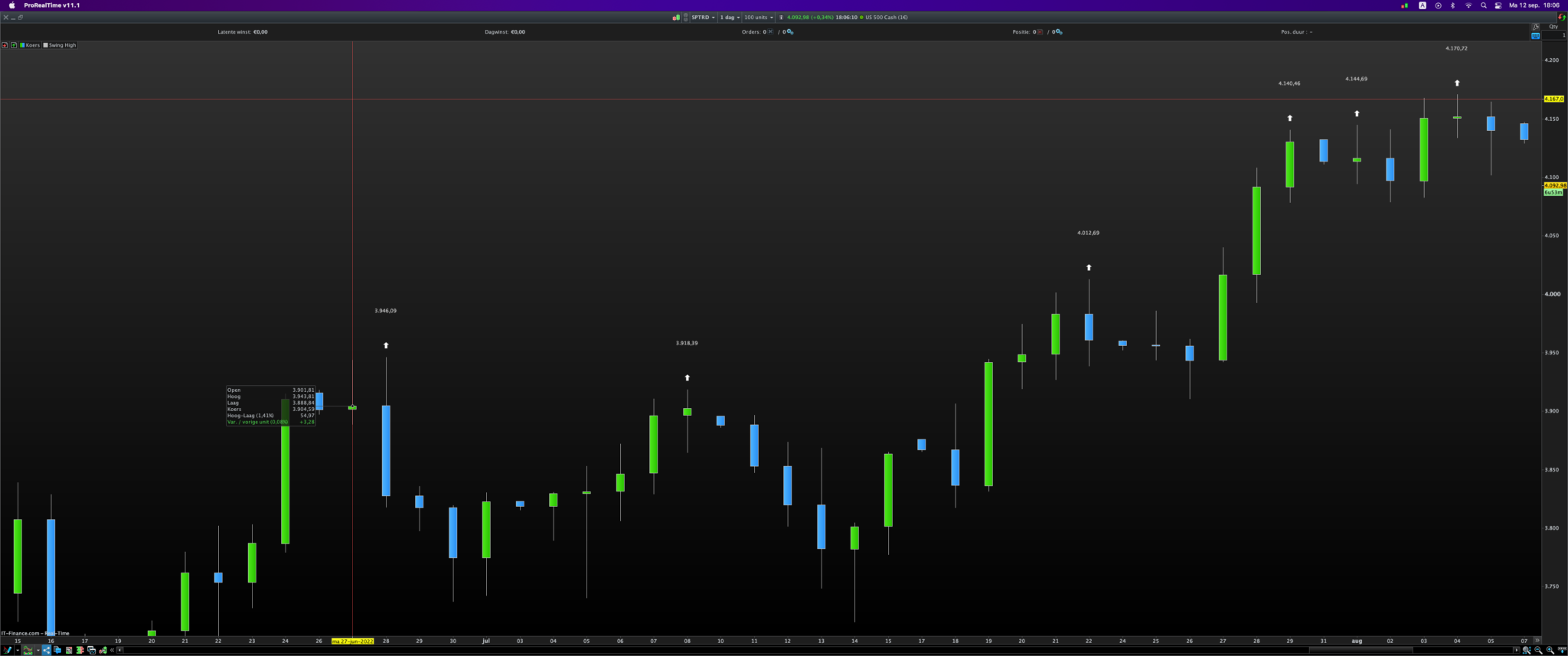

  Should it look something like this?

  (Here you only see the Swing High)



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 781 times
  09/12/2022 at 5:21 PM #200645
  Kole96

  Yes



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/12/2022 at 5:28 PM #200646
  JS

  OK, nice.

  I’m going to try to finish the indicator tonight.



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 781 times
  09/12/2022 at 5:28 PM #200647
  Kole96

  Thank you



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/12/2022 at 7:15 PM #200655
  JS

  Swing High Swing Low

  xPeriod = 20 If High[1] = Highest[xPeriod](High) and High[2] < High[1] and High < High[1] then SwingHigh = High[1] DrawArrowUP(BarIndex-1,High[1]+10) Coloured(0,255,0) DrawText("#SwingHigh#", BarIndex-1, High[1]+30,Dialog,Bold,15) Coloured(0,255,0) EndIf If Low[1] = Lowest[xPeriod](Low) and Low[2] > Low[1] and Low > Low[1] then SwingLow = Low[1] DrawArrowDown(BarIndex-1,Low[1]-10) Coloured(255,0,0) DrawText("#SwingLow#", BarIndex-1, Low[1]-30,Dialog,Bold,15) Coloured(255,0,0) EndIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

  xPeriod = 20   If High[1] = Highest[xPeriod](High) and High[2] < High[1] and High < High[1] then SwingHigh = High[1] DrawArrowUP(BarIndex-1,High[1]+10) Coloured(0,255,0) DrawText("#SwingHigh#", BarIndex-1, High[1]+30,Dialog,Bold,15) Coloured(0,255,0) EndIf   If Low[1] = Lowest[xPeriod](Low) and Low[2] > Low[1] and Low > Low[1] then SwingLow = Low[1] DrawArrowDown(BarIndex-1,Low[1]-10) Coloured(255,0,0) DrawText("#SwingLow#", BarIndex-1, Low[1]-30,Dialog,Bold,15) Coloured(255,0,0) EndIf   Return

  Hi @Kole96

  Swing High:

  1. Find the Highest High over the past 20 periods (the period is adjustable).
  2. Check if the previous candle makes a lower High than the Highest High.
  3. Check if the next candle makes a lower High than the Highest High

  In principle, they are simple conditions that can possibly be extended with additional conditions for more adjacent candles. There are now three candles involved in a swing and you could expand this to, for example, 5 candles.

  Swing Low is the mirror image of Swing High

  3 users thanked author for this post.

  ZeroCafeine, robertogozzi, Nicolas



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 781 times
  09/12/2022 at 9:05 PM #200660
  Kole96

  Oh thank you so much

  2 users thanked author for this post.

  Nicolas, JS



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  09/13/2022 at 5:30 PM #200725
  ZeroCafeine

  hi every one hi @JS

  I do some modification, but it’s just for learning and helping, what do you think about my code about : ù

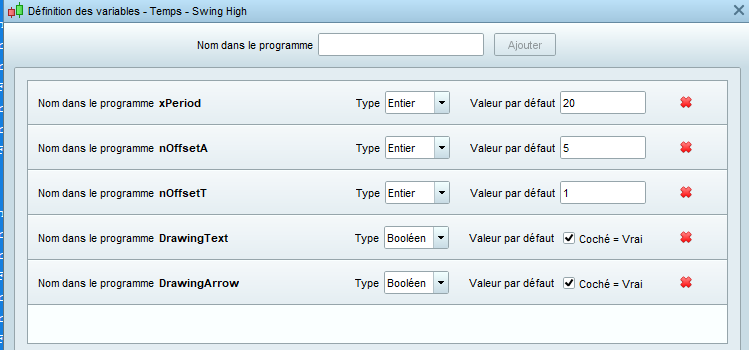

  – Drawing button, do you think it’s a goods idea, do have some tips ?
  – about IF condition, I aded tomuch condition, do you think it’s more helper for prt CPU or more complicated this way ?

  // Atributs : OffsetArrow = nOffsetA * pipsize OffsetText = nOffsetT * pipsize Pipi = pipsize // SwingHigh Condition C1 = High[1] = Highest[xPeriod](High) and High[2] < High[1] and High < High[1] // SwingLow Condition C2 = Low[1] = Lowest[xPeriod](Low) and Low[2] > Low[1] and Low > Low[1] IF C1 Then IF DrawingText Then DrawText("#SwingHigh#", BarIndex-1, High[1]+OffsetText,Dialog,Bold,15) Coloured(0,255,0) ENDIF IF DrawingArrow Then DrawArrowUP(BarIndex-1,High[1]+OffsetArrow) Coloured(0,255,0) ENDIF ENDIF IF C2 Then IF DrawingText Then DrawText("#SwingLow#", BarIndex-1, Low[1]-OffsetText,Dialog,Bold,15) Coloured(255,0,0) ENDIF IF DrawingArrow Then DrawArrowDown(BarIndex-1,Low[1]-OffsetArrow) Coloured(255,0,0) ENDIF ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

  // Atributs : OffsetArrow   = nOffsetA * pipsize OffsetText = nOffsetT * pipsize Pipi = pipsize   // SwingHigh Condition C1 = High[1] = Highest[xPeriod](High) and High[2] < High[1] and High < High[1] // SwingLow Condition C2 = Low[1] = Lowest[xPeriod](Low) and Low[2] > Low[1] and Low > Low[1]   IF C1 Then IF DrawingText Then DrawText("#SwingHigh#", BarIndex-1, High[1]+OffsetText,Dialog,Bold,15) Coloured(0,255,0) ENDIF IF DrawingArrow Then DrawArrowUP(BarIndex-1,High[1]+OffsetArrow) Coloured(0,255,0) ENDIF ENDIF   IF C2 Then IF DrawingText Then DrawText("#SwingLow#", BarIndex-1, Low[1]-OffsetText,Dialog,Bold,15) Coloured(255,0,0) ENDIF IF DrawingArrow Then DrawArrowDown(BarIndex-1,Low[1]-OffsetArrow) Coloured(255,0,0) ENDIF ENDIF   Return


  @Kole96 I hope this way with offset * pipsize will help you, tks to @robertogozzi he helped me one time with this tips

  2 users thanked author for this post.

  JS, robertogozzi



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/13/2022 at 5:41 PM #200727
  ZeroCafeine

  other question, I just trayed to use this code on a Daily chat but with Weekly time frame, and I got all the text and the arrow only in the bigining of the chat, how to solve this problem ? I think we have to get the position of weekly candle for draw ?

  1 user thanked author for this post.

  JS



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/13/2022 at 6:33 PM #200733
  robertogozzi

  At first glance I can’t find anything wrong.Try increasing the units up to 5K, or even more.

  You should post the ITF file, as some variables are missing, so I can test it thoroughly.









  1 user thanked author for this post.

  ZeroCafeine



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17148

  Been thanked: 4037 times
  09/13/2022 at 7:25 PM #200736
  ZeroCafeine

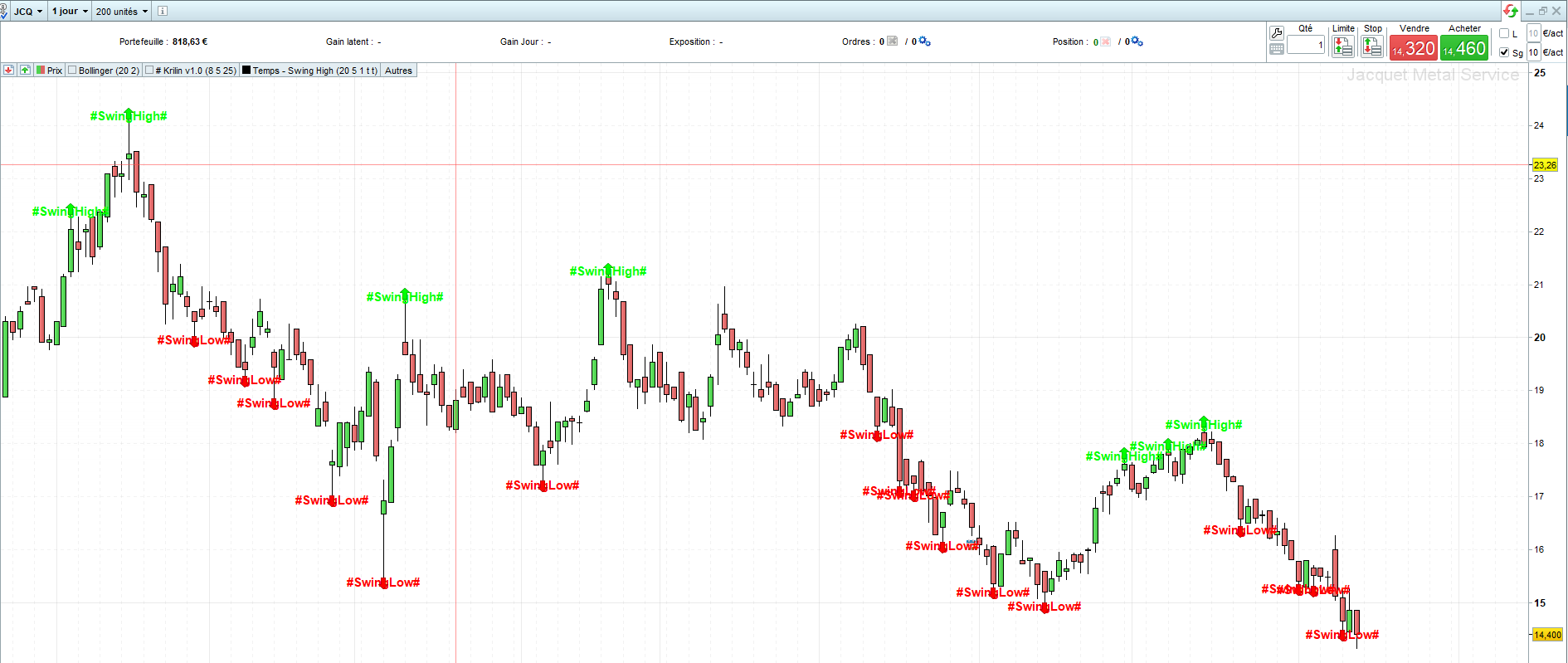

  so this the ITF file “Temps – Swing High”, it’s working correctly like on the Photo 01

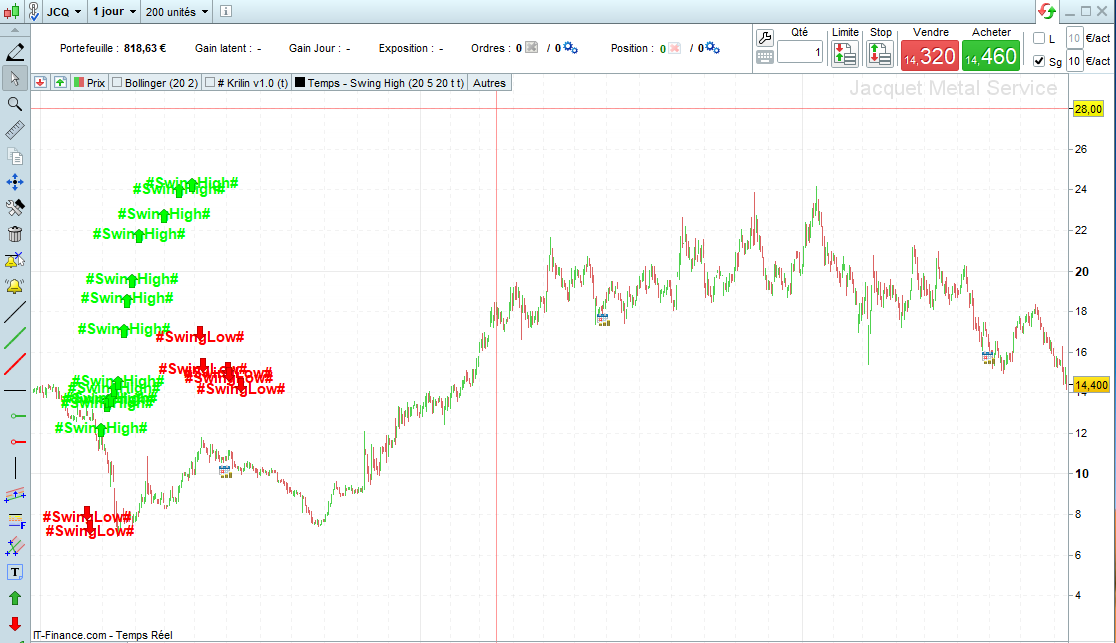

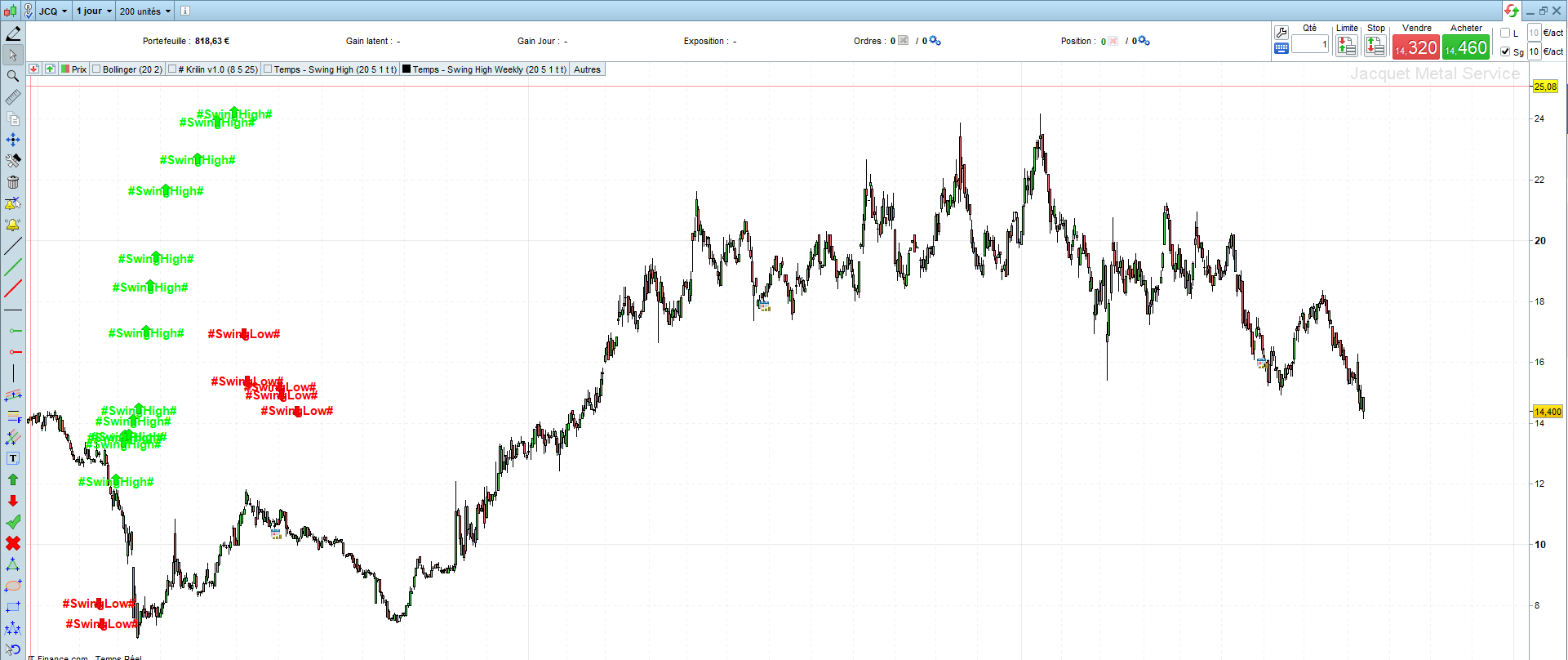

  but this ITF file “Temps – Swing High Weekly” with the instruction in line one with TimeFrame (Weekly) on the Daily chart I have the Photo 02 :

  TimeFrame (Weekly)

  1	TimeFrame (Weekly)

  the Idea it’s just to use the idea of SwingHigh and SwingLow on a daily chart with weekly value



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
