Trendlines with Breaks [LUX]

• 05/06/2022 at 3:05 AM #192796
  Kee

  This code is from trading view, please help me to convert. Thank you in advance.

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © LuxAlgo //@version=5 indicator("Trendlines With Breaks [LUX]",overlay=true) length = input.int(14) k = input.float(1.,'Slope',minval=0,step=.1) method = input.string('Atr','Slope Calculation Method', options=['Atr','Stdev','Linreg']) show = input(false,'Show Only Confirmed Breakouts') //---- upper = 0.,lower = 0. slope_ph = 0.,slope_pl = 0. src = close n = bar_index //---- ph = ta.pivothigh(length,length) pl = ta.pivotlow(length,length) slope = switch method 'Atr' => ta.atr(length)/length*k 'Stdev' => ta.stdev(src,length)/length*k 'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k slope_ph := ph ? slope : slope_ph[1] slope_pl := pl ? slope : slope_pl[1] upper := ph ? ph : upper[1] - slope_ph lower := pl ? pl : lower[1] + slope_pl //---- single_upper = 0 single_lower = 0 single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) lower_breakout = single_lower[1] and src[length] < lower and (show ? src < src[length] : 1) plotshape(upper_breakout ? low[length] : na,"Upper Break",shape.labelup,location.absolute,#26a69a,-length,text="B",textcolor=color.white,size=size.tiny) plotshape(lower_breakout ? high[length] : na,"Lower Break",shape.labeldown,location.absolute,#ef5350,-length,text="B",textcolor=color.white,size=size.tiny) //---- var line up_l = na var line dn_l = na var label recent_up_break = na var label recent_dn_break = na if ph[1] line.delete(up_l[1]) label.delete(recent_up_break[1]) up_l := line.new(n-length-1,ph[1],n-length,upper,color=#26a69a, extend=extend.right,style=line.style_dashed) if pl[1] line.delete(dn_l[1]) label.delete(recent_dn_break[1]) dn_l := line.new(n-length-1,pl[1],n-length,lower,color=#ef5350, extend=extend.right,style=line.style_dashed) if ta.crossover(src,upper-slope_ph*length) label.delete(recent_up_break[1]) recent_up_break := label.new(n,low,'B',color=#26a69a, textcolor=color.white,style=label.style_label_up,size=size.small) if ta.crossunder(src,lower+slope_pl*length) label.delete(recent_dn_break[1]) recent_dn_break := label.new(n,high,'B',color=#ef5350, textcolor=color.white,style=label.style_label_down,size=size.small) //---- plot(upper,'Upper',color = ph ? na : #26a69a,offset=-length) plot(lower,'Lower',color = pl ? na : #ef5350,offset=-length) alertcondition(ta.crossover(src,upper-slope_ph*length),'Upper Breakout','Price broke upper trendline') alertcondition(ta.crossunder(src,lower+slope_pl*length),'Lower Breakout','Price broke lower trendline')

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © LuxAlgo   //@version=5 indicator("Trendlines With Breaks [LUX]",overlay=true) length = input.int(14) k = input.float(1.,'Slope',minval=0,step=.1) method = input.string('Atr','Slope Calculation Method', options=['Atr','Stdev','Linreg']) show = input(false,'Show Only Confirmed Breakouts') //---- upper = 0.,lower = 0. slope_ph = 0.,slope_pl = 0. src = close n = bar_index //---- ph = ta.pivothigh(length,length) pl = ta.pivotlow(length,length) slope = switch method 'Atr' => ta.atr(length)/length*k 'Stdev' => ta.stdev(src,length)/length*k 'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k   slope_ph := ph ? slope : slope_ph[1] slope_pl := pl ? slope : slope_pl[1]   upper := ph ? ph : upper[1] - slope_ph lower := pl ? pl : lower[1] + slope_pl //---- single_upper = 0 single_lower = 0 single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) lower_breakout = single_lower[1] and src[length] < lower and (show ? src < src[length] : 1) plotshape(upper_breakout ? low[length] : na,"Upper Break",shape.labelup,location.absolute,#26a69a,-length,text="B",textcolor=color.white,size=size.tiny) plotshape(lower_breakout ? high[length] : na,"Lower Break",shape.labeldown,location.absolute,#ef5350,-length,text="B",textcolor=color.white,size=size.tiny) //---- var line up_l = na var line dn_l = na var label recent_up_break = na var label recent_dn_break = na   if ph[1] line.delete(up_l[1]) label.delete(recent_up_break[1])   up_l := line.new(n-length-1,ph[1],n-length,upper,color=#26a69a, extend=extend.right,style=line.style_dashed) if pl[1] line.delete(dn_l[1]) label.delete(recent_dn_break[1])   dn_l := line.new(n-length-1,pl[1],n-length,lower,color=#ef5350, extend=extend.right,style=line.style_dashed)   if ta.crossover(src,upper-slope_ph*length) label.delete(recent_up_break[1]) recent_up_break := label.new(n,low,'B',color=#26a69a, textcolor=color.white,style=label.style_label_up,size=size.small)   if ta.crossunder(src,lower+slope_pl*length) label.delete(recent_dn_break[1]) recent_dn_break := label.new(n,high,'B',color=#ef5350, textcolor=color.white,style=label.style_label_down,size=size.small)   //---- plot(upper,'Upper',color = ph ? na : #26a69a,offset=-length) plot(lower,'Lower',color = pl ? na : #ef5350,offset=-length)   alertcondition(ta.crossover(src,upper-slope_ph*length),'Upper Breakout','Price broke upper trendline') alertcondition(ta.crossunder(src,lower+slope_pl*length),'Lower Breakout','Price broke lower trendline')





  Kee

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
  05/06/2022 at 7:53 AM #192805
  Nicolas

  Hi, please next time add a description and a screenshot in order for us to understand what the code is about and how it could be translated into prorealtime code.

  I’ll have to make some simplification on that code in order to get it ready in a short time (no trendlines extension and no deletion of previous ones, will see how it goes..)



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  05/06/2022 at 8:39 AM #192807
  Nicolas

  Ok, here is a non finalized translation, in fact I spent 1 hour recoding it while I understood the indicator is repainting, it plots the breakouts signals in the past, and only the confirmed ones. So it is useless in real time trading.

  Anyway, for the record here is what I did so far.

  length = 14 k = 1.0 //('Slope',minval=0,step=.1) method = 0 //'Slope Calculation Method' 0='Atr' 1='Stdev' 2='Linreg' //show = input(false,'Show Only Confirmed Breakouts') //---- upper = 0 lower = 0 slopeph = 0 slopepl = 0 src = close n = max(1,barindex) //---- once cp = length /* = ta.pivothigh(length,length) pl = ta.pivotlow(length,length)*/ if high[cp] >= highest[2*cp+1](high) then LH = 1 else LH=0 endif if low[cp] <= lowest[2*cp+1](low) then LL= -1 else LL=0 endif if LH=1 then ph = high[cp] endif if LL = -1 then pl=low[cp] endif //slope if method = 0 then slope = AverageTrueRange[length](close)/length*k elsif method = 1 then slope = STD[length](close)/length*k else //'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k ivalue=n mperiod=length m=0 s=0 oldm=0 for k=0 to mperiod-1 do oldm = m m = m+(ivalue[k]-m)/(1.0+k) s = s+(ivalue[k]-m)*(ivalue[k]-oldm) next variance = (s/(mperiod-1)) slope = abs(average[length](src*barindex)-average[length](src)*average[length](barindex))/variance/2*k endif //slope_ph := ph ? slope : slope_ph[1] //upper := ph ? ph : upper[1] - slope_ph if ph<>ph[1]then slopeph=slope upper=ph else slopeph=slopeph[1] upper=upper[1] - slopeph endif //slope_pl := pl ? slope : slope_pl[1] //lower := pl ? pl : lower[1] + slope_pl if pl<>pl[1] then slopepl=slope lower=pl else slopepl=slopepl[1] lower=lower[1] + slopepl endif //---- singleupper = 0 singlelower = 0 //single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] if src[length]>upper then singleupper=0 else if ph<>ph[1] then singleupper=1 else singleupper=singleupper[1] endif endif //single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] if src[length]<lower then singlelower=0 else if pl<>pl[1] then singlelower=1 else singlelower=singlelower[1] endif endif //upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) upperbreakout = singleupper[1] and src[length] > upper and src > src[length] //lower_breakout = single_lower[1] and src[length] < lower and (show ? src < src[length] : 1) lowerbreakout = singlelower[1] and src[length] < lower and src < src[length] //plotshape(upper_breakout ? low[length] : na,"Upper Break",shape.labelup,location.absolute,#26a69a,-length,text="B",textcolor=color.white,size=size.tiny) if upperbreakout then drawtext("B",barindex[length],low[length]) coloured("green") endif //plotshape(lower_breakout ? high[length] : na,"Lower Break",shape.labeldown,location.absolute,#ef5350,-length,text="B",textcolor=color.white,size=size.tiny) if lowerbreakout then drawtext("B",barindex[length],high[length]) coloured("red") endif if ph[1]<>ph[2] then //line.delete(up_l[1]) //label.delete(recent_up_break[1]) //up_l := line.new(n-length-1,ph[1],n-length,upper,color=#26a69a, //extend=extend.right,style=line.style_dashed) drawray(n-length-1,ph[1],n-length,upper) coloured(38,166,154) endif if pl[1]<>pl[2] then /*line.delete(dn_l[1]) label.delete(recent_dn_break[1]) dn_l := line.new(n-length-1,pl[1],n-length,lower,color=#ef5350, extend=extend.right,style=line.style_dashed)*/ drawray(n-length-1,pl[1],n-length,lower) coloured(239,83,80) endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

  length = 14 k = 1.0 //('Slope',minval=0,step=.1) method = 0 //'Slope Calculation Method' 0='Atr' 1='Stdev' 2='Linreg' //show = input(false,'Show Only Confirmed Breakouts')   //---- upper = 0 lower = 0 slopeph = 0 slopepl = 0 src = close n = max(1,barindex) //---- once cp = length /* = ta.pivothigh(length,length) pl = ta.pivotlow(length,length)*/ if high[cp] >= highest[2*cp+1](high) then LH = 1 else LH=0 endif if low[cp] <= lowest[2*cp+1](low)  then LL= -1 else LL=0 endif if LH=1 then ph = high[cp] endif if LL  = -1 then pl=low[cp] endif //slope if method = 0 then slope = AverageTrueRange[length](close)/length*k elsif method = 1 then slope = STD[length](close)/length*k else //'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k ivalue=n mperiod=length m=0 s=0 oldm=0 for k=0 to mperiod-1 do oldm = m m    = m+(ivalue[k]-m)/(1.0+k) s    = s+(ivalue[k]-m)*(ivalue[k]-oldm) next variance = (s/(mperiod-1)) slope = abs(average[length](src*barindex)-average[length](src)*average[length](barindex))/variance/2*k endif   //slope_ph := ph ? slope : slope_ph[1] //upper := ph ? ph : upper[1] - slope_ph if ph<>ph[1]then slopeph=slope upper=ph else slopeph=slopeph[1] upper=upper[1] - slopeph endif   //slope_pl := pl ? slope : slope_pl[1] //lower := pl ? pl : lower[1] + slope_pl if pl<>pl[1] then slopepl=slope lower=pl else slopepl=slopepl[1] lower=lower[1] + slopepl endif //---- singleupper = 0 singlelower = 0 //single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] if src[length]>upper then singleupper=0 else if ph<>ph[1] then singleupper=1 else singleupper=singleupper[1] endif endif //single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] if src[length]<lower then singlelower=0 else if pl<>pl[1] then singlelower=1 else singlelower=singlelower[1] endif endif   //upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) upperbreakout = singleupper[1] and src[length] > upper and src > src[length] //lower_breakout = single_lower[1] and src[length] < lower and (show ? src < src[length] : 1) lowerbreakout = singlelower[1] and src[length] < lower and src < src[length] //plotshape(upper_breakout ? low[length] : na,"Upper Break",shape.labelup,location.absolute,#26a69a,-length,text="B",textcolor=color.white,size=size.tiny) if upperbreakout then drawtext("B",barindex[length],low[length]) coloured("green") endif //plotshape(lower_breakout ? high[length] : na,"Lower Break",shape.labeldown,location.absolute,#ef5350,-length,text="B",textcolor=color.white,size=size.tiny) if lowerbreakout then drawtext("B",barindex[length],high[length]) coloured("red") endif   if ph[1]<>ph[2] then //line.delete(up_l[1]) //label.delete(recent_up_break[1])      //up_l := line.new(n-length-1,ph[1],n-length,upper,color=#26a69a, //extend=extend.right,style=line.style_dashed) drawray(n-length-1,ph[1],n-length,upper) coloured(38,166,154) endif if pl[1]<>pl[2] then /*line.delete(dn_l[1]) label.delete(recent_dn_break[1])      dn_l := line.new(n-length-1,pl[1],n-length,lower,color=#ef5350, extend=extend.right,style=line.style_dashed)*/ drawray(n-length-1,pl[1],n-length,lower) coloured(239,83,80) endif   return



  1 user thanked author for this post.

  GraHal



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  05/06/2022 at 12:57 PM #192816
  Kee

  Noted. I will do that next time. I am sorry. New user here.



  Kee

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
  05/06/2022 at 1:00 PM #192817
  Kee

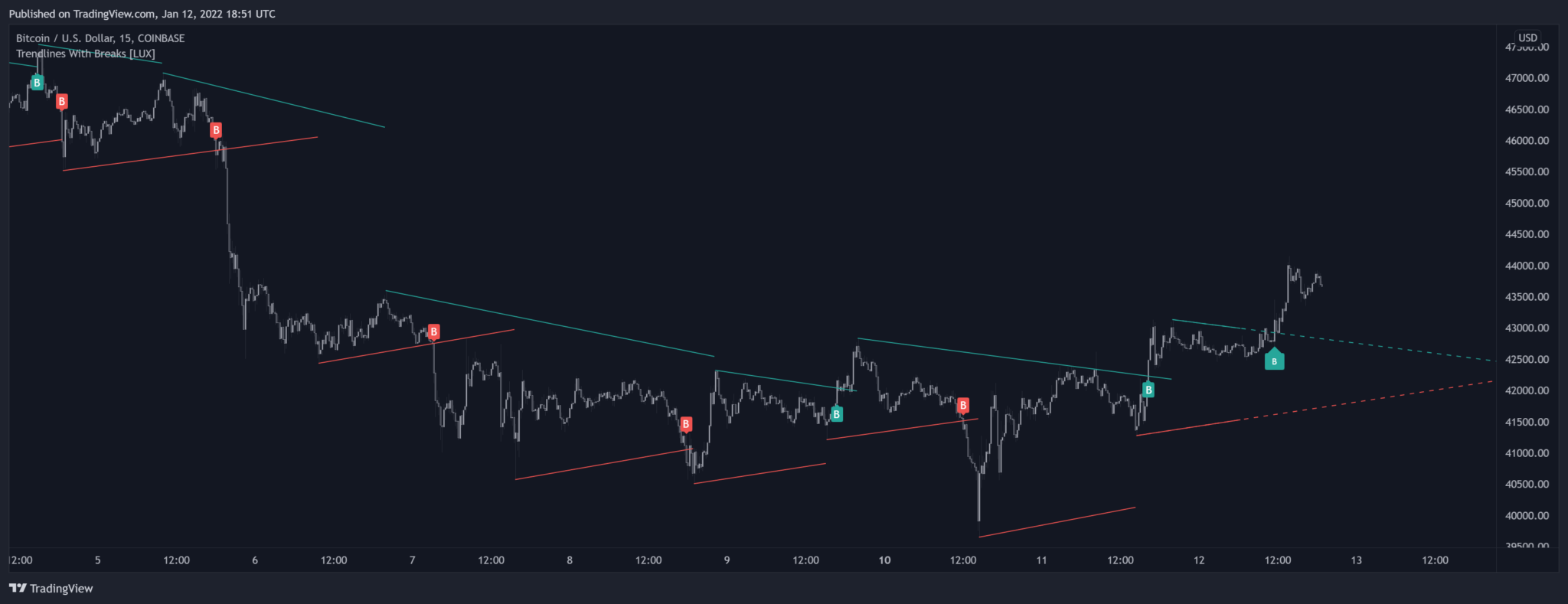

  https://www.tradingview.com/script/IYL88A1N-Trendlines-with-Breaks-LUX/



  I don’t know how to add picture. But here is the link to how it should looks like.



  Kee

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
  05/09/2022 at 8:59 AM #192922
  Nicolas

  Yes i know how it should look like, but I think you did not understand what I explained 🙂

  That indicators plots the trendlines and signals in the past, which is useless if you agree, that’s why I stopped spending time on a 1:1 conversion and post the code in its current state.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  03/19/2023 at 11:13 AM #211728
  kumar_AK

  hi Nicolas,

  i recently started using the luxalgo indicator on trading view.

  i wanted to use this logic for pre-real code screener for identifying break outs.

  screener code for breakout candles

  // inpout values length = 14 k = 1.0 method = 0 //'Slope Calculation Method' 0='Atr' 1='Stdev' 2='Linreg' //show = input(false,'Show Only Confirmed Breakouts') //--initialise variables upper = 0 lower = 0 slopeph = 0 src = close n = max(1,barindex) //---- once cp = length if high[cp] >= highest[2*cp+1](high) then LH = 1 else LH=0 endif if low[cp] <= lowest[2*cp+1](low) then LL= -1 else LL=0 endif if LH=1 then ph = high[cp] endif if LL = -1 then pl=low[cp] endif //slope if method = 0 then slope = AverageTrueRange[length](close)/length*k elsif method = 1 then slope = STD[length](close)/length*k else //'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k ivalue=n mperiod=length m=0 s=0 oldm=0 for k=0 to mperiod-1 do oldm = m m = m+(ivalue[k]-m)/(1.0+k) s = s+(ivalue[k]-m)*(ivalue[k]-oldm) next variance = (s/(mperiod-1)) slope = abs(average[length](src*barindex)-average[length](src)*average[length](barindex))/variance/2*k endif //slope_ph := ph ? slope : slope_ph[1] //upper := ph ? ph : upper[1] - slope_ph if ph<>ph[1]then slopeph=slope upper=ph else slopeph=slopeph[1] upper=upper[1] - slopeph endif singleupper = 0 singlelower = 0 //single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] if src[length]>upper then singleupper=0 else if ph<>ph[1] then singleupper=1 else singleupper=singleupper[1] endif endif //single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] if src[length]<lower then singlelower=0 else if pl<>pl[1] then singlelower=1 else singlelower=singlelower[1] endif endif //upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) upperbreakout = singleupper[1] and src[length] > upper and src > src[length] SCREENER(upperbreakout as "close")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91

  // inpout values length = 14 k = 1.0 method = 0 //'Slope Calculation Method' 0='Atr' 1='Stdev' 2='Linreg' //show = input(false,'Show Only Confirmed Breakouts')   //--initialise variables upper = 0 lower = 0 slopeph = 0   src = close n = max(1,barindex) //---- once cp = length   if high[cp] >= highest[2*cp+1](high) then LH = 1 else LH=0 endif if low[cp] <= lowest[2*cp+1](low)  then LL= -1 else LL=0 endif if LH=1 then ph = high[cp] endif if LL  = -1 then pl=low[cp] endif //slope if method = 0 then slope = AverageTrueRange[length](close)/length*k elsif method = 1 then slope = STD[length](close)/length*k else //'Linreg' => math.abs(ta.sma(src*bar_index,length)-ta.sma(src,length)*ta.sma(bar_index,length))/ta.variance(n,length)/2*k ivalue=n mperiod=length m=0 s=0 oldm=0 for k=0 to mperiod-1 do oldm = m m    = m+(ivalue[k]-m)/(1.0+k) s    = s+(ivalue[k]-m)*(ivalue[k]-oldm) next variance = (s/(mperiod-1)) slope = abs(average[length](src*barindex)-average[length](src)*average[length](barindex))/variance/2*k endif   //slope_ph := ph ? slope : slope_ph[1] //upper := ph ? ph : upper[1] - slope_ph if ph<>ph[1]then slopeph=slope upper=ph else slopeph=slopeph[1] upper=upper[1] - slopeph endif   singleupper = 0 singlelower = 0 //single_upper := src[length] > upper ? 0 : ph ? 1 : single_upper[1] if src[length]>upper then singleupper=0 else if ph<>ph[1] then singleupper=1 else singleupper=singleupper[1] endif endif //single_lower := src[length] < lower ? 0 : pl ? 1 : single_lower[1] if src[length]<lower then singlelower=0 else if pl<>pl[1] then singlelower=1 else singlelower=singlelower[1] endif endif   //upper_breakout = single_upper[1] and src[length] > upper and (show ? src > src[length] : 1) upperbreakout = singleupper[1] and src[length] > upper and src > src[length]     SCREENER(upperbreakout as "close")





  kumar_AK

  Participant

  Topics: 5

  Replies: 10

  Been thanked: 0 times
  03/20/2023 at 10:31 AM #211777
  Nicolas

  Change the last line with:

  SCREENER[upperbreakout]

  1	SCREENER[upperbreakout]

  conditions to test must be under brackets, parenthesis are used for sorting criteria.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
