Use previous day’s high/low

• 07/25/2022 at 10:41 AM #197894
  Razz

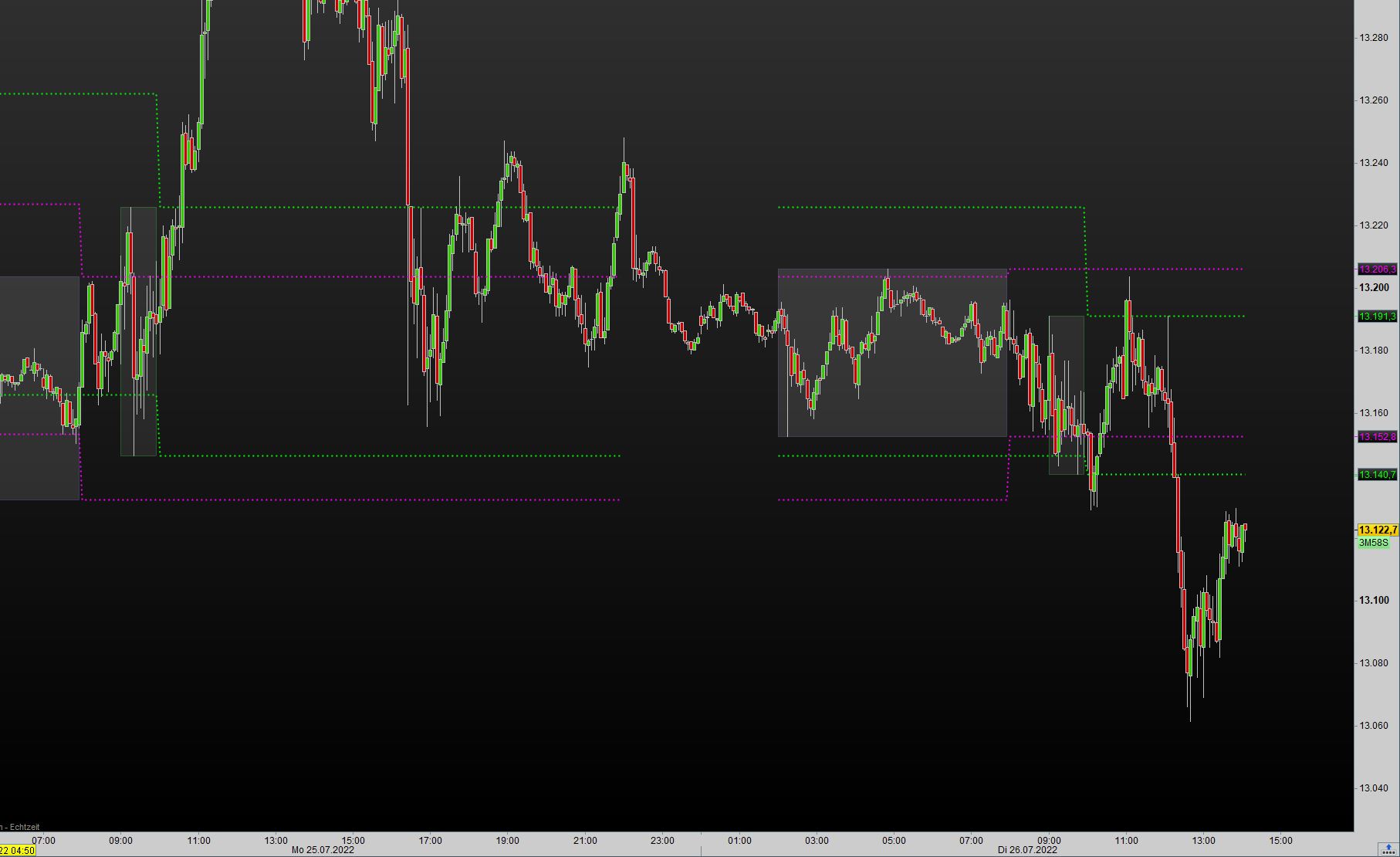

  I often use boxing, but I don’t know how to reach how I can if the course eg. above the previous day’s low of the box can color the chart background. In advance thanks for your help

  //____________________________________ Starttime1 = 090000 if time = starttime1 then startbar1 = barindex endif //____________________________________ // --- init alpha = max(alpha,0) alpha = min(alpha,255) // --- end starttime = 090500 endtime = 093000 if time = starttime then startbar = barindex endif If Time = 090500 then Ops=open endif if time = endtime then endbar = barindex endif if time >= starttime and time <= endtime then if high > hh then hh = high endif if low < ll or ll = 0 then ll = low endif endif if intradaybarindex = 0 then hh = 0 ll = 0 endif if date = today and time = endtime then upper = highest[6](high) // Frame 12 = 5 min Chart lower = lowest[6](low) op = close dif = round(abs(upper-lower)) OMitte = upper-(dif/4) Mitte = upper-(dif/2) UMitte = lower+(dif/4) elsif info = 1 and Time > endtime then DrawText("#dif#Punkte",startbar+HL,upper+(delta+HLH+8),SansSerif,Standard,14) coloured(255,255,255) DrawText("#hh#",startbar+HL,upper+(delta+HLH),SansSerif,Standard,14) coloured(0,255,255) DrawText("#ll#",startbar+HL,lower-(delta+HLH),SansSerif,Standard,14) coloured(0,255,255) DrawRectangle(startbar,hh,endbar,ll) coloured(255,255,255,50)bordercolor(0,0,0,0) endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

  //____________________________________   Starttime1 = 090000 if time = starttime1 then startbar1 = barindex endif   //____________________________________   // --- init alpha = max(alpha,0) alpha = min(alpha,255) // --- end   starttime = 090500 endtime = 093000   if time = starttime then startbar = barindex endif If Time = 090500 then Ops=open endif if time = endtime then endbar = barindex endif   if time >= starttime and time <= endtime then if high > hh then hh = high endif if low < ll or ll = 0 then ll = low endif endif   if intradaybarindex = 0 then hh = 0 ll = 0 endif   if date = today and time = endtime then upper = highest[6](high) // Frame 12 = 5 min Chart lower = lowest[6](low) op = close dif = round(abs(upper-lower)) OMitte    = upper-(dif/4) Mitte     = upper-(dif/2) UMitte    = lower+(dif/4)   elsif info = 1 and Time > endtime then DrawText("#dif#Punkte",startbar+HL,upper+(delta+HLH+8),SansSerif,Standard,14) coloured(255,255,255) DrawText("#hh#",startbar+HL,upper+(delta+HLH),SansSerif,Standard,14) coloured(0,255,255) DrawText("#ll#",startbar+HL,lower-(delta+HLH),SansSerif,Standard,14) coloured(0,255,255) DrawRectangle(startbar,hh,endbar,ll) coloured(255,255,255,50)bordercolor(0,0,0,0)   endif     return





  Razz

  Participant

  Topics: 30

  Replies: 154

  Been thanked: 23 times
  07/25/2022 at 1:11 PM #197907
  Razz

  Maybe I didn’t make myself clear, I want to use the low and high of the previous day’s box (upper/lower) is that possible?



  Razz

  Participant

  Topics: 30

  Replies: 154

  Been thanked: 23 times
  07/26/2022 at 10:14 AM #197949
  robertogozzi

  The previous day range can be defined this way:

  Timeframe(Daily,UpdateOnClose) HH = high LL = low

  1 2 3

  Timeframe(Daily,UpdateOnClose) HH = high LL = low

  or this way:

  HH = Dhigh(1) LL = Dlow(1)

  1 2	HH = Dhigh(1) LL = Dlow(1)

  hen you can use HH as the upper limit and LL as the lower limit.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4038 times
  07/26/2022 at 1:04 PM #197952
  Razz

  Hello Robertogozzi Unfortunately that is not the solution. I would like to see the high and low of the 09:00-10:00 candle from the previous day, for example. I can achieve this with upper[1] and lower[1] in the above code, but as soon as the box is drawn on today, the display snaps to today’s new value.



  Razz

  Participant

  Topics: 30

  Replies: 154

  Been thanked: 23 times
  07/26/2022 at 3:52 PM #197961
  robertogozzi

  Then you have to use this code:

  IF Time = 090000 THEN PrevHH = HH PrevLL = LL HH = high LL = low ENDIF IF Time > 090000 AND Time <=100000 THEN HH = max(HH,high) LL = min(LL,low) ENDIF

  1 2 3 4 5 6 7 8 9 10

  IF Time = 090000 THEN    PrevHH = HH    PrevLL = LL    HH     = high    LL     = low ENDIF IF Time > 090000 AND Time <=100000 THEN    HH = max(HH,high)    LL = min(LL,low) ENDIF

  use PrevHH and PrevLL as the Upper and Lower values of the previous day.

  1 user thanked author for this post.

  Razz



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4038 times
  07/27/2022 at 6:16 PM #197999
  Razz

  Hello Robertogozzi You have been a great help once again Thank you! What would I do without you 😉
