User defined trendline points

• 09/11/2022 at 12:53 AM #200519
  tabarrington

  Hello All,

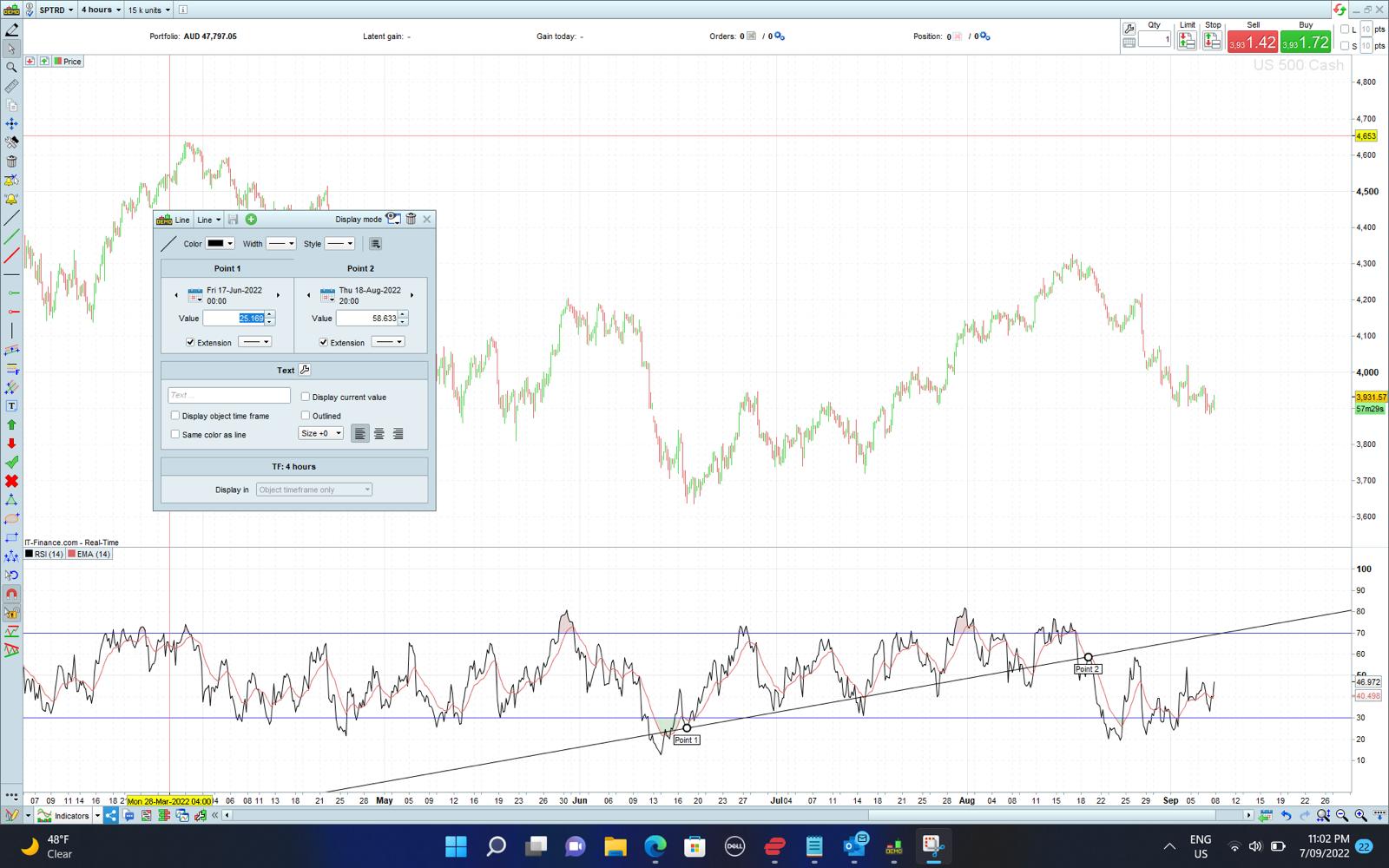

  I am trying to code an indicator that will draw a line between two points on RSI like I have attached in the screen shot.

  I am wondering what is the best way to tell ProBuilder the coordinates if my line?

  Once I have these I thought I might be able to duplicate this line by calculating the slope with rise/run so I can have duplicates of the line on the indicator.

  I hope this will also allow me to get the value of the line at any given point in time.

  Any advice would be greatly appreciated,

  Many thanks,

  Tim.



  tabarrington

  Participant

  Topics: 3

  Replies: 5

  Been thanked: 2 times
  09/11/2022 at 1:12 AM #200525
  tabarrington

  Sorry about all the screenshot duplicates!



  tabarrington

  Participant

  Topics: 3

  Replies: 5

  Been thanked: 2 times
  09/11/2022 at 7:57 AM #200528
  JS

  Hi @tabarrington

  What are the conditions for these two points?

  Does the RSI have to be at a certain value or are only the dates of these points decisive?



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 782 times
  09/11/2022 at 9:49 AM #200531
  tabarrington

  Hi JS,

  Thankyou very much for the reply!

  RSI and date have to be at a certain value…

  Ive played around with a few things like DATETOBARINDEX(2022022117) to stop the X coordinates moving when a new bar is loaded which does work but Ive been unable to define a variable using that…

  Is there a way that you know of for saving a set point in time, such as DATETOBARINDEX(2022022117), to a variable?

  Many Thanks!!



  tabarrington

  Participant

  Topics: 3

  Replies: 5

  Been thanked: 2 times
  09/11/2022 at 1:09 PM #200540
  robertogozzi

  tabarrington wrote:

  Sorry about all the screenshot duplicates!

  I deleted all duplicates.

  Please, do not embed documents of any type in your posts, as they slow down the loading of pages. Use the Select File button, instead, to attach them.

  Thank you 🙂



  1 user thanked author for this post.

  tabarrington



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17148

  Been thanked: 4037 times

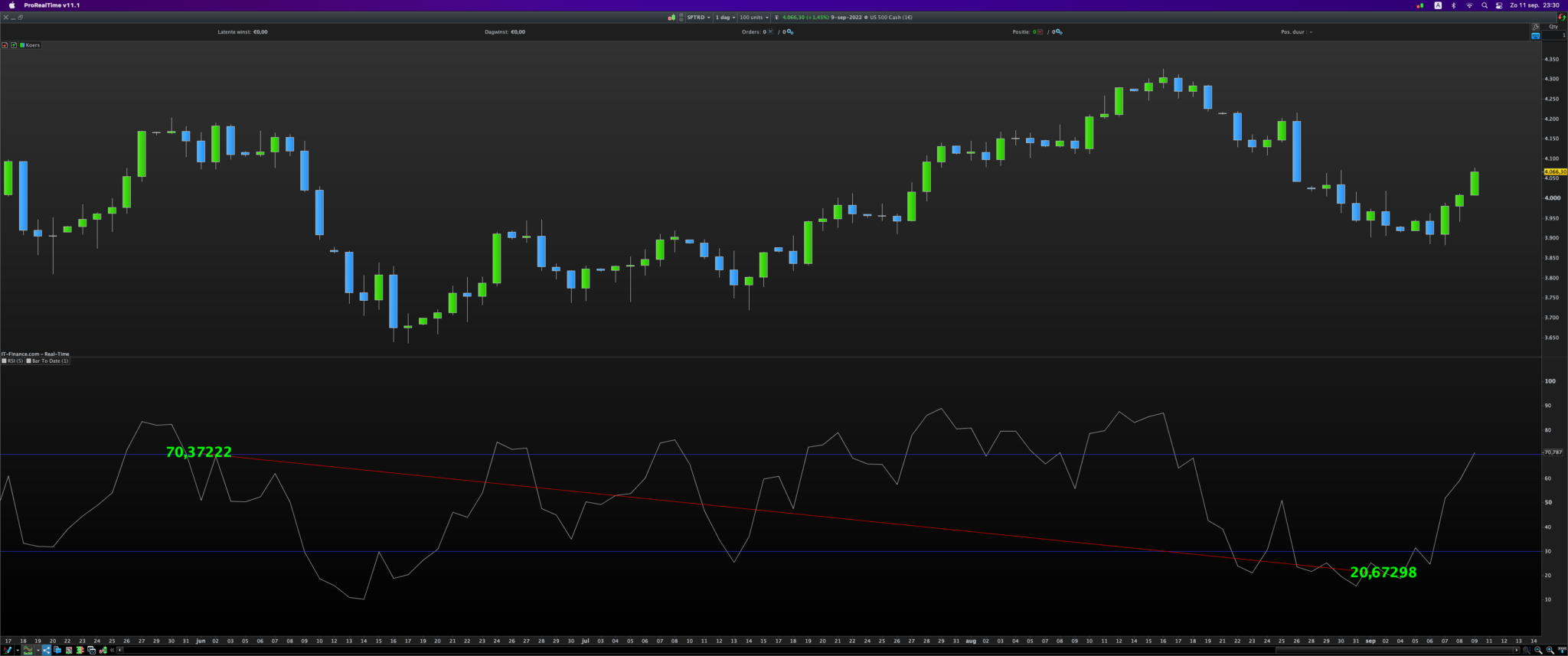

  09/11/2022 at 10:30 PM #200580
  JS

  Trendline Points

  defparam drawonlastbaronly=true MyFirstDate = 20220601 MySecondDate = 20220902 If Date = MyFirstDate then xFirstRSI = RSI[5](Close) EndIf If Date = MySecondDate then xSecondRSI = RSI[5](Close) EndIf drawsegment(datetobarindex(MyFirstDate),xFirstRSI,datetobarindex(MySecondDate),xSecondRSI) Coloured(255,0,0) drawtext("#xFirstRSI#",datetobarindex(MyFirstDate),xFirstRSI,dialog,bold,30) coloured(0,255,0) drawtext("#xSecondRSI#",datetobarindex(MySecondDate),xSecondRSI,dialog,bold,30) coloured(0,255,0) return //xFirstRSI as "First", xSecondRSI as "Second"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  defparam drawonlastbaronly=true   MyFirstDate = 20220601 MySecondDate = 20220902   If Date = MyFirstDate then xFirstRSI = RSI[5](Close) EndIf If Date = MySecondDate then xSecondRSI = RSI[5](Close) EndIf   drawsegment(datetobarindex(MyFirstDate),xFirstRSI,datetobarindex(MySecondDate),xSecondRSI) Coloured(255,0,0) drawtext("#xFirstRSI#",datetobarindex(MyFirstDate),xFirstRSI,dialog,bold,30) coloured(0,255,0) drawtext("#xSecondRSI#",datetobarindex(MySecondDate),xSecondRSI,dialog,bold,30) coloured(0,255,0)   return //xFirstRSI as "First", xSecondRSI as "Second"

  Hi @tabarrington

  That’s right, you could use DateToBarIndex to draw your line between two dates and at certain levels.

  You then have to enter two dates, a start date and an end date.

  The indicator then draws the line between these two data and plots the values of the corresponding RSI.



  1 user thanked author for this post.

  tabarrington



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 782 times
  09/11/2022 at 11:01 PM #200582
  tabarrington

  You’re an absolute legend!!! Thank you so much for your help, I really appreciate it.

  Such a great community here, I wish I had found it years ago.

  Many thanks and have a great day.

  Tim

  1 user thanked author for this post.

  JS



  tabarrington

  Participant

  Topics: 3

  Replies: 5

  Been thanked: 2 times
  09/11/2022 at 11:05 PM #200583
  tabarrington

  No worries @robertogozzi, thanks for getting rid of those for me!

  T



  tabarrington

  Participant

  Topics: 3

  Replies: 5

  Been thanked: 2 times
