Valor de indicadores en ventana de grafico de precio

This topic has 5 replies, 3 voices, and was last updated 2 months ago by Alfre.

Tagged: anchor, bottomleft, BottomRight, drawrectangle, drawtext, topleft, TopRight

Viewing 6 posts - 1 through 6 (of 6 total)

04/28/2023 at 7:59 AM #213818

nautilus23

Buenos días.

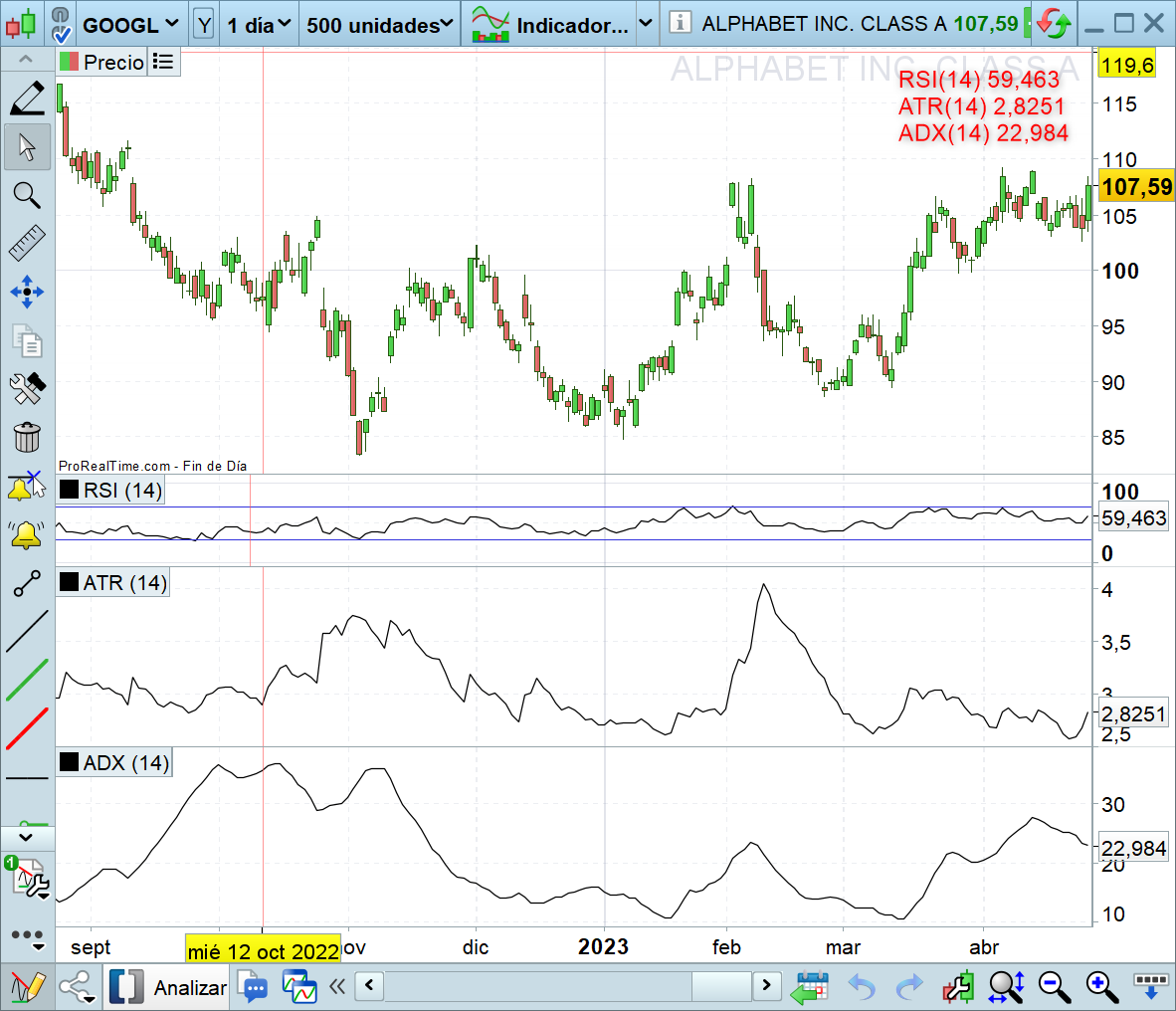

Mi pregunta es si se puede indicar en la ventana superior que representa el gráfico de precios el valor de los indicadores de manera similar al gráfico adjunto (En este caso la parte superior derecha, también sirve cualquier otro lugar de la ventana que representa el gráfico de precios).

Muchas gracias por adelantado.

nautilus23

Participant

Topics: 19

Replies: 46

Been thanked: 3 times

04/30/2023 at 4:59 PM #213903

robertogozzi

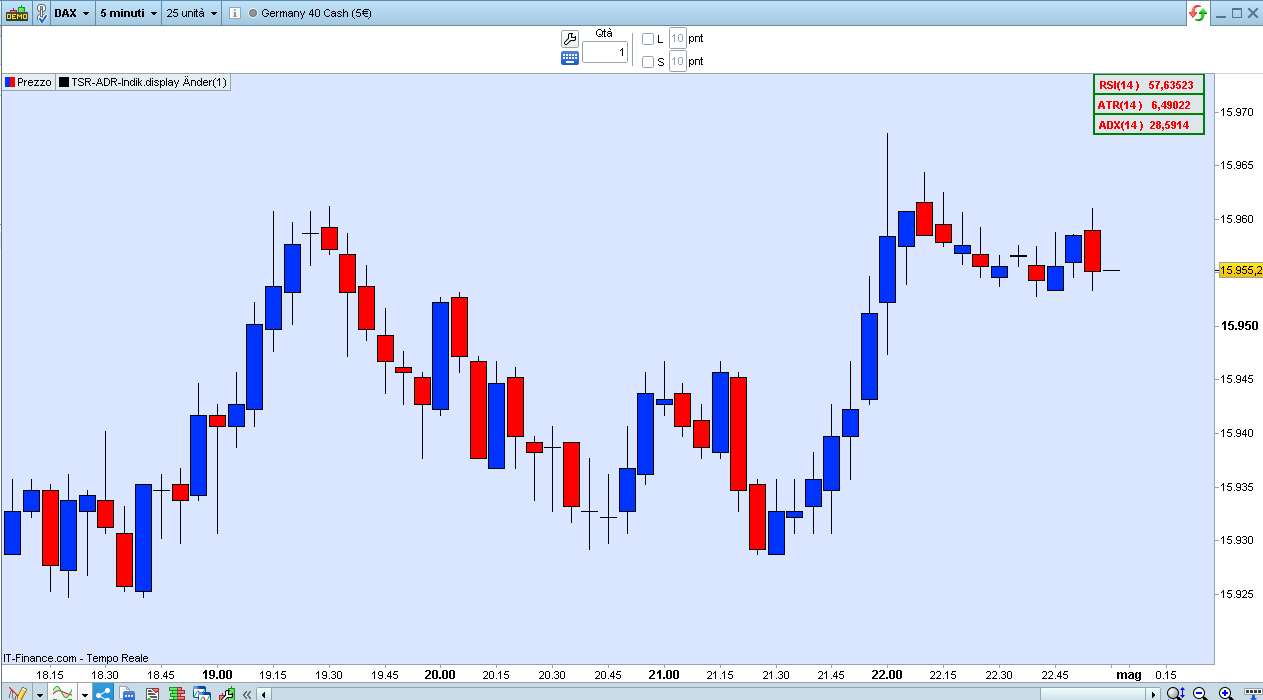

Ahí tienes:

DEFPARAM DrawOnLastBarOnly = True
adxP  = 14
rsiP  = 14
atrP  = 14
myADX = ADX[adxP]
myATR = AverageTrueRange[atrP](close)
myRSI = Rsi[rsiP](close)
//--------------------------------------------------------------------------------------------------------------------
drawrectangle(-120,0,-10,-20)                                  anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
drawtext ("RSI(#rsiP#)   #myRSI#", -66 ,-10, Dialog, Bold, 11) anchor(TopRight) coloured("Red")
//
drawrectangle(-120,-20,-10,-40)                                anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
drawtext ("ATR(#atrP#)   #myATR#", -68 ,-30, Dialog, Bold, 11) anchor(TopRight) coloured("Red")
//
drawrectangle(-120,-40,-10,-60)                                anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
drawtext ("ADX(#adxP#)  #myADX#", -69 ,-50, Dialog, Bold, 11)  anchor(TopRight) coloured("Red")
return

DEFPARAM DrawOnLastBarOnly = True

adxP = 14

rsiP = 14

atrP = 14

myADX = ADX[adxP]

myATR = AverageTrueRange[atrP](close)

myRSI = Rsi[rsiP](close)

//--------------------------------------------------------------------------------------------------------------------

drawrectangle(-120,0,-10,-20) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

drawtext ("RSI(#rsiP#) #myRSI#", -66 ,-10, Dialog, Bold, 11) anchor(TopRight) coloured("Red")

drawrectangle(-120,-20,-10,-40) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

drawtext ("ATR(#atrP#) #myATR#", -68 ,-30, Dialog, Bold, 11) anchor(TopRight) coloured("Red")

drawrectangle(-120,-40,-10,-60) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

drawtext ("ADX(#adxP#) #myADX#", -69 ,-50, Dialog, Bold, 11) anchor(TopRight) coloured("Red")

return

1 user thanked author for this post.

nautilus23

robertogozzi

Moderator

Topics: 69

Replies: 17479

Been thanked: 4247 times

05/01/2023 at 10:34 PM #213949

nautilus23

Perfecto.

Muchas gracias Roberto.

Un saludo.

nautilus23

Participant

Topics: 19

Replies: 46

Been thanked: 3 times

01/29/2025 at 1:58 PM #243178

Alfre

Hola,

sería posible representar esos datos ordenados por valor, por ejemplo descendente?

Alfre

Participant

Topics: 0

Replies: 2

Been thanked: 1 time

01/29/2025 at 7:24 PM #243202

robertogozzi

Aquí está, es un poco complicado:

DEFPARAM DrawOnLastBarOnly = True
SortOrder   = 0    //1=Ascending order,   Any other Value=Descending order
MaxElements = 3
adxP        = 14
rsiP        = 14
atrP        = 14
myADX       = ADX[adxP]
myATR       = AverageTrueRange[atrP](close)
myRSI       = Rsi[rsiP](close)
$myVAL[1]   = myADX
$myIND[1]   = 1    //1=ADX
$myVAL[2]   = myATR
$myIND[2]   = 2    //2=ATR
$myVAL[3]   = myRSI
$myIND[3]   = 3    //3=RSI
IF SortOrder = 1 THEN
//////////////////////////////////////////////////////////////////
// (Bubble Sort) - ASCENDING order
FOR i = 1 TO MaxElements - 1
FOR j = 1 TO MaxElements - i
IF $myVAL[j] >= $myVAL[j + 1] THEN
// swap data
temp          = $myVAL[j]
$myVAL[j]     = $myVAL[j + 1]
$myVAL[j + 1] = temp
// swap labels
temp          = $myIND[j]
$myIND[j]     = $myIND[j + 1]
$myIND[j + 1] = temp
ENDIF
NEXT
NEXT
ELSE
//////////////////////////////////////////////////////////////////
// (Bubble Sort) - DESCENDING order
FOR i = 1 TO MaxElements - 1
FOR j = 1 TO MaxElements - i
IF $myVAL[j] < $myVAL[j + 1] THEN
// swap data
temp          = $myVAL[j]
$myVAL[j]     = $myVAL[j + 1]
$myVAL[j + 1] = temp
// swap labels
temp          = $myIND[j]
$myIND[j]     = $myIND[j + 1]
$myIND[j + 1] = temp
ENDIF
NEXT
NEXT
ENDIF
//////////////////////////////////////////////////////////////////
//--------------------------------------------------------------------------------------------------------------------
drawrectangle(-120,0,-10,-20)                                      anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
FOR i = 1 TO 3
//myValue = $myVAL[i]
IF i = 1 THEN
x = -66
y = -10
ELSIF i = 2 THEN
x = -68
y = -30
ELSIF i = 3 THEN
x = -69
y = -50
ENDIF
IF $myIND[i] = 3 THEN
drawtext ("RSI(#rsiP#) #myRSI#",x,y,Dialog,Bold, 11) anchor(TopRight) coloured("Red")
ELSIF $myIND[i] = 2 THEN
drawrectangle(-120,-20,-10,-40)                              anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
drawtext ("ATR(#atrP#) #myATR#",x,y,Dialog,Bold, 11) anchor(TopRight) coloured("Red")
ELSIF $myIND[i] = 1 THEN
drawrectangle(-120,-40,-10,-60)                              anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)
drawtext ("ADX(#adxP#) #myADX#",x,y,Dialog,Bold, 11)  anchor(TopRight) coloured("Red")
ENDIF
NEXT
return

DEFPARAM DrawOnLastBarOnly = True

SortOrder = 0 //1=Ascending order, Any other Value=Descending order

MaxElements = 3

adxP = 14

rsiP = 14

atrP = 14

myADX = ADX[adxP]

myATR = AverageTrueRange[atrP](close)

myRSI = Rsi[rsiP](close)

$myVAL[1] = myADX

$myIND[1] = 1 //1=ADX

$myVAL[2] = myATR

$myIND[2] = 2 //2=ATR

$myVAL[3] = myRSI

$myIND[3] = 3 //3=RSI

IF SortOrder = 1 THEN

//////////////////////////////////////////////////////////////////

// (Bubble Sort) - ASCENDING order

FOR i = 1 TO MaxElements - 1

FOR j = 1 TO MaxElements - i

IF $myVAL[j] >= $myVAL[j + 1] THEN

// swap data

temp = $myVAL[j]

$myVAL[j] = $myVAL[j + 1]

$myVAL[j + 1] = temp

// swap labels

temp = $myIND[j]

$myIND[j] = $myIND[j + 1]

$myIND[j + 1] = temp

ENDIF

ELSE

//////////////////////////////////////////////////////////////////

// (Bubble Sort) - DESCENDING order

FOR i = 1 TO MaxElements - 1

FOR j = 1 TO MaxElements - i

IF $myVAL[j] < $myVAL[j + 1] THEN

// swap data

temp = $myVAL[j]

$myVAL[j] = $myVAL[j + 1]

$myVAL[j + 1] = temp

// swap labels

temp = $myIND[j]

$myIND[j] = $myIND[j + 1]

$myIND[j + 1] = temp

ENDIF

//////////////////////////////////////////////////////////////////

//--------------------------------------------------------------------------------------------------------------------

drawrectangle(-120,0,-10,-20) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

FOR i = 1 TO 3

//myValue = $myVAL[i]

IF i = 1 THEN

x = -66

y = -10

ELSIF i = 2 THEN

x = -68

y = -30

ELSIF i = 3 THEN

x = -69

y = -50

ENDIF

IF $myIND[i] = 3 THEN

drawtext ("RSI(#rsiP#) #myRSI#",x,y,Dialog,Bold, 11) anchor(TopRight) coloured("Red")

ELSIF $myIND[i] = 2 THEN

drawrectangle(-120,-20,-10,-40) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

drawtext ("ATR(#atrP#) #myATR#",x,y,Dialog,Bold, 11) anchor(TopRight) coloured("Red")

ELSIF $myIND[i] = 1 THEN

drawrectangle(-120,-40,-10,-60) anchor(TopRight) coloured("Yellow",20) bordercolor("Green") style(line,2)

drawtext ("ADX(#adxP#) #myADX#",x,y,Dialog,Bold, 11) anchor(TopRight) coloured("Red")

ENDIF

return

robertogozzi

Moderator

Topics: 69

Replies: 17479

Been thanked: 4247 times

01/29/2025 at 8:57 PM #243209

Alfre

Muchísimas gracias, gran trabajo

1 user thanked author for this post.

robertogozzi

Alfre

Participant

Topics: 0

Replies: 2

Been thanked: 1 time

Author
