Why is this Indicator Double Plotting ATR Lines ?

• 07/15/2018 at 6:50 PM #76052
  Bard

  I was trying to label the orange and blue indicator lines “Short Dev Stop” and “Long Dev Stop” so I could create a strategy with how the price interacts with either crossing a long (blue) or short (orange) SAR pattern. I have done all manner of relabelling but cannot get it to simply display orange Dev Stops labelled as Short Dev Stops and the blue Dev Stops as Long Dev Stops?

  Why is this indicator double plotting?

  The Original Code (which works but has no long / short labelling protocol (only Dev Stop 1.0, Dev Stop 2.2 etc) when using assisted creation)

  Original Code

  //Settings n=30 p1=1.0 p2=2.2 p3=3.6 p4=4.5 p5=6.0 difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference) dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif if close>dev11[1] then flag=-1 else if close<dev5[1] then flag=1 endif endif if flag=-1 then ind0=dev0 ind1=dev1 ind2=dev2 ind3=dev3 ind4=dev4 ind5=dev5 //k=1 r=0 g=191 b=255 else ind0=dev6 ind1=dev7 ind2=dev8 ind3=dev9 ind4=dev10 ind5=dev11 //k=-1 r=255 g=128 b=0 endif //ORIG return ind0 COLOURED BY k,ind1 coloured by k,ind2 coloured by k,ind3 coloured by k// //ORANGE AND LIGHT BLUE return ind0 coloured(r,g,b) style(dottedline,2) as "Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Dev Stop 6.0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108

  //Settings n=30   p1=1.0 p2=2.2 p3=3.6 p4=4.5 p5=6.0   difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference)   dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev   if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif   dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev   if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif   if close>dev11[1] then flag=-1 else if close<dev5[1] then flag=1 endif endif   if flag=-1 then ind0=dev0 ind1=dev1 ind2=dev2 ind3=dev3 ind4=dev4 ind5=dev5 //k=1 r=0 g=191 b=255 else ind0=dev6 ind1=dev7 ind2=dev8 ind3=dev9 ind4=dev10 ind5=dev11 //k=-1 r=255 g=128 b=0 endif   //ORIG return ind0 COLOURED BY k,ind1 coloured by k,ind2 coloured by k,ind3 coloured by k//   //ORANGE AND LIGHT BLUE return ind0 coloured(r,g,b) style(dottedline,2) as "Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Dev Stop 6.0"

  And one of upteen attempts to get it to work – including taking the “else” out after the code: r=0, g=191, b=255 and relabelling dev0 etc longdev0, to creating a unique set on ind0 etc to ind5 and making it in ind6 (instead of ind0) in the second set of “ind” values.

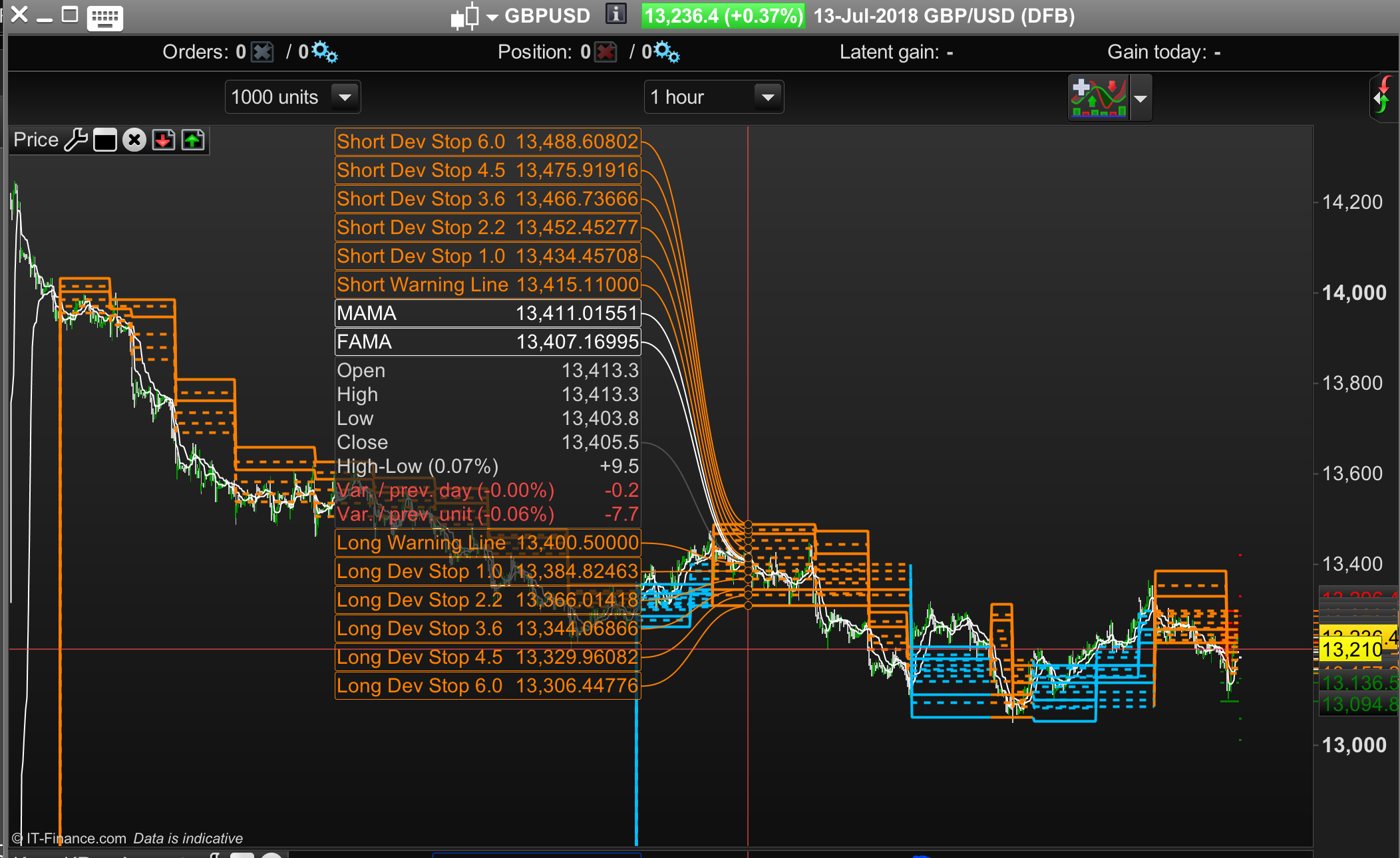

  Double plotting code: Incorrect double plotting of Dev Stops (orange and blue lines labelled as both long and short )

  Incorrect double plotting of Dev Stops (orange and blue lines labelled as long and short )

  //Settings n=30 p1=1.0 p2=2.2 p3=3.6 p4=4.5 p5=6.0 difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference) dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif if close>dev11[1] then ind0=dev0 ind1=dev1 ind2=dev2 ind3=dev3 ind4=dev4 ind5=dev5 r=0 g=191 b=255 endif if close<dev5[1] then ind6=dev6 ind7=dev7 ind8=dev8 ind9=dev9 ind10=dev10 ind11=dev11 r=255 g=128 b=0 endif //ORANGE AND LIGHT BLUE return ind0 coloured(r,g,b) style(dottedline,2) as "Long Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Long Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Long Dev Stop 6.0" , ind6 coloured(r,g,b) style(dottedline,2) as "Short Warning Line", ind7 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 1.0", ind8 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 2.2", ind9 coloured(r,g,b) style(line,2) as "Short Dev Stop 3.6", ind10 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 4.5", ind11 coloured(r,g,b) style(line,2) as "Short Dev Stop 6.0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104

  //Settings n=30   p1=1.0 p2=2.2 p3=3.6 p4=4.5 p5=6.0   difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference)   dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev   if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif       dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev   if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif   if close>dev11[1] then   ind0=dev0 ind1=dev1 ind2=dev2 ind3=dev3 ind4=dev4 ind5=dev5   r=0 g=191 b=255 endif   if close<dev5[1] then   ind6=dev6 ind7=dev7 ind8=dev8 ind9=dev9 ind10=dev10 ind11=dev11   r=255 g=128 b=0 endif   //ORANGE AND LIGHT BLUE return ind0 coloured(r,g,b) style(dottedline,2) as "Long Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Long Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Long Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Long Dev Stop 6.0"    , ind6 coloured(r,g,b) style(dottedline,2) as "Short Warning Line", ind7 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 1.0", ind8 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 2.2", ind9 coloured(r,g,b) style(line,2) as "Short Dev Stop 3.6", ind10 coloured(r,g,b) style(dottedline,2) as "Short Dev Stop 4.5", ind11 coloured(r,g,b) style(line,2) as "Short Dev Stop 6.0"

  This is probably really, really simple for a coder…. lol…

  More about the Kase ATR Dev Stop here: https://www.prorealcode.com/prorealtime-indicators/kase-dev-stop-v3/

  Thanks in advance,
  Cheers
  Bard



  Bard

  Participant

  Topics: 138

  Replies: 814

  Been thanked: 99 times
  07/16/2018 at 9:20 AM #76072
  robertogozzi

  It does not duplicate lines, it’s you who DUPLICATED them at lines 91-96 and then returning all of them!

  The main issue is that their value is retained between bars, so there will always be 12 statuses to be displayed!

  If PRT supported alphanumeric variables it would be simple to set different TEXT to the original 6 variables (ind0-ind5) to tell SHORT from LONG data thus returning only 6 variables for 12 statuses, but this is not the case, so if you don’t want those many lines well… you have to back to the original code!

  Also, it would be great if you could use different RETURNs from within an IF…ENDIF block, but this is not the case, either!

  Only colours can help tell the difference with just the same label!



  1 user thanked author for this post.

  Bard



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17151

  Been thanked: 4040 times
  07/16/2018 at 11:27 AM #76077
  Bard

  Thanks @Robertogozzi,
  Duplication/Bars 91-96. Yes I know! You should’ve seen all the ways I tried to relabel those variables…
  Why doesn’t PRT support alphanumerics?

  Also do you know how you would optimise the Kase Dev Stop when using it in a system? It’s not like I am able to optimise values eg: between -1 and +1 by increments of 0.1 on a custom indicator like the Ehlers Supersmoother Oscillator (it’s on this forum, and -0.8 cross-overs to buy and + 0.8 cross-unders to sell are good values btw), because the Dev Stops are on the price chart and are  “fluid” in their ATR values? I know it can be done as a user on this forum did mention they’d optimised values and found that Dev Stop values of >4 and <5 worked best.

  Thanks again for you help,

  Best
  Bard



  Bard

  Participant

  Topics: 138

  Replies: 814

  Been thanked: 99 times
  07/16/2018 at 11:53 AM #76079
  robertogozzi

  Support for alphanumeric data would make the system much more difficult to manage, since they should add text support (parsing, concatenation, contraction, deletion, replacement) which would involve “garbage collection”, i.e. manage defragmentation of memory…. a difficult and time consuming process. I think these are the main reasons, but hopefully this might change in the years to come.

  As for Kase Dev Stop, sorry but I never dealt with it so I can’t be of help!

  1 user thanked author for this post.
