08/28/2022 at 12:16 PM #199740

amitoverseas40

Hi There PRC Team,

Please may I request someone to code the wickzone indicator for me?

I have checked the whole site and there isn’t anything available and I am unable to code despite my best efforts 🙁

Idea is very simple to find 2 or more wicks that are clustering the price zone on either up side OR downside and look for reversals as this is price rejection in any direction on break of these levels and keep shifting the pattern to the right.

Wick length should be a customizable parameter i.e. .40% or 50% etc.. along with the rectangle box to be customizable or simply put keep displaying

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/28/2022 at 12:24 PM #199745

amitoverseas40

amitoverseas40 wrote:

Hi There PRC Team,

Please may I request someone to code the wickzone indicator for me?

I have checked the whole site and there isn’t anything available and I am unable to code despite my best efforts 🙁

Idea is very simple to find 2 or more wicks that are clustering the price zone on either up side OR downside and look for reversals as this is price rejection in any direction on break of these levels and keep shifting the pattern to the right.

Wick length should be a customizable parameter i.e. .40% or 50% etc.. along with the rectangle box to be customizable or simply put keep displaying

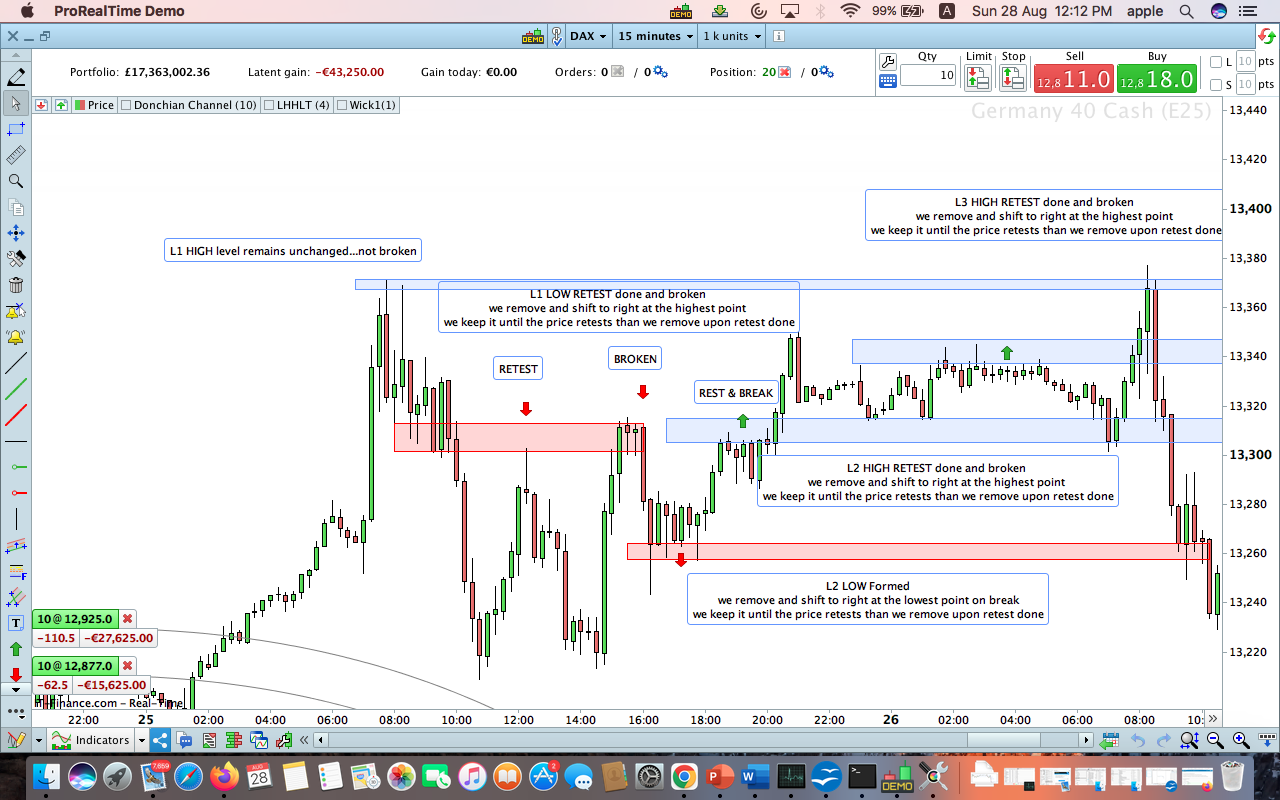

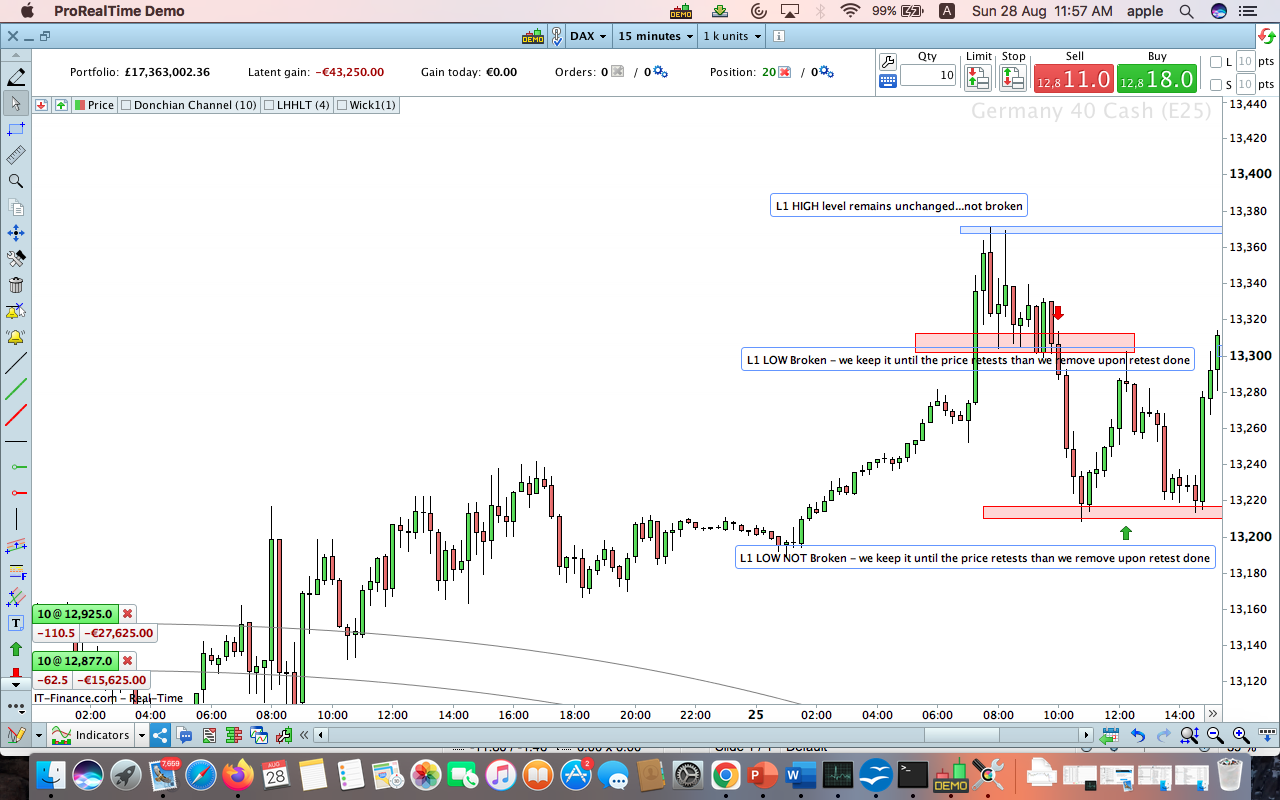

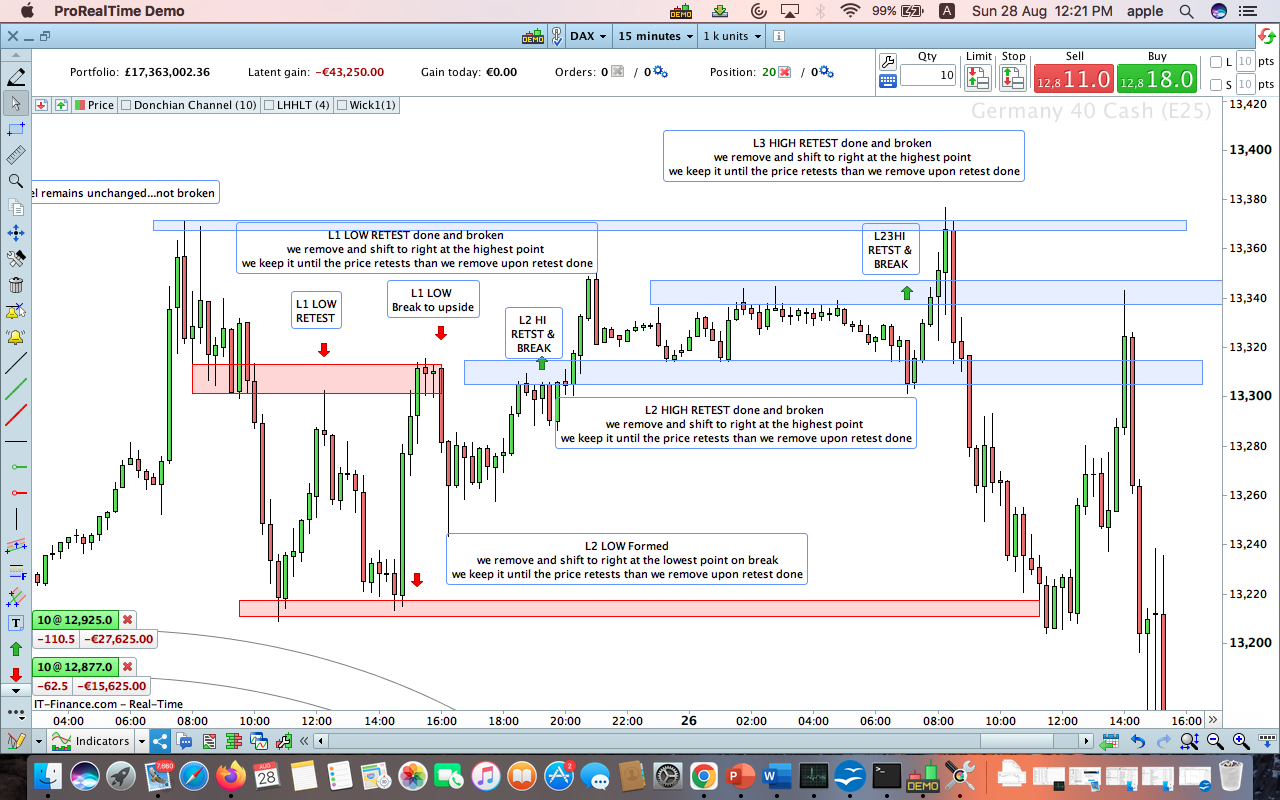

To avoid any confusion please view the last attachement

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 8:56 AM #199771

Nicolas

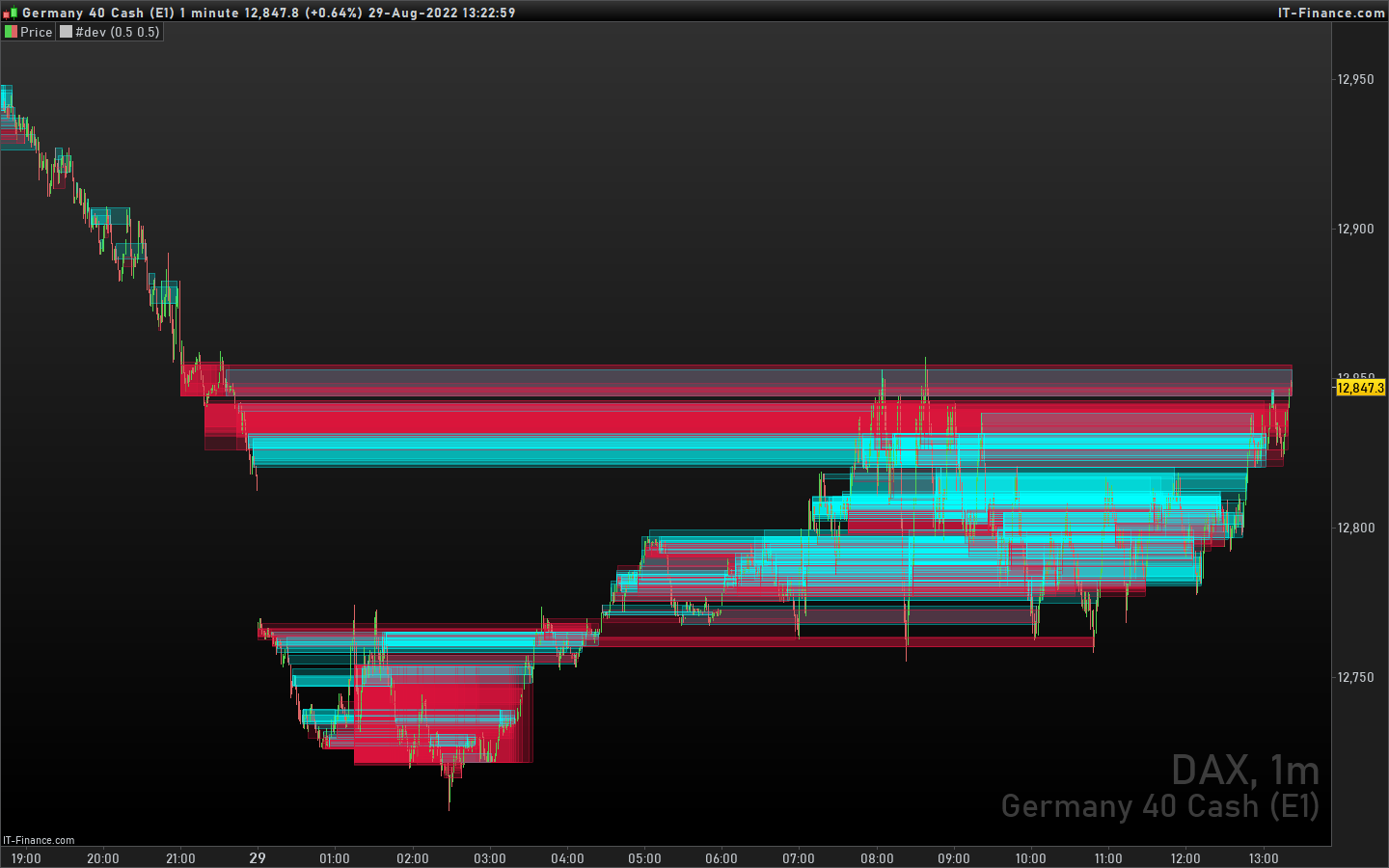

Not easy to achieve, here is the first step of your query, which roughly detects the “cluster” and draw the rectangle between at least 2 wicks in the same area.

defparam drawonlastbaronly=true

wickpercent = 50


//store wicks data
if (high-max(close,open))/range>=wickpercent/100 then
$wh[w] = high
$wl[w] = max(close,open)
$wbar[w] = barindex
$wtype[w] = 1
w = w + 1
endif
if (min(open,close)-low)/range>=wickpercent/100 then
$wh[w] = min(open,close)
$wl[w] = low
$wbar[w] = barindex
$wtype[w] = -1
w = w + 1
endif

if islastbarupdate and w>2 then
//fetch the wicks data set
for i = 0 to w-1
hh=$wh[i]
ll=$wl[i]
for j = i+1 to w-1
//within the range
mid = ($wh[j]+$wl[j])/2
//upper wick
if $wtype[i]=1 and $wtype[j]=1 then
if mid>=$wl[i] and mid<=$wh[i] then
drawrectangle(min($wbar[i],$wbar[j]),min(ll,$wl[j]),max($wbar[i],$wbar[j]),max(hh,$wh[j])) coloured("cyan",50) bordercolor("cyan",80)
endif
endif
//lower wick
if $wtype[i]=-1 and $wtype[j]=-1 then
if mid>=$wl[i] and mid<=$wh[i] then
drawrectangle(min($wbar[i],$wbar[j]),min(ll,$wl[j]),max($wbar[i],$wbar[j]),max(hh,$wh[j])) coloured("crimson",50) bordercolor("crimson",80)
endif
endif

next
next
endif

return w

defparam drawonlastbaronly=true

wickpercent = 50

//store wicks data

if (high-max(close,open))/range>=wickpercent/100 then

$wh[w] = high

$wl[w] = max(close,open)

$wbar[w] = barindex

$wtype[w] = 1

w = w + 1

endif

if (min(open,close)-low)/range>=wickpercent/100 then

$wh[w] = min(open,close)

$wl[w] = low

$wbar[w] = barindex

$wtype[w] = -1

w = w + 1

endif

if islastbarupdate and w>2 then

//fetch the wicks data set

for i = 0 to w-1

hh=$wh[i]

ll=$wl[i]

for j = i+1 to w-1

//within the range

mid = ($wh[j]+$wl[j])/2

//upper wick

if $wtype[i]=1 and $wtype[j]=1 then

if mid>=$wl[i] and mid<=$wh[i] then

drawrectangle(min($wbar[i],$wbar[j]),min(ll,$wl[j]),max($wbar[i],$wbar[j]),max(hh,$wh[j])) coloured("cyan",50) bordercolor("cyan",80)

endif

//lower wick

if $wtype[i]=-1 and $wtype[j]=-1 then

if mid>=$wl[i] and mid<=$wh[i] then

drawrectangle(min($wbar[i],$wbar[j]),min(ll,$wl[j]),max($wbar[i],$wbar[j]),max(hh,$wh[j])) coloured("crimson",50) bordercolor("crimson",80)

endif

return w

1 user thanked author for this post.

amitoverseas40

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

08/29/2022 at 9:34 AM #199780

amitoverseas40

Hi Nicolas,

Many thanks for the swift response and code. I do this day in and out, and it works beautifully, until I make a mess due to manual calculations and vision impairment 🙂 this is the key to losing trade in this strategy, 2 wrong trades based on missed cluster or wicks and there goes all the profit earned 🙂

I tried to put indicator on chart it errors with too many iterations were detected of the loop. Using 11.1 1.8.0 to be precise?

Thanks

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 1:16 PM #199788

Nicolas

What timeframe and units displayed? Try to reduce displayed units.

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

08/29/2022 at 1:20 PM #199789

amitoverseas40

Hi Nicholas,

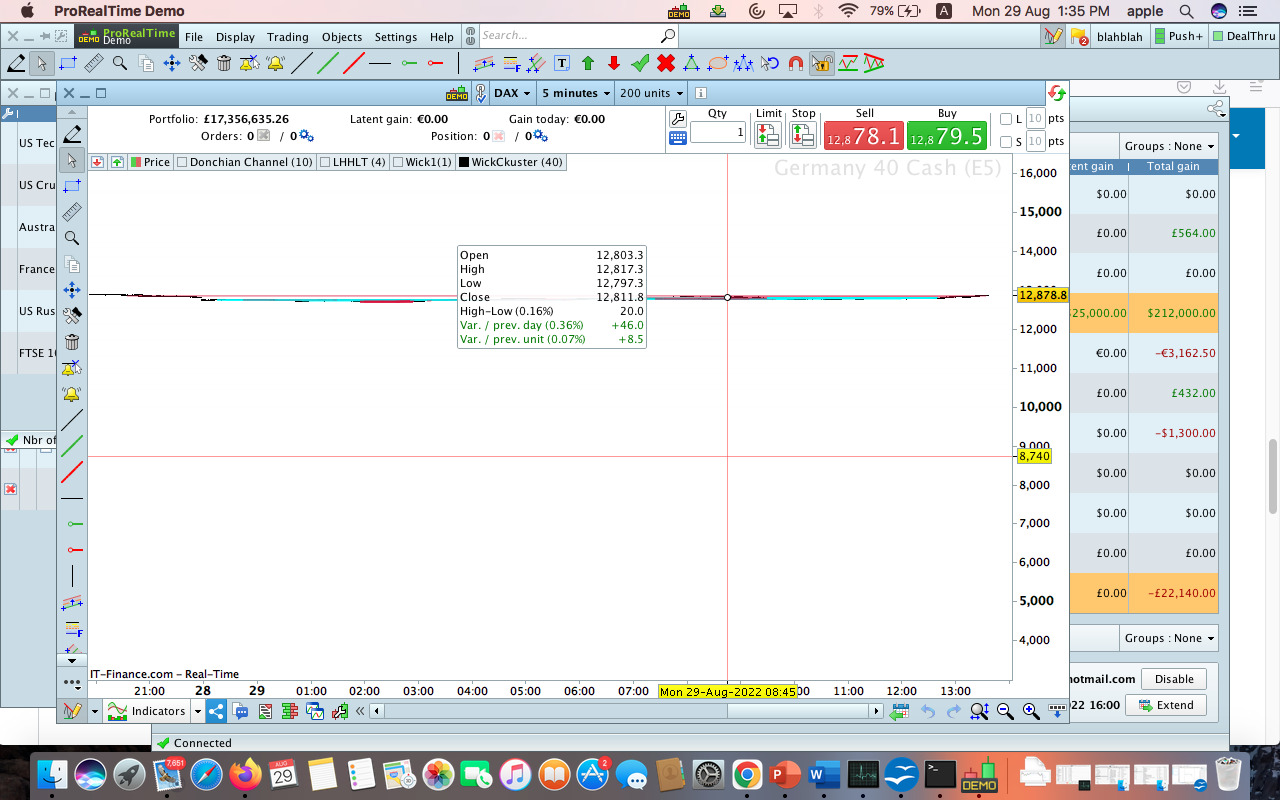

Tried all timeframes from 1 min to 1 hr and even with 25 units etc but either the chart is not displayed properly or I get the loop error. Any chance you can post the screen shot with settings so I can use the same please?

Thanks

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 1:23 PM #199792

Nicolas

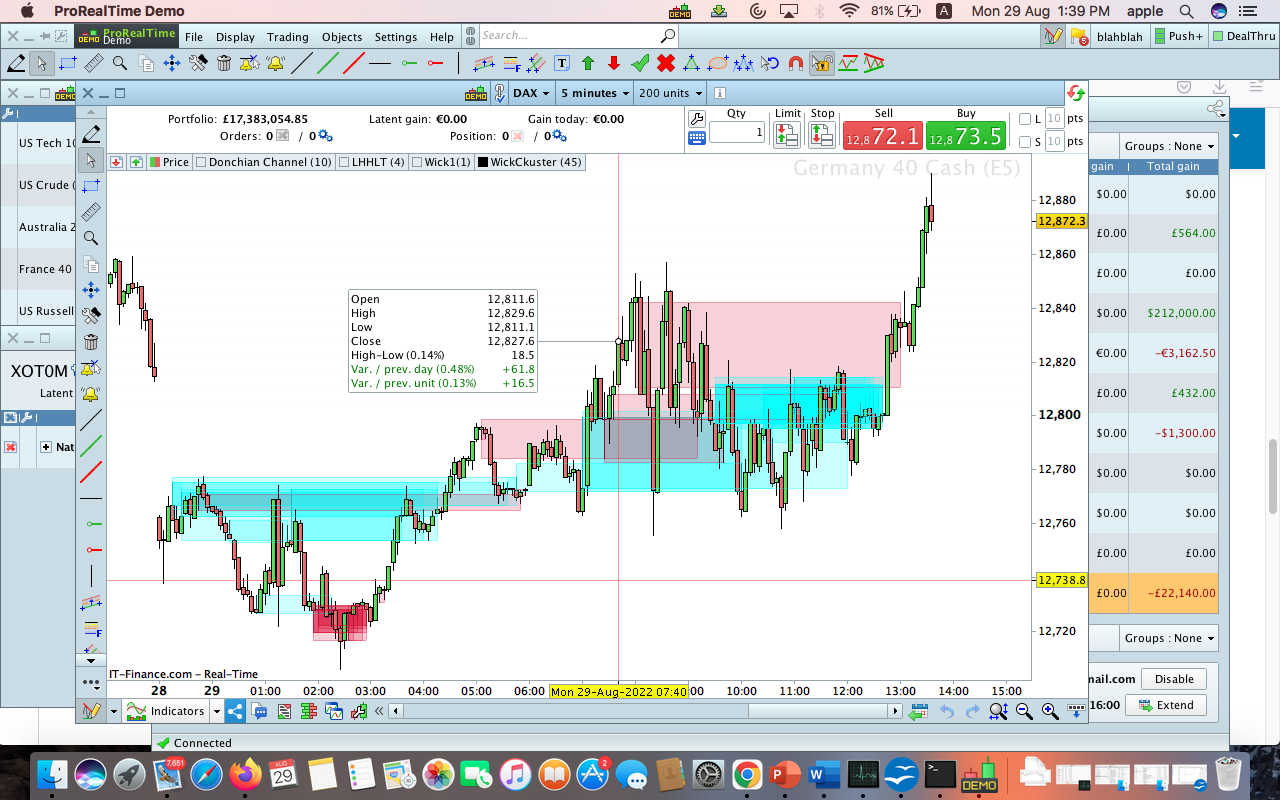

Here it is.

1 user thanked author for this post.

amitoverseas40

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

08/29/2022 at 1:43 PM #199797

amitoverseas40

Hi Nicolas, many thanks, for some bizzare reason it keeps the display as scewed..I’ve to do adjustment to display correctly, nontheless, concept is simple…buy above the break of blue’s and sell below the break of red! works nicely with proper risk mgmt..I call it wick pivots…need the target set..for me it’s easy to see the next target UPSIDE for Dax at 920 after break from 840…if we can get that displayed than we are good.

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 2:11 PM #199803

Nicolas

remove w from the last line or set your price scale to use “price only”.

1 user thanked author for this post.

amitoverseas40

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

08/29/2022 at 2:26 PM #199804

amitoverseas40

Ah, now it works after removing w and with less units, many thanks Nicolas! appreciate your help!

let’s try and see if my visual impairment gets better with this…strategy hasn’t let me down but my own mistakes in identifying the levels so far!

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 2:38 PM #199807

amitoverseas40

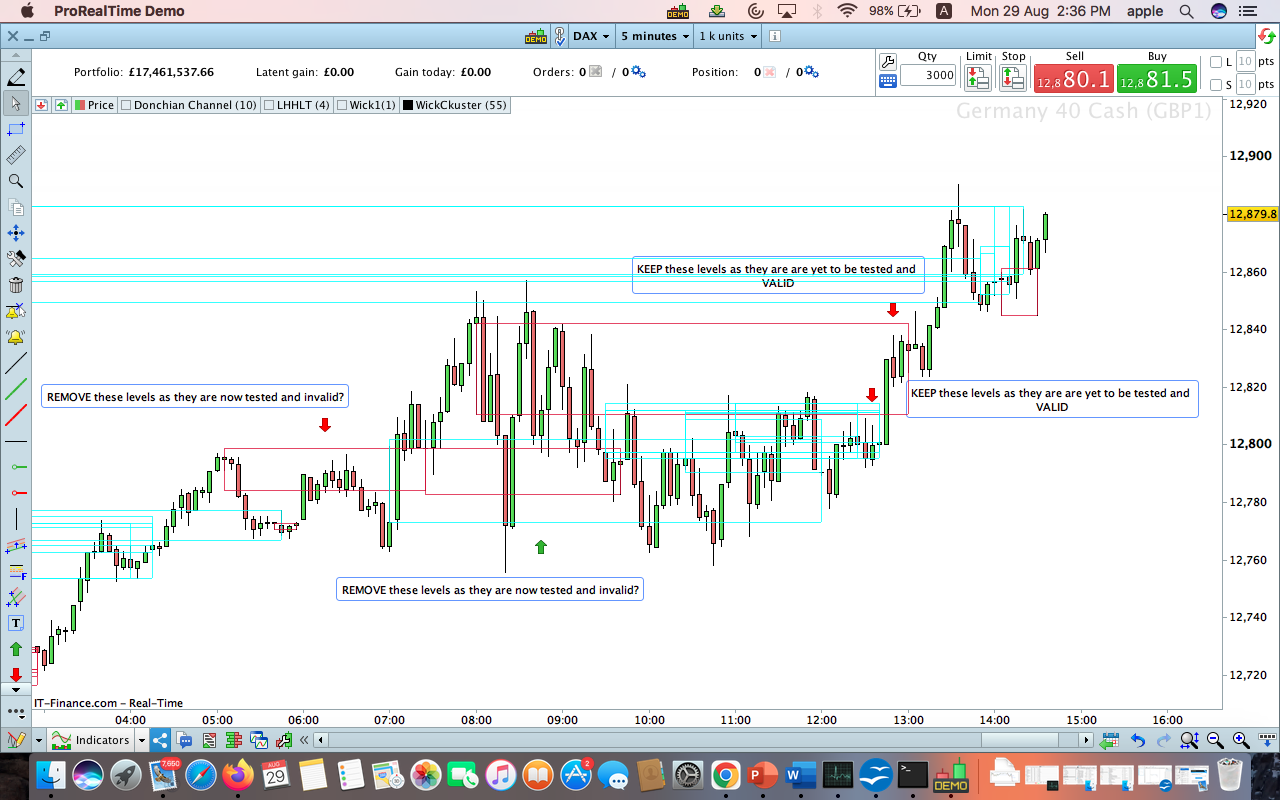

1 more ask pls, apologies, to remove the levels that have been tested in order to avoid chaos on the chart and clearly see the one’s that are yet to be breached?

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 2:58 PM #199813

amitoverseas40

Dax ..920 almost breached with hi 915 😁

Now if we go below 850, clear way towards 820…

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 3:09 PM #199815

amitoverseas40

amitoverseas40 wrote:

Dax ..920 almost breached with hi 915 😁

Now if we go below 850, clear way towards 820…

or towards 980ishh on clear break of 920 and above on price holding and not dropping below 870

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times

08/29/2022 at 5:02 PM #199838

Nicolas

Please define precisely, with a simple example, why one of the level should be erased (with a code logic).

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

08/29/2022 at 9:21 PM #199848

amitoverseas40

Hi Nicolas, cannot explain with code logic , wish I could, however, simple logic is that price has moved to the right forming new highs and lows…so what happened to these precious levels tested and broken isn’t valid anymore,if this makes any sense? In my chart I posted I have tried to mention by marking the ones we can remove but keep the ones that are yet to be tested etc…

amitoverseas40

Participant

Topics: 12

Replies: 55

Been thanked: 4 times
