Zig Zag with Value

• 09/25/2017 at 11:03 AM #47224
  Ayd68

  Hi guys, Ive been having a look around the forum but cant seem to find anything which shows the value of the zig zag. I have this indicator on MT4 but much prefer Pro Realtime so hoping someone could point me in the right direction!

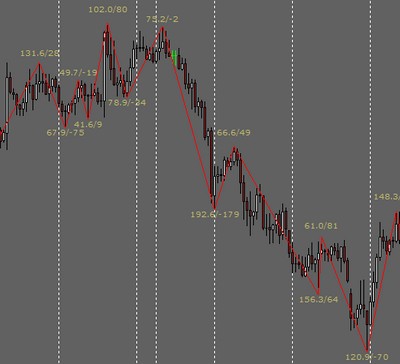

  I’ve attached a picture from the MT4 indicator.

  Many Thanks in advance for your help!



  Ayd68

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  09/25/2017 at 2:29 PM #47272
  AVT

  1. go to Library
  2. use “view entire library as list”
  3. in your browser (usually under “Edit”) use “search” and enter “zig”
  4. this will go through everything with name or tag containing zig(zag)

  You will find for example this: https://www.prorealcode.com/prorealtime-indicators/fractals-zigzag/

  It is drawing the zigzag lines and putting a square at the end point.

  1. keep the site open in case you decide for it and for comparing the picture with the code.
  2. read the code
  3. the square is done by DRAWTEXT
  4. open the PRT documentation here: https://www.prorealcode.com/prorealtime-documentation/
  5. go to graphical
  6. go to DRAWTEXT (you end up here: https://www.prorealcode.com/documentation/drawtext/ )
  7. read it
  8. in Example 3 you find how to display values with DRAWTEXT, so it should be possible to use that indicator as your base.
  9. keep the site open in case you need to have a second look how it is done.

  Download the indicator and import it to your PRT, then use “modify code”

  1. give the indicator another name like Myfractals-zigzag
  2. from documentation we know, that the y-value is the price and we need to insert price values as #value# (instead of the squares)
  3. in the code it’s important, that those are exact values, i.e. nothing like + or * something to create a distance between candle and price for better view:

  snip of fractals_zigzag

  if LH>0 and (lastpoint=-1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(200,0,0,255) // red line from lastX/lastY to TOPx/TOPy DRAWTEXT("■",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy if LL<0 and (lastpoint=1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(0,200,0,255) // green line from lastX/lastY to BOTx/BOTy DRAWTEXT("■",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy

  1 2 3 4 5 6 7

  if LH>0 and (lastpoint=-1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(200,0,0,255) // red line from lastX/lastY to TOPx/TOPy DRAWTEXT("■",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy   if LL<0 and (lastpoint=1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(0,200,0,255) // green line from lastX/lastY to BOTx/BOTy DRAWTEXT("■",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy



  1. the value for/instead of the red square should be TOPy and for/instead of the green square should be BOTy
  2. so we change the corresponding lines to:

  value for square

  DRAWTEXT("#TOPy#",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy DRAWTEXT("#BOTy#",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy

  1 2 3

  DRAWTEXT("#TOPy#",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy   DRAWTEXT("#BOTy#",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy



  Save and test, if test ok, done, if not cry 😉

  Please note, due to leaving IG I don’t have PRT any longer for testing, but that’s the way I go if I need to create/modify indicators.

  2 users thanked author for this post.

  Alai-n, Nicolas



  AVT

  Participant

  Topics: 17

  Replies: 186

  Been thanked: 58 times
  09/25/2017 at 3:29 PM #47280
  AVT

  uppsss, seems we lost the closing tag for PRT code somewhere on our way.

  if LH>0 and (lastpoint=-1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(200,0,0,255) // red line from lastX/lastY to TOPx/TOPy DRAWTEXT("■",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy // replaced: DRAWTEXT("#TOPy#",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy if LL<0 and (lastpoint=1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(0,200,0,255) // green line from lastX/lastY to BOTx/BOTy DRAWTEXT("■",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy // replaced: DRAWTEXT("#BOTy#",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy

  1 2 3 4 5 6 7 8 9 10 11

  if LH>0 and (lastpoint=-1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(200,0,0,255)     // red line from lastX/lastY to TOPx/TOPy DRAWTEXT("■",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy // replaced: DRAWTEXT("#TOPy#",TOPx,TOPy,Dialog,Bold,20) coloured(200,0,0,255) // red "square" at top with y-value=TOPy   if LL<0 and (lastpoint=1 or lastpoint=0) then DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(0,200,0,255)     // green line from lastX/lastY to BOTx/BOTy DRAWTEXT("■",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy // replaced: DRAWTEXT("#BOTy#",BOTx,BOTy,Dialog,Bold,20) coloured(0,200,0,255) // green "square" at bottom with y-value=BOTy





  AVT

  Participant

  Topics: 17

  Replies: 186

  Been thanked: 58 times
  09/25/2017 at 3:31 PM #47281
  Nicolas

  ahaha @AVT, I just reformatted your first post already 😆

  2 users thanked author for this post.

  Ayd68, AVT



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  09/25/2017 at 3:40 PM #47283
  AVT

  Hihihi, I was just going to write a note, that I have difficulties when deleting text after PRT code and catching the end-pre tag with that (missing “toggle control characters”).

  Thanks a lot for watching.

  1 user thanked author for this post.

  Ayd68



  AVT

  Participant

  Topics: 17

  Replies: 186

  Been thanked: 58 times
  09/25/2017 at 8:42 PM #47304
  Ayd68

  AVT thank you so much! Ill give that a go now 🙂



  Ayd68

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  01/19/2018 at 10:31 PM #59935
  mikael

  I have been looking to exactly the same indicator. Did you get it to work?



  mikael

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
