Zigzag Fibonacci – an addition required

This topic has 13 replies, 3 voices, and was last updated 5 years ago by Angus Thomson.

Viewing 14 posts - 1 through 14 (of 14 total)

12/31/2019 at 2:35 PM #115653

Angus Thomson

Hello troops,

https://www.prorealcode.com/prorealtime-indicators/zigzag-fibonacci-levels/

I was wondering if anyone could help modify this to add on -23.6 -36.2% -50% and so on

It is of course an excellent indicator, although it could be more excellent.

Thanks

Angus Thomson

Participant

Topics: 4

Replies: 12

Been thanked: 0 times

12/31/2019 at 3:08 PM #115655

GraHal

The Fib levels you ask for above are already built-in to the Indicator … see the red arrowheads on attached.

GraHal

Participant

Topics: 214

Replies: 8884

Been thanked: 2224 times

12/31/2019 at 3:18 PM #115657

Vonasi

I think Angus means negative values. So the 0% fib is at the top and the 100% fib is at the bottom. So after an upwards zigzag line the fib would be 0% down to 100% and after a downwards zigzag line the fib would be 0% up to 100%.

Unfortunately I’m a bit too busy at the moment to have a go at it.

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

12/31/2019 at 3:42 PM #115663

GraHal

Ah right yeah gotcha … yes that would be a useful improvement.

Cheers

GraHal

Participant

Topics: 214

Replies: 8884

Been thanked: 2224 times

12/31/2019 at 5:19 PM #115668

Vonasi

I found five minutes and came up with this modification that I think does what you want. (Not tested very much!)

//PRC_ZigZag Fibonacci levels | indicator
//Modified by Vonasi 31122019 to return negative Fibonacci Levels
//17.10.2018
//Nicolas @ www.prorealcode.com
//Sharing ProRealTime knowledge

//defparam drawonlastbaronly=true

// --- settings
//percent = 0.5
//color:
//r=255
//g=255
//b=0
//DaysBefore = 20
// --- end of settings

zz = zigzag[percent](close)

top = zz<zz[1] and zz[1]>zz[2]
bot = zz>zz[1] and zz[1]<zz[2]

if top then
highlvl = high[1]
startbartop = barindex[1]
idate = date[1]
endif
if bot then
lowlvl = low[1]
startbarbot = barindex[1]
idate = date[1]
endif

newtop = top<>top[1]
newbot = bot<>bot[1]

if newbot then
fullrange = abs(highlvl-lowlvl)

fibo236 = lowlvl+(fullrange*0.236)
fibo382 = lowlvl+(fullrange*0.382)
fibo50 = lowlvl+fullrange/2
fibo618 = lowlvl+(fullrange*0.618)
startbar = min(startbartop,startbarbot)
titlea = 100
titleb = 0
endif

if newtop then
fullrange = abs(highlvl-lowlvl)

fibo236 = highlvl-(fullrange*0.236)
fibo382 = highlvl-(fullrange*0.382)
fibo50 = highlvl-fullrange/2
fibo618 = highlvl-(fullrange*0.618)
startbar = min(startbartop,startbarbot)
titlea = 0
titleb = 100
endif
//plot fibonacci levels
if startbar<>lastplot and today-idate<DaysBefore then
drawsegment(startbar,highlvl,barindex,highlvl) coloured(r,g,b)
drawtext("          #titlea#%",barindex,highlvl,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,lowlvl,barindex,lowlvl) coloured(r,g,b)
drawtext("          #titleb#%",barindex,lowlvl,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo236,barindex,fibo236) coloured(r,g,b)
drawtext("          23.6%",barindex,fibo236,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo382,barindex,fibo382) coloured(r,g,b)
drawtext("          38.2%",barindex,fibo382,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo50,barindex,fibo50) coloured(r,g,b)
drawtext("          50%",barindex,fibo50,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo618,barindex,fibo618) coloured(r,g,b)
drawtext("          61.8%",barindex,fibo618,Dialog,Standard,10) coloured(r,g,b)
lastplot = startbar
endif

return

//PRC_ZigZag Fibonacci levels | indicator

//Modified by Vonasi 31122019 to return negative Fibonacci Levels

//17.10.2018

//Nicolas @ www.prorealcode.com

//Sharing ProRealTime knowledge

//defparam drawonlastbaronly=true

// --- settings

//percent = 0.5

//color:

//r=255

//g=255

//b=0

//DaysBefore = 20

// --- end of settings

zz = zigzag[percent](close)

top = zz<zz[1] and zz[1]>zz[2]

bot = zz>zz[1] and zz[1]<zz[2]

if top then

highlvl = high[1]

startbartop = barindex[1]

idate = date[1]

endif

if bot then

lowlvl = low[1]

startbarbot = barindex[1]

idate = date[1]

endif

newtop = top<>top[1]

newbot = bot<>bot[1]

if newbot then

fullrange = abs(highlvl-lowlvl)

fibo236 = lowlvl+(fullrange*0.236)

fibo382 = lowlvl+(fullrange*0.382)

fibo50 = lowlvl+fullrange/2

fibo618 = lowlvl+(fullrange*0.618)

startbar = min(startbartop,startbarbot)

titlea = 100

titleb = 0

endif

if newtop then

fullrange = abs(highlvl-lowlvl)

fibo236 = highlvl-(fullrange*0.236)

fibo382 = highlvl-(fullrange*0.382)

fibo50 = highlvl-fullrange/2

fibo618 = highlvl-(fullrange*0.618)

startbar = min(startbartop,startbarbot)

titlea = 0

titleb = 100

endif

//plot fibonacci levels

if startbar<>lastplot and today-idate<DaysBefore then

drawsegment(startbar,highlvl,barindex,highlvl) coloured(r,g,b)

drawtext(" #titlea#%",barindex,highlvl,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,lowlvl,barindex,lowlvl) coloured(r,g,b)

drawtext(" #titleb#%",barindex,lowlvl,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo236,barindex,fibo236) coloured(r,g,b)

drawtext(" 23.6%",barindex,fibo236,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo382,barindex,fibo382) coloured(r,g,b)

drawtext(" 38.2%",barindex,fibo382,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo50,barindex,fibo50) coloured(r,g,b)

drawtext(" 50%",barindex,fibo50,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo618,barindex,fibo618) coloured(r,g,b)

drawtext(" 61.8%",barindex,fibo618,Dialog,Standard,10) coloured(r,g,b)

lastplot = startbar

endif

return

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

12/31/2019 at 7:31 PM #115670

GraHal

Grand Job! Works a Treat!

Thank You Vonasi
Happy New Year

GraHal

Participant

Topics: 214

Replies: 8884

Been thanked: 2224 times

12/31/2019 at 8:04 PM #115671

Vonasi

Happy New Year to you too GraHal!

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

01/04/2020 at 12:41 PM #115869

Angus Thomson

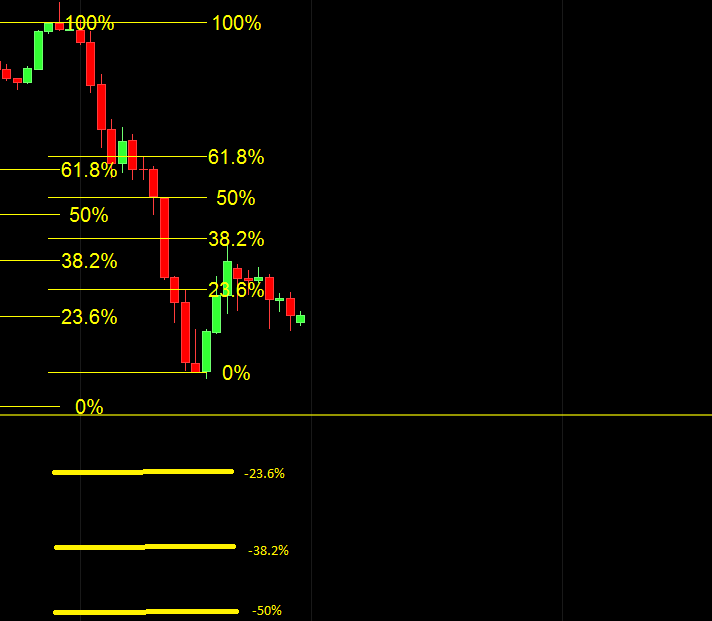

I was hoping for something more like the attached

Angus Thomson

Participant

Topics: 4

Replies: 12

Been thanked: 0 times

01/04/2020 at 6:30 PM #115893

Vonasi

That was a wasted five minutes that I’ll never get back again then!

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

01/04/2020 at 7:53 PM #115894

Angus Thomson

Not being funny but all you did was make the font smaller and the line less thick

Have another go please

Angus Thomson

Participant

Topics: 4

Replies: 12

Been thanked: 0 times

01/04/2020 at 9:41 PM #115899

Vonasi

Not being funny but all I did was read your poor description of what you wanted which even GraHal didn’t understand and then code something that I thought you wanted. My code does what I described in my second post so it is far more than just a font size change. I changed the font size only because the large size was ugly.

Perhaps a thanks instead of an insult would be more of an incentive to assist further.

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

01/04/2020 at 9:46 PM #115900

GraHal

Angus Thomson wrote:

Not being funny but all you did was make the font smaller and the line less thick

Vonasi changed the Indicator so that …

from a Top we can see / read the % Fib retrace down from the Top.
from a Bottom we see / read the % Fib retrace up from the Bottom.

GraHal

Participant

Topics: 214

Replies: 8884

Been thanked: 2224 times

01/05/2020 at 3:13 PM #115930

Vonasi

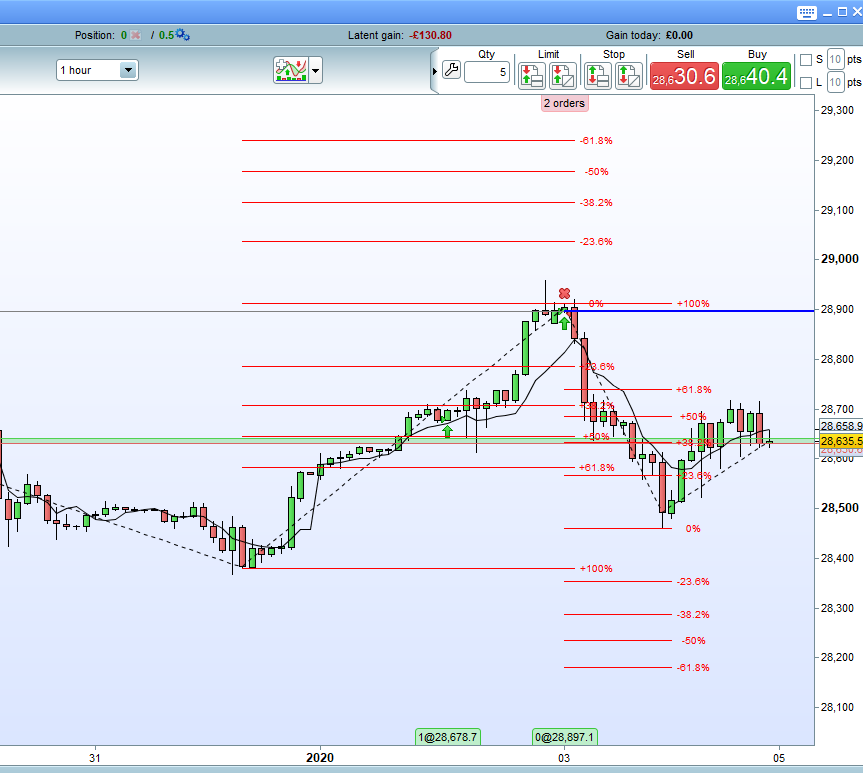

Here you go. This one not only inverts the fibs but draws your negative value fibs too. Another five minutes of life I won’t get back as they are pretty pointless because price never gets into the negative because if it does then the ZigZag redraws and so does our indicator as we no longer have a new bottom or a new top!

I didn’t waste too much time on it so not really tested and you might find the odd bug.

//PRC_ZigZag Fibonacci levels | indicator
//Modified by Vonasi 05012019 to return negative Fibonacci Levels v2
//17.10.2018
//Nicolas @ www.prorealcode.com
//Sharing ProRealTime knowledge

//defparam drawonlastbaronly=true

// --- settings
//percent = 0.5
//color:
//r=255
//g=255
//b=0
//DaysBefore = 20
// --- end of settings

zz = zigzag[percent](close)

top = zz<zz[1] and zz[1]>zz[2]
bot = zz>zz[1] and zz[1]<zz[2]

if top then
highlvl = high[1]
startbartop = barindex[1]
idate = date[1]
endif
if bot then
lowlvl = low[1]
startbarbot = barindex[1]
idate = date[1]
endif

newtop = top<>top[1]
newbot = bot<>bot[1]

if newbot then
fullrange = abs(highlvl-lowlvl)

fibo0 = lowlvl
fibo236 = lowlvl+(fullrange*0.236)
fibo382 = lowlvl+(fullrange*0.382)
fibo50 = lowlvl+fullrange/2
fibo618 = lowlvl+(fullrange*0.618)
fibo100 = lowlvl+fullrange

fibo236n = lowlvl-(fullrange*0.236)
fibo382n = lowlvl-(fullrange*0.382)
fibo50n = lowlvl-fullrange/2
fibo618n = lowlvl-(fullrange*0.618)
fibo100n = lowlvl-fullrange

startbar = min(startbartop,startbarbot)
endif

if newtop then
fullrange = abs(highlvl-lowlvl)

fibo0 = highlvl
fibo236 = highlvl-(fullrange*0.236)
fibo382 = highlvl-(fullrange*0.382)
fibo50 = highlvl-fullrange/2
fibo618 = highlvl-(fullrange*0.618)
fibo100 = highlvl-fullrange

fibo236n = highlvl+(fullrange*0.236)
fibo382n = highlvl+(fullrange*0.382)
fibo50n = highlvl+fullrange/2
fibo618n = highlvl+(fullrange*0.618)
fibo100n = highlvl+fullrange

startbar = min(startbartop,startbarbot)
endif
//plot fibonacci levels
if startbar<>lastplot and today-idate<DaysBefore then
drawsegment(startbar,fibo0,barindex,fibo0) coloured(r,g,b)
drawtext("               0%",barindex,fibo0,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo100,barindex,fibo100) coloured(r,g,b)
drawtext("               +100%",barindex,fibo100,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo100n,barindex,fibo100n) coloured(r,g,b)
drawtext("               -100%",barindex,fibo100n,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo236,barindex,fibo236) coloured(r,g,b)
drawtext("               +23.6%",barindex,fibo236,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo382,barindex,fibo382) coloured(r,g,b)
drawtext("               +38.2%",barindex,fibo382,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo50,barindex,fibo50) coloured(r,g,b)
drawtext("               +50%",barindex,fibo50,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo618,barindex,fibo618) coloured(r,g,b)
drawtext("               +61.8%",barindex,fibo618,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo236n,barindex,fibo236n) coloured(r,g,b)
drawtext("               -23.6%",barindex,fibo236n,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo382n,barindex,fibo382n) coloured(r,g,b)
drawtext("               -38.2%",barindex,fibo382n,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo50n,barindex,fibo50n) coloured(r,g,b)
drawtext("               -50%",barindex,fibo50n,Dialog,Standard,10) coloured(r,g,b)
drawsegment(startbar,fibo618n,barindex,fibo618n) coloured(r,g,b)
drawtext("               -61.8%",barindex,fibo618n,Dialog,Standard,10) coloured(r,g,b)
lastplot = startbar
endif

return

100

101

102

103

//PRC_ZigZag Fibonacci levels | indicator

//Modified by Vonasi 05012019 to return negative Fibonacci Levels v2

//17.10.2018

//Nicolas @ www.prorealcode.com

//Sharing ProRealTime knowledge

//defparam drawonlastbaronly=true

// --- settings

//percent = 0.5

//color:

//r=255

//g=255

//b=0

//DaysBefore = 20

// --- end of settings

zz = zigzag[percent](close)

top = zz<zz[1] and zz[1]>zz[2]

bot = zz>zz[1] and zz[1]<zz[2]

if top then

highlvl = high[1]

startbartop = barindex[1]

idate = date[1]

endif

if bot then

lowlvl = low[1]

startbarbot = barindex[1]

idate = date[1]

endif

newtop = top<>top[1]

newbot = bot<>bot[1]

if newbot then

fullrange = abs(highlvl-lowlvl)

fibo0 = lowlvl

fibo236 = lowlvl+(fullrange*0.236)

fibo382 = lowlvl+(fullrange*0.382)

fibo50 = lowlvl+fullrange/2

fibo618 = lowlvl+(fullrange*0.618)

fibo100 = lowlvl+fullrange

fibo236n = lowlvl-(fullrange*0.236)

fibo382n = lowlvl-(fullrange*0.382)

fibo50n = lowlvl-fullrange/2

fibo618n = lowlvl-(fullrange*0.618)

fibo100n = lowlvl-fullrange

startbar = min(startbartop,startbarbot)

endif

if newtop then

fullrange = abs(highlvl-lowlvl)

fibo0 = highlvl

fibo236 = highlvl-(fullrange*0.236)

fibo382 = highlvl-(fullrange*0.382)

fibo50 = highlvl-fullrange/2

fibo618 = highlvl-(fullrange*0.618)

fibo100 = highlvl-fullrange

fibo236n = highlvl+(fullrange*0.236)

fibo382n = highlvl+(fullrange*0.382)

fibo50n = highlvl+fullrange/2

fibo618n = highlvl+(fullrange*0.618)

fibo100n = highlvl+fullrange

startbar = min(startbartop,startbarbot)

endif

//plot fibonacci levels

if startbar<>lastplot and today-idate<DaysBefore then

drawsegment(startbar,fibo0,barindex,fibo0) coloured(r,g,b)

drawtext(" 0%",barindex,fibo0,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo100,barindex,fibo100) coloured(r,g,b)

drawtext(" +100%",barindex,fibo100,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo100n,barindex,fibo100n) coloured(r,g,b)

drawtext(" -100%",barindex,fibo100n,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo236,barindex,fibo236) coloured(r,g,b)

drawtext(" +23.6%",barindex,fibo236,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo382,barindex,fibo382) coloured(r,g,b)

drawtext(" +38.2%",barindex,fibo382,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo50,barindex,fibo50) coloured(r,g,b)

drawtext(" +50%",barindex,fibo50,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo618,barindex,fibo618) coloured(r,g,b)

drawtext(" +61.8%",barindex,fibo618,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo236n,barindex,fibo236n) coloured(r,g,b)

drawtext(" -23.6%",barindex,fibo236n,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo382n,barindex,fibo382n) coloured(r,g,b)

drawtext(" -38.2%",barindex,fibo382n,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo50n,barindex,fibo50n) coloured(r,g,b)

drawtext(" -50%",barindex,fibo50n,Dialog,Standard,10) coloured(r,g,b)

drawsegment(startbar,fibo618n,barindex,fibo618n) coloured(r,g,b)

drawtext(" -61.8%",barindex,fibo618n,Dialog,Standard,10) coloured(r,g,b)

lastplot = startbar

endif

return

1 user thanked author for this post.

Angus Thomson

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

01/06/2020 at 2:04 PM #116054

Angus Thomson

Thank you Vonasi I appreciate your hard work and I apologise for the poor description, please don’t feel like what you did was pointless.

Angus Thomson

Participant

Topics: 4

Replies: 12

Been thanked: 0 times

Author

Posts

Viewing 14 posts - 1 through 14 (of 14 total)

Find exclusive trading pro-tools on
