Distance to last fractal high

• 11/23/2024 at 3:35 AM #240681
  trwcapital

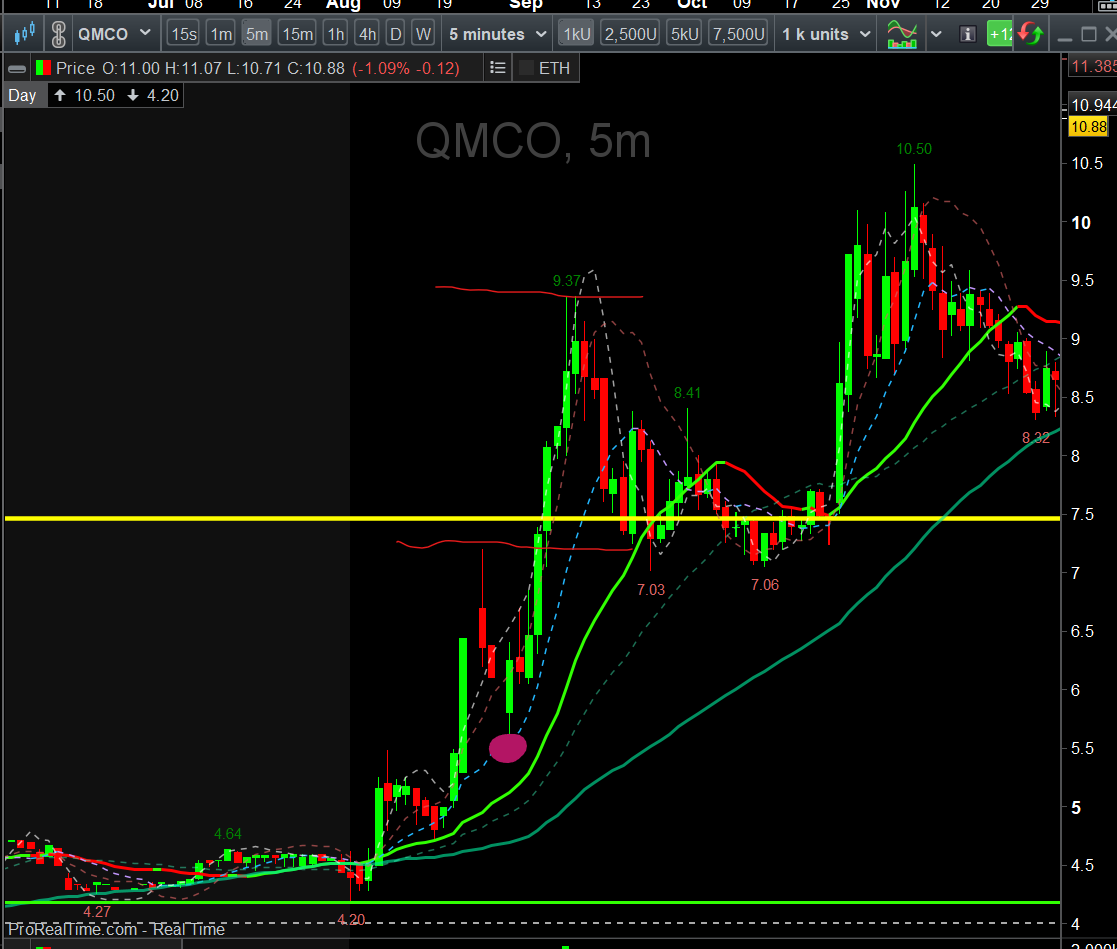

  I’m looking for some help to write code to define the distance to the last fractal high. In other words, what is the current distance to the last higher high (when there was at least 1 bar break lower). I’ve attached an example and drawn what I am defining as the fractal low (purple dot) and the distance I am trying to calculate (red lines). I assume this has to use an array of sorts but I’m not very well versed in those yet.



  trwcapital

  Participant

  Topics: 8

  Replies: 8

  Been thanked: 3 times
  11/23/2024 at 1:02 PM #240692
  robertogozzi

  I don’t know what indicator you used, so I made this one:

  // Fractls // // https://www.prorealcode.com/topic/distance-to-last-fractal-high/ // ONCE P = 15 ONCE HH = 0 ONCE HHprev = 0 ONCE LL = 0 ONCE LLprev = 0 ONCE LastFractal = 0 FractalDistance = 0 Offset = average[20,0](range) Bullish = close > open Bearish = close < open HIGHfractal = Bullish[1] AND Bearish AND (high[1] > high[2]) AND (high[1] > high) AND (high[1] = highest[P](high)) LOWfractal = Bearish[1] AND Bullish AND (low[1] < low[2]) AND (low[1] < low) AND (low[1] = lowest[P](low)) // IF HIGHfractal AND ((LastFractal = 0) OR (LastFractal = -1)) THEN LastFractal = 1 HHprev = HH HH = high[1] DrawText("●",BarIndex[1],high[1] + Offset,dialog,standard,15) coloured("Green") IF HHprev <> 0 THEN Gap = HH - HHprev DrawText("#Gap#",BarIndex[1],high[1] + Offset*2,dialog,standard,15) coloured("Green") ENDIF ENDIF // IF LOWfractal AND ((LastFractal = 0) OR (LastFractal = 1)) THEN LastFractal = -1 LLprev = LL LL = low[1] DrawText("●",BarIndex[1],low[1] - Offset,dialog,standard,15) coloured("Red") IF LLprev <> 0 THEN Gap = LLprev - LL DrawText("#Gap#",BarIndex[1],low[1] - Offset*2,dialog,standard,15) coloured("Red") ENDIF ENDIF // RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

  // Fractls // // https://www.prorealcode.com/topic/distance-to-last-fractal-high/ // ONCE P           = 15 ONCE HH          = 0 ONCE HHprev      = 0 ONCE LL          = 0 ONCE LLprev      = 0 ONCE LastFractal = 0 FractalDistance  = 0 Offset           = average[20,0](range) Bullish     = close > open Bearish     = close < open HIGHfractal = Bullish[1] AND Bearish AND (high[1] > high[2]) AND (high[1] > high) AND (high[1] = highest[P](high)) LOWfractal  = Bearish[1] AND Bullish AND (low[1]  < low[2])  AND (low[1]  < low)  AND (low[1]  = lowest[P](low)) // IF HIGHfractal AND ((LastFractal = 0) OR (LastFractal = -1)) THEN LastFractal = 1 HHprev = HH HH     = high[1] DrawText("●",BarIndex[1],high[1] + Offset,dialog,standard,15) coloured("Green") IF HHprev <> 0 THEN Gap = HH - HHprev DrawText("#Gap#",BarIndex[1],high[1] + Offset*2,dialog,standard,15) coloured("Green") ENDIF ENDIF // IF LOWfractal AND ((LastFractal = 0) OR (LastFractal = 1)) THEN LastFractal = -1 LLprev = LL LL     = low[1] DrawText("●",BarIndex[1],low[1] - Offset,dialog,standard,15) coloured("Red") IF LLprev <> 0 THEN Gap = LLprev - LL DrawText("#Gap#",BarIndex[1],low[1] - Offset*2,dialog,standard,15) coloured("Red") ENDIF ENDIF // RETURN



  1 user thanked author for this post.
