Bonjour,

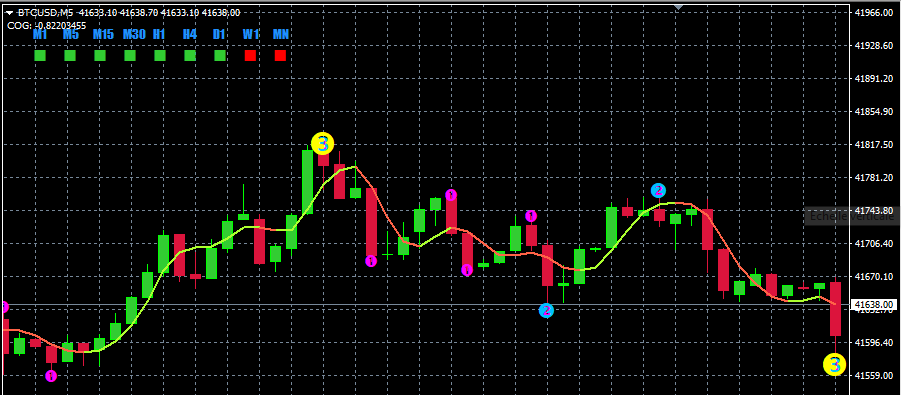

Est ce que quelqu’un saurait convertir l’indicateur CANDLES DIRECTION de Metatrader 4 et le placer en haut à gauche dans le graphique principal.

//+——————————————————————+
//| Candle Direction.mq4 |
//| Copyright 2014, Luis Andrianto |
//| https://login.mql5.com/en/users/lou15 |
//+——————————————————————+
#property copyright “”
#property link “”

#property indicator_chart_window
#property indicator_buffers 1

extern color LabelColor=DodgerBlue;
extern int Corner=0;
extern color UpColor=LimeGreen;
extern color DownColor=Red;
extern color NetralColor=White;

int TF[]={1,5,15,30,60,240,1440,10080,43200};
string Label[]={“M1″,”M5″,”M15″,”M30″,”H1″,”H4″,”D1″,”W1″,”MN”};
double ExtBuff[];

//+——————————————————————+
//| Custom indicator initialization function |
//+——————————————————————+
int init()
{
//—- indicators
SetIndexBuffer(0,ExtBuff,INDICATOR_DATA);

for(int i=0;i<=8;i++)
{
ObjectCreate(Label[i],OBJ_LABEL,0,0,0);
ObjectCreate(Label[i]+” ARROW”,OBJ_LABEL,0,0,0);
}
//—-
return(0);
}
//+——————————————————————+
//| Custom indicator deinitialization function |
//+——————————————————————+
int deinit()
{
//—-
for(int i=0;i<=8;i++)
{
ObjectDelete(Label[i]);
ObjectDelete(Label[i]+” ARROW”);
}
//—-
return(0);
}
//+——————————————————————+
//| Custom indicator iteration function |
//+——————————————————————+

double OCandle(int tf){double OC=iOpen(Symbol(),tf,0);return(OC);}
double CCandle(int tf){double CC=iClose(Symbol(),tf,0);return(CC);}

void ObSetLabel(string name,string text,int x,int y)
{
ObjectSetText(name,text,10,”Impact”,LabelColor);
ObjectSet(name,OBJPROP_CORNER,Corner);
ObjectSet(name,OBJPROP_XDISTANCE,x);
ObjectSet(name,OBJPROP_YDISTANCE,y);
ObjectSet(name,OBJPROP_BACK,0);
}
void ObSetArrow(string name,int code,int x,int y,color clr)
{
ObjectSetText(name,CharToStr(code),14,”Wingdings”,clr);
ObjectSet(name,OBJPROP_CORNER,Corner);
ObjectSet(name,OBJPROP_XDISTANCE,x);
ObjectSet(name,OBJPROP_YDISTANCE,y);
ObjectSet(name,OBJPROP_BACK,0);
}

int start()
{

//—-

int X_Start=0;
int Y_Start=20;
color clr;
for(int i=0;i<=8;i++)
{
X_Start=X_Start+30;

ObSetLabel(Label[i],Label[i],X_Start,Y_Start);

if(CCandle(TF[i])>OCandle(TF[i])){clr=UpColor;ExtBuff[i]=1;}
else if(CCandle(TF[i])<OCandle(TF[i])){clr=DownColor;ExtBuff[i]=2;}
else {clr=NetralColor;ExtBuff[i]=0;}

ObSetArrow(Label[i]+” ARROW”,110,X_Start,Y_Start+20,clr);
}
//—-
return(0);
}
//+——————————————————————+

01/27/2024 at 10:03 AM #226935 quote

ARLEQUIN49
Participant

Veteran

Bonjour,

J’aurais besoin d’une conversion de code d’un indicateur MT4.

//+——————————————————————+
//| Candle Direction.mq4 |
//| Copyright 2014, Luis Andrianto |
//| https://login.mql5.com/en/users/lou15 |
//+——————————————————————+
#property copyright “”
#property link “”

#property indicator_chart_window
#property indicator_buffers 1

extern color LabelColor=DodgerBlue;
extern int Corner=0;
extern color UpColor=LimeGreen;
extern color DownColor=Red;
extern color NetralColor=White;

int TF[]={1,5,15,30,60,240,1440,10080,43200};
string Label[]={“M1″,”M5″,”M15″,”M30″,”H1″,”H4″,”D1″,”W1″,”MN”};
double ExtBuff[];

//+——————————————————————+
//| Custom indicator initialization function |
//+——————————————————————+
int init()
{
//—- indicators
SetIndexBuffer(0,ExtBuff,INDICATOR_DATA);

for(int i=0;i<=8;i++)
{
ObjectCreate(Label[i],OBJ_LABEL,0,0,0);
ObjectCreate(Label[i]+” ARROW”,OBJ_LABEL,0,0,0);
}
//—-
return(0);
}
//+——————————————————————+
//| Custom indicator deinitialization function |
//+——————————————————————+
int deinit()
{
//—-
for(int i=0;i<=8;i++)
{
ObjectDelete(Label[i]);
ObjectDelete(Label[i]+” ARROW”);
}
//—-
return(0);
}
//+——————————————————————+
//| Custom indicator iteration function |
//+——————————————————————+

double OCandle(int tf){double OC=iOpen(Symbol(),tf,0);return(OC);}
double CCandle(int tf){double CC=iClose(Symbol(),tf,0);return(CC);}

void ObSetLabel(string name,string text,int x,int y)
{
ObjectSetText(name,text,10,”Impact”,LabelColor);
ObjectSet(name,OBJPROP_CORNER,Corner);
ObjectSet(name,OBJPROP_XDISTANCE,x);
ObjectSet(name,OBJPROP_YDISTANCE,y);
ObjectSet(name,OBJPROP_BACK,0);
}
void ObSetArrow(string name,int code,int x,int y,color clr)
{
ObjectSetText(name,CharToStr(code),14,”Wingdings”,clr);
ObjectSet(name,OBJPROP_CORNER,Corner);
ObjectSet(name,OBJPROP_XDISTANCE,x);
ObjectSet(name,OBJPROP_YDISTANCE,y);
ObjectSet(name,OBJPROP_BACK,0);
}

int start()
{

//—-

int X_Start=0;
int Y_Start=20;
color clr;
for(int i=0;i<=8;i++)
{
X_Start=X_Start+30;

ObSetLabel(Label[i],Label[i],X_Start,Y_Start);

if(CCandle(TF[i])>OCandle(TF[i])){clr=UpColor;ExtBuff[i]=1;}
else if(CCandle(TF[i])<OCandle(TF[i])){clr=DownColor;ExtBuff[i]=2;}
else {clr=NetralColor;ExtBuff[i]=0;}

ObSetArrow(Label[i]+” ARROW”,110,X_Start,Y_Start+20,clr);
}
//—-
return(0);
}
//+——————————————————————+

02/15/2024 at 1:00 PM #228220 quote
Iván González
Moderator

Master
Bonjour
Voici le code pour afficher la couleur des bougies dans les différents timeframes.
Gardez à l’esprit que si vous voulez tout voir, vous devrez travailler sur des graphiques de 1 minute.
Si vous voulez utiliser un graphique en 1 heure, vous devrez cacher les temps inférieurs.
```
//PRC_CANDLE DIRECTION
//version = 0
//15.02.24
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//Timeframe M1 / M5 / M15 / M30 / H1 / H4 / D1 / W1 / MN
//////////////////////////////////////////////////////////
DEFPARAM DRAWONLASTBARONLY = TRUE
timeframe (1mn)
IF OPEN > CLOSE THEN
RT1M = 255
GT1M = 0
BT1M = 0
ELSIF OPEN < CLOSE THEN
RT1M = 0
GT1M = 255
BT1M = 0
ELSE
RT1M = 125
GT1M = 125
BT1M = 125
ENDIF
DRAWTEXT("⏹ 1MN",100, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT1M,GT1M,BT1M)
timeframe (5mn)
IF OPEN > CLOSE THEN
RT5M = 255
GT5M = 0
BT5M = 0
ELSIF OPEN < CLOSE THEN
RT5M = 0
GT5M = 255
BT5M = 0
ELSE
RT5M = 125
GT5M = 125
BT5M = 125
ENDIF
DRAWTEXT("⏹ 5MN",150, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT5M,GT5M,BT5M)
timeframe (15mn)
IF OPEN > CLOSE THEN
RT15M = 255
GT15M = 0
BT15M = 0
ELSIF OPEN < CLOSE THEN
RT15M = 0
GT15M = 255
BT15M = 0
ELSE
RT15M = 125
GT15M = 125
BT15M = 125
ENDIF
DRAWTEXT("⏹ 15MN ",200, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT15M,GT15M,BT15M)
timeframe (30mn)
IF OPEN > CLOSE THEN
RT30M = 255
GT30M = 0
BT30M = 0
ELSIF OPEN < CLOSE THEN
RT30M = 0
GT30M = 255
BT30M = 0
ELSE
RT30M = 125
GT30M = 125
BT30M = 125
ENDIF
DRAWTEXT("⏹ 30MN",250, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT30M,GT30M,BT30M)
timeframe (1H)
IF OPEN > CLOSE THEN
RT1H = 255
GT1H = 0
BT1H = 0
ELSIF OPEN < CLOSE THEN
RT1H = 0
GT1H = 255
BT1H = 0
ELSE
RT1H = 125
GT1H = 125
BT1H = 125
ENDIF
DRAWTEXT("⏹ 1HR",300, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT1H,GT1H,BT1H)
timeframe (4H)
IF OPEN > CLOSE THEN
RT4H = 255
GT4H = 0
BT4H = 0
ELSIF OPEN < CLOSE THEN
RT4H = 0
GT4H = 255
BT4H = 0
ELSE
RT4H = 125
GT4H = 125
BT4H = 125
ENDIF
DRAWTEXT("⏹ 4HR",350, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT4H,GT4H,BT4H)
timeframe (DAILY)
IF OPEN > CLOSE THEN
RT1D = 255
GT1D = 0
BT1D = 0
ELSIF OPEN < CLOSE THEN
RT1D = 0
GT1D = 255
BT1D = 0
ELSE
RT1D = 125
GT1D = 125
BT1D = 125
ENDIF
DRAWTEXT("⏹  01D",400, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT1D,GT1D,BT1D)
timeframe (WEEKLY)
IF OPEN > CLOSE THEN
RT1W = 255
GT1W = 0
BT1W = 0
ELSIF OPEN < CLOSE THEN
RT1W = 0
GT1W = 255
BT1W = 0
ELSE
RT1W = 125
GT1W = 125
BT1W = 125
ENDIF
DRAWTEXT("⏹ 1W",450, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT1W,GT1W,BT1W)
timeframe (MONTHLY)
IF OPEN > CLOSE THEN
RT1MT = 255
GT1MT = 0
BT1MT = 0
ELSIF OPEN < CLOSE THEN
RT1MT = 0
GT1MT = 255
BT1MT = 0
ELSE
RT1MT= 125
GT1MT = 125
BT1MT = 125
ENDIF
DRAWTEXT("⏹ 1M",500, -100)ANCHOR(TOPLEFT,XSHIFT,YSHIFT)coloured(RT1MT,GT1MT,BT1MT)

RETURN
```
02/15/2024 at 2:00 PM #228223 quote

ARLEQUIN49
Participant

Veteran

Buenos dias,

Hermosa, muchas gracias. Todavía no he encontrado cómo ocultar los tiempos verbales inferiores.
